94 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

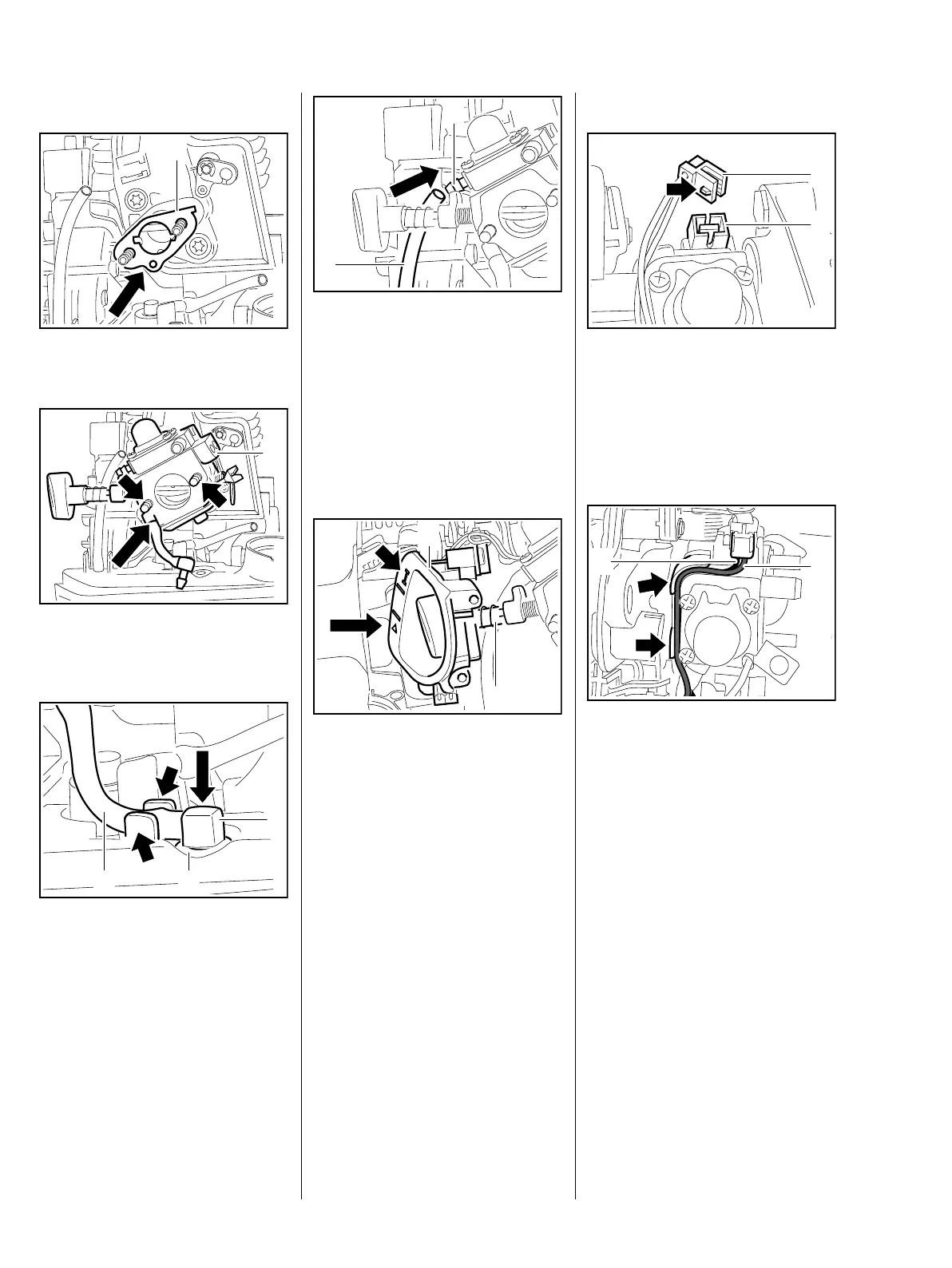

Installation
: Push on new gasket (1)
: Press carburetor (1) over the
studs (arrows)
: Push connector (1) with fuel
hose (2) into the fuel suction
hose (3) so that it between the
ribs (arrows) – fuel hose is
secured
5904RA412 TG
1
5904RA413 TG
1
1
2 3
5904RA414 TG
: Push the new fuel return line (1)
completely onto the
connector (2)
Versions with M-Tronic
Leads and plug connections must
not be damaged.
: Orient bushing (1) with
switchgear so that the
scale (arrow) faces the cylinder
: Guide bushing (1) with
switchgear over the choke
lever (2) and position
– Install filter housing, b 11.2
5904RA415 TG
1
2
5904RA416 TG
1
2
Versions with M-Tronic
: Orient plug (1) so that the
lug (arrow) aligns with the groove
in the mount (2)
– Push plug into the mount as far
as it will go
Do not expose plug to tensile loads,
thus run leads so that they form a
90° loop at the plug.
: Press black lead (1) as far as it
will go into the guides (arrows),
starting at the plug
: Press red lead (2) as far as it will
go into the guides (arrows),
starting at the plug
1
5904RA185 TG
2
1
2
5904RA186 TG
