Stihl FS 50 C

FS 40, FS 40 C, FS 50, FS 50 C
English
17

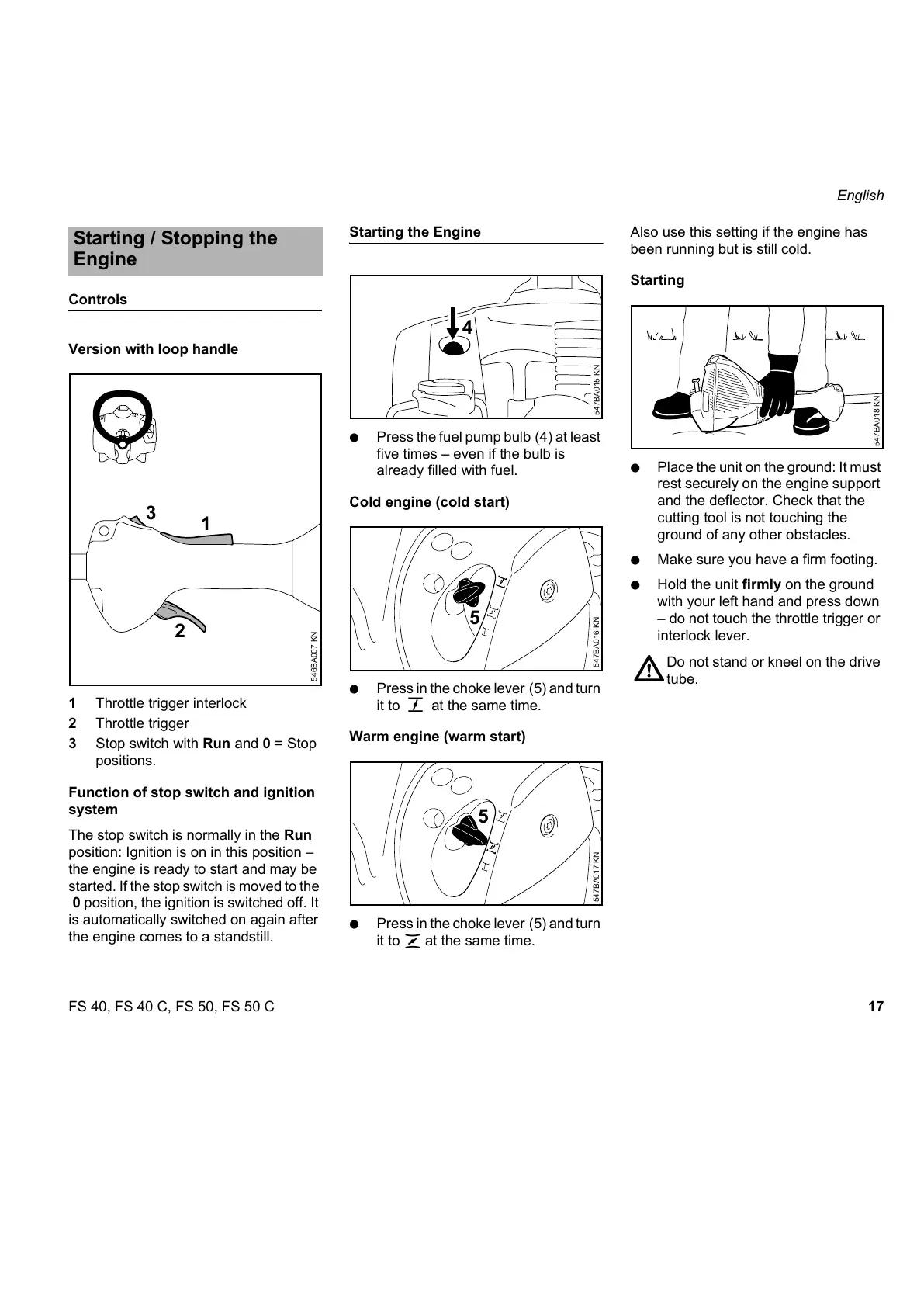

Controls
Version with loop handle
1 Throttle trigger interlock
2 Throttle trigger
3 Stop switch with Run and 0 =Stop
positions.
Function of stop switch and ignition
system
The stop switch is normally in the Run
position: Ignition is on in this position –
the engine is ready to start and may be
started. If the stop switch is moved to the
0 position, the ignition is switched off. It
is automatically switched on again after
the engine comes to a standstill.
Starting the Engine
N Press the fuel pump bulb (4) at least
five times – even if the bulb is
already filled with fuel.
Cold engine (cold start)
N Press in the choke lever (5) and turn
it to g at the same time.
Warm engine (warm start)
N Press in the choke lever (5) and turn
it to < at the same time.
Also use this setting if the engine has
been running but is still cold.
Starting
N Place the unit on the ground: It must
rest securely on the engine support
and the deflector. Check that the
cutting tool is not touching the
ground of any other obstacles.
N Make sure you have a firm footing.
N Hold the unit firmly on the ground
with your left hand and press down
– do not touch the throttle trigger or
interlock lever.
Starting / Stopping the
Engine
546BA007 KN
1
3
2
4
547BA015 KN
5
547BA016 KN
5
547BA017 KN
Do not stand or kneel on the drive
tube.
547BA018 KN
