Stihl FS 50 C User Manual

FS 40, FS 40 C, FS 50, FS 50 C
English
26

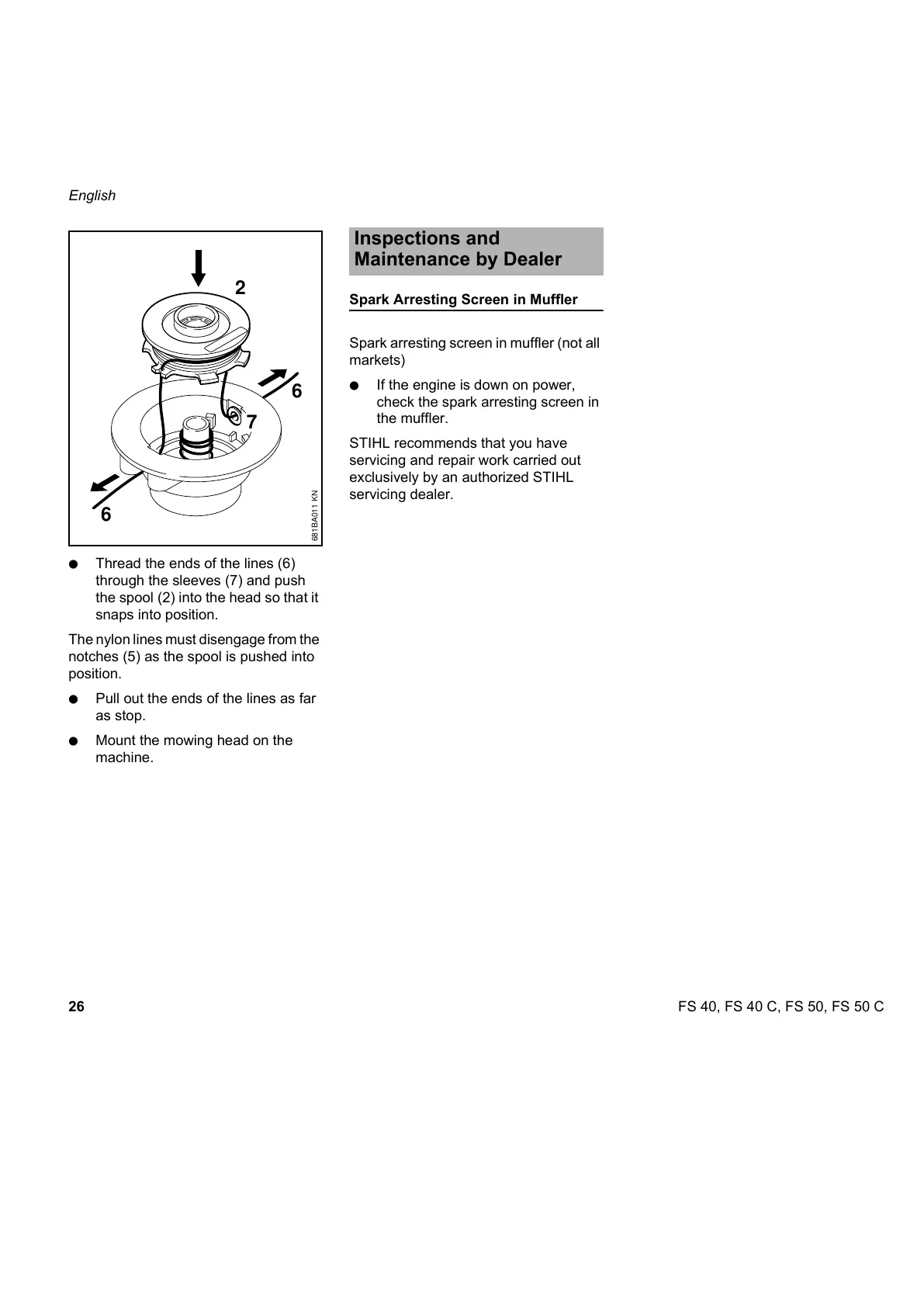

N Thread the ends of the lines (6)
through the sleeves (7) and push
the spool (2) into the head so that it
snaps into position.
The nylon lines must disengage from the
notches (5) as the spool is pushed into
position.
N Pull out the ends of the lines as far
as stop.
N Mount the mowing head on the
machine.
Spark Arresting Screen in Muffler
Spark arresting screen in muffler (not all
markets)
N If the engine is down on power,
check the spark arresting screen in
the muffler.
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer.
7
681BA011 KN
2
6
6
Inspections and
Maintenance by Dealer

Stihl FS 50 C Specifications

General

Engine Displacement	27.2 cc
Power Output	0.8 kW
Engine Type	2-stroke
Shaft Type	Straight
Sound Pressure Level	94 dB(A)
Fuel Tank Capacity	330 ml
Vibration Levels	4.5 m/s² (left) / 4.5 m/s² (right)
