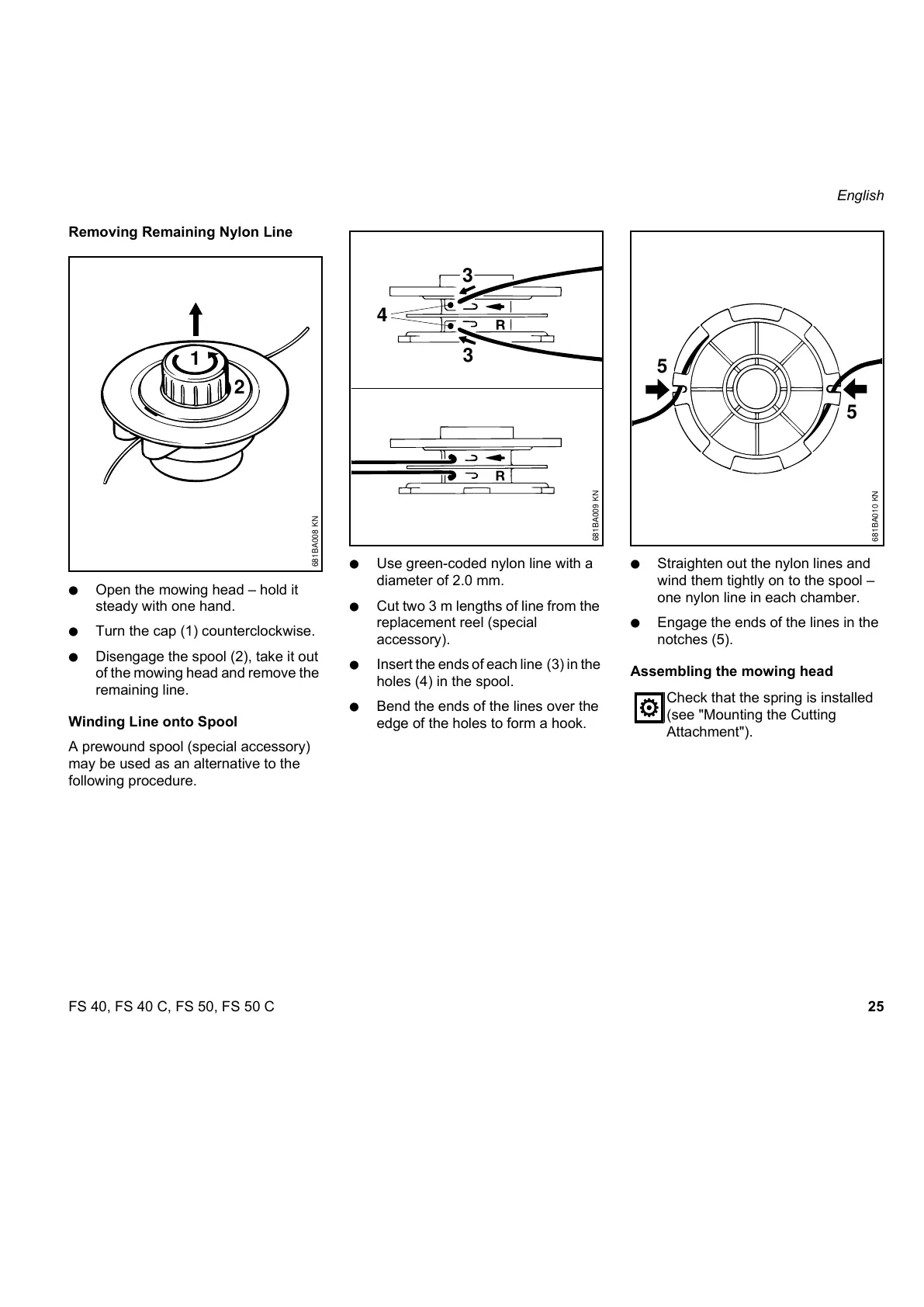

Removing Remaining Nylon Line
N Open the mowing head – hold it
steady with one hand.
N Turn the cap (1) counterclockwise.
N Disengage the spool (2), take it out
of the mowing head and remove the
remaining line.
Winding Line onto Spool
A prewound spool (special accessory)
may be used as an alternative to the
following procedure.
N Use green-coded nylon line with a
diameter of 2.0 mm.
N Cut two 3 m lengths of line from the
replacement reel (special
accessory).
N Insert the ends of each line (3) in the
holes (4) in the spool.
N Bend the ends of the lines over the
edge of the holes to form a hook.
N Straighten out the nylon lines and
wind them tightly on to the spool –
one nylon line in each chamber.
N Engage the ends of the lines in the
notches (5).
Assembling the mowing head
681BA008 KN
1
2
681BA009 KN
4
3
3
Check that the spring is installed
(see "Mounting the Cutting
Attachment").
