Stihl FS 510 C-M User Manual

FS 510 C-M, FS 560 C-M
English
20
Four plugs (9) are supplied with the
shredder deflector.

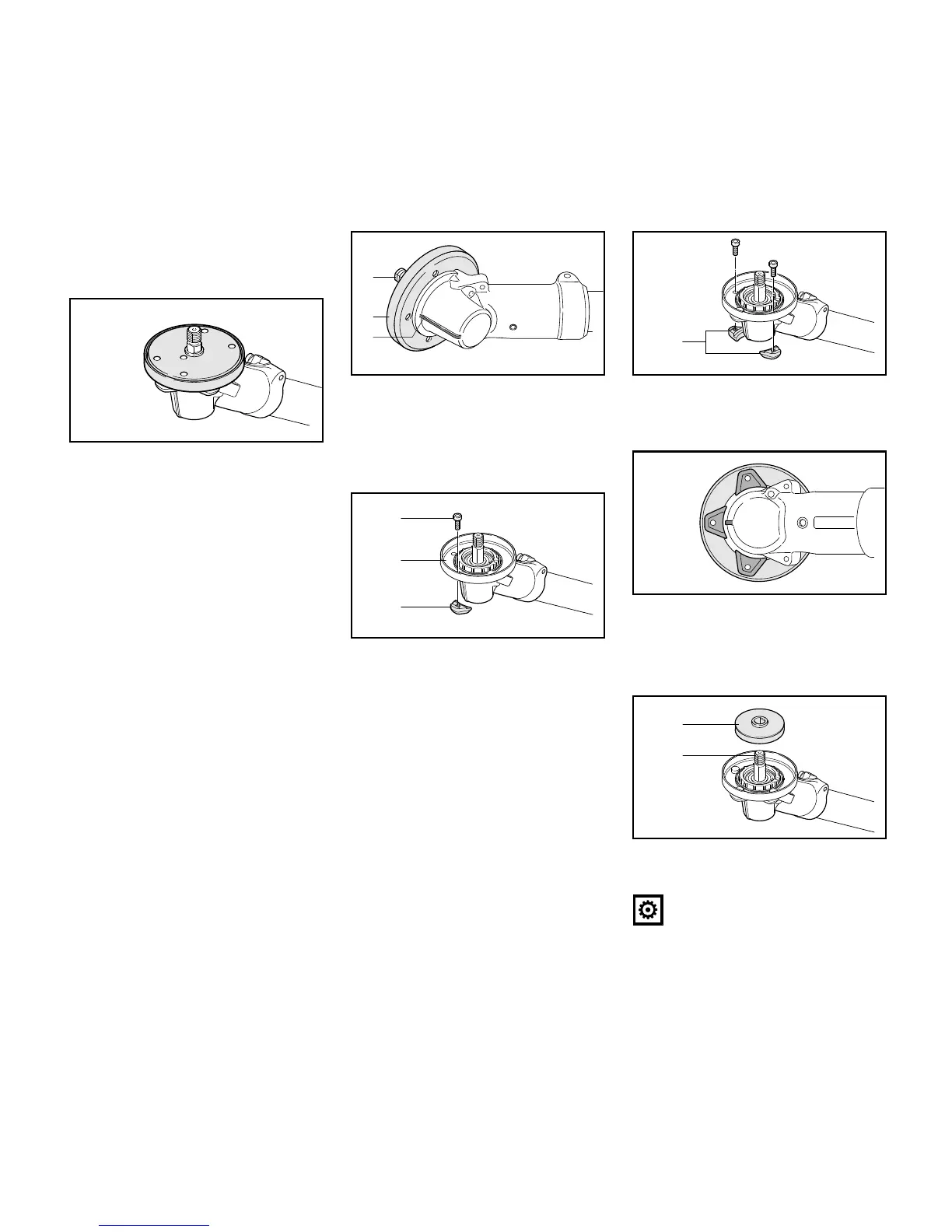

Fitting the grass shield
A grass shield is mounted to the gearbox
when using mowing heads and grass
cutting blades. It greatly reduces the
amount of grass, plant residue, etc. that
wraps itself around the gearbox and
cutting attachment.
Machines which have a mowing head or
grass cutting blade as original
equipment are supplied with a grass
shield. A "grass shield kit" is available as
a special accessory for retrofitting to
machines.
N Install the grass shield before
mounting the deflector – if
necessary, remove the deflector
that is already fitted on the gearbox.
N Hold the gearbox so that the shaft
(1) faces up.
N Place the grass shield (2) on the
gearbox so that the middle hole is in
line with the rib (3).
N Hold one of the three retainers (4)
against the gearbox and grass
shield so that the hole in the retainer
lines up with the middle hole.
N Insert the screw (5) in the retainer
and tighten it down only moderately
so that the grass shield (2) can still
be rotated on the gearbox.
N Fit the other two retainers (4) on the
gearbox and tighten down the
screws only moderately.
N Align the grass shield so that the
center of the front retainer is in line
with the rib on the gearbox.
N Tighten down the screws firmly.
N Fit the 60-mm diameter thrust plate
(5) on the shaft (1).
Only use the 60-mm diameter thrust
plate. The 65-mm diameter thrust plate
is too big and must not be used – see
002BA501 KN
002BA502 KN
1
2
3
002BA503 KN
4
2
5
002BA504 KN
4
002BA512 KN
002BA505 KN
5
1
