FS 510 C-M, FS 560 C-M
English
43

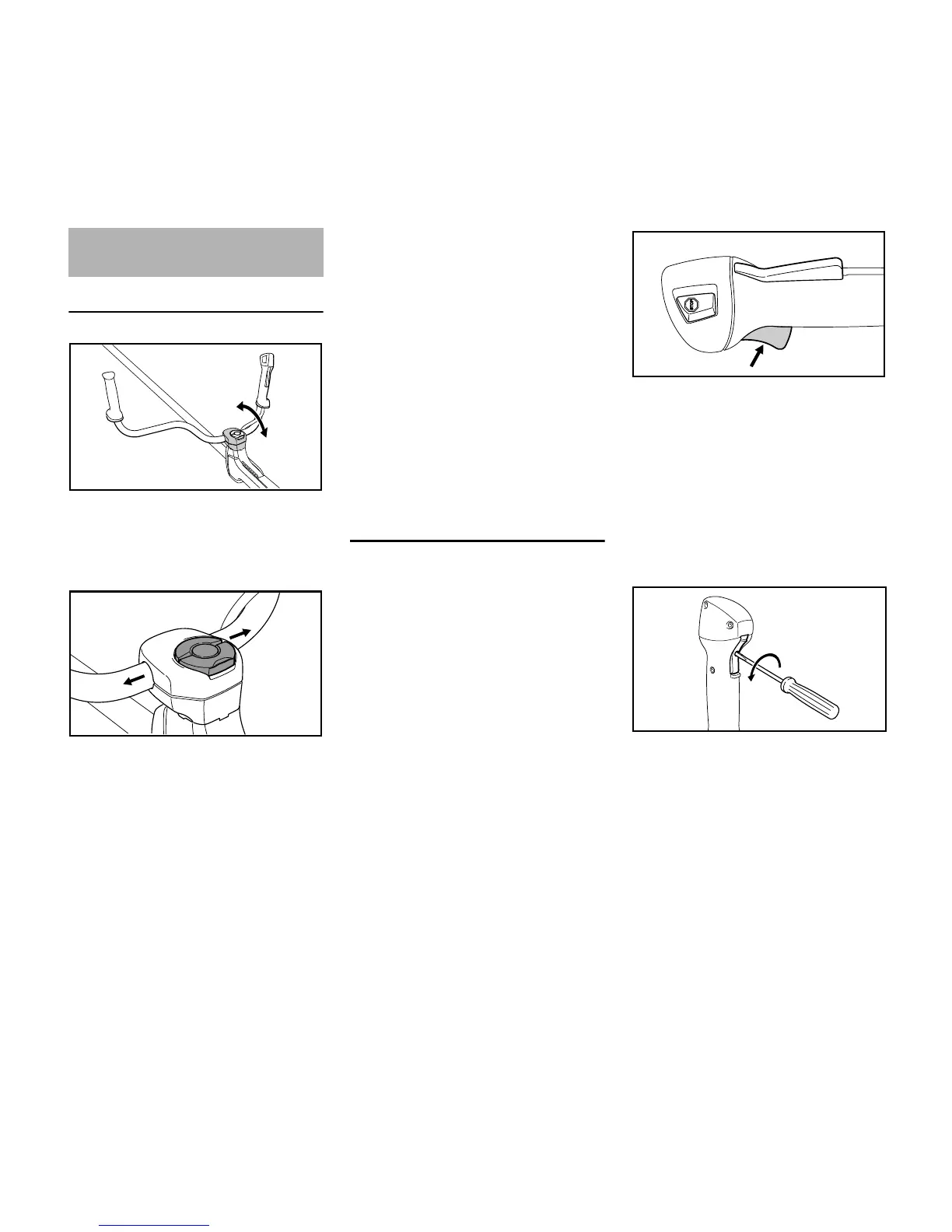

Clamped Area of Handlebar
N Check the freedom of movement of
the handlebar (1) in the clamp
moldings (2) at regular intervals.
Handlebar is difficult to move
N Loosen the wing screw (3) just
enough for the handlebar to be
moved.
N Push the handlebar (1) sideways
out of the clamp.
N Soak a cloth in a clean, non-
flammable cleaning solution – do
not use cleaning agent containing
oil or grease.
N Thoroughly clean the clamp area of
the handlebar with the cloth and
cleaning solution.
N Line up the handlebar and secure it
in position with the wing screw.
Handlebar cannot be clamped firmly in
position
N Release handlebar in clamp as
described under "Handlebar is
difficult to move".
N Degrease clamp area on handlebar
and in clamp moldings.
N Line up the handlebar and secure it
in position with the wing screw.
Adjusting the Throttle Cable
The throttle cable can be adjusted only
when the machine is properly
assembled. The control handle must be
in the normal operating position.
If the following adjustments do not
produce the required result, have your
servicing dealer repair the machine.
STIHL recommends a STIHL servicing
dealer.
Check adjustment of throttle cable.
Error: Engine speed increases when
only the throttle trigger is depressed.
N Starting the Engine
N Depress the throttle trigger (2) – do
not press down the throttle trigger
lockout (1).
If the engine speed increases or if the
cutting attachment rotates, the throttle
cable has to be adjusted.
N Stopping the Engine
Adjusting the Throttle Cable
N Depress the throttle trigger lockout
(1) and the throttle trigger (2) as far
as stop and hold them in that
position.
Apply only sufficient pressure to hold the
levers against their stops.
N Rotate screw in throttle trigger 1/2
turn counterclockwise.
N Release the throttle trigger and
throttle trigger lockout.
Inspection and Maintenance
by User
