FS 510 C-M, FS 560 C-M
English
49
Definitions
1 Fuel Filler Cap
For closing the fuel tank.
2 Starter Grip
The grip of the pull starter, for
starting the engine.
3Shutter
With summer and winter positions.
Carburetor is heated in winter
position.
4 Spark Plug Boot
Connects the spark plug with the
ignition lead.
5 Muffler with Spark Arresting Screen
Muffler reduces exhaust noises and
diverts exhaust gases away from
operator.
Spark arresting screen is designed
to reduce the risk of fire.
6 Guard Plate
Protects the fuel tank.
7 Throttle Trigger
Controls the speed of the engine.
8 Momentary Stop Switch
Switches the engine's ignition off
and stops the engine.
9 Throttle Trigger Lockout
Must be depressed before the
throttle trigger can be activated.
10 Handlebar
For holding and controlling the unit
with the hand during operation.
11 Handle Support
Connects the shaft and bike handle.
12 Clamp Screw
Locks handlebar in selected
position.
13 Carrying Strip
The device to connect the clearing
saw to the harness.
14 Wear Guard
Protects the housing of the
antivibration-system from wear.
15 Choke Lever
Eases engine starting by enriching
mixture.
16 Fuel Pump
Provides additional fuel feed for a
cold start.
17 Filter Cover
Encloses and protects the air filter.
18 Fuel Tank
For fuel and oil mixture.
19 Spacer
Designed to reduce the risk of burns
and fire.

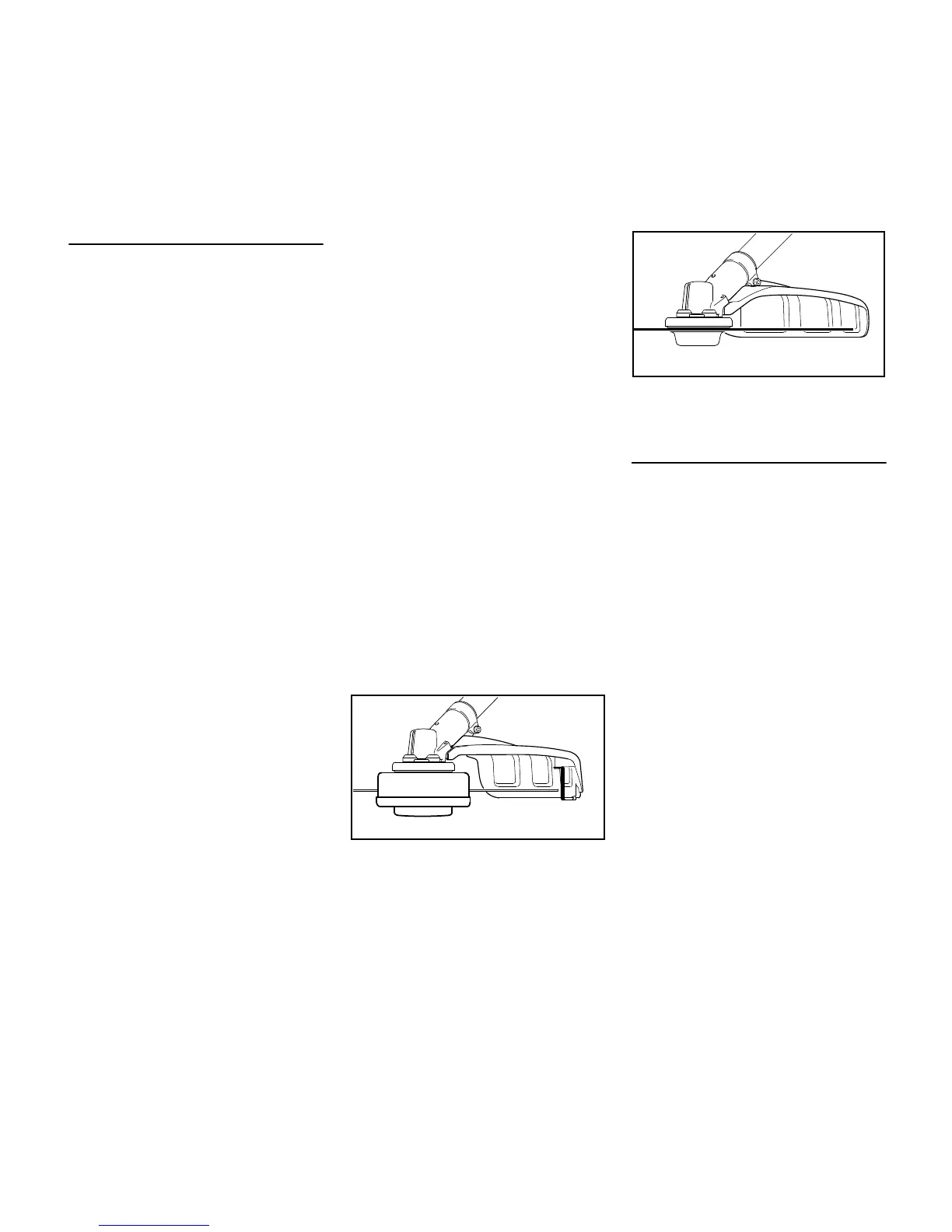

1 Mowing Head
2 Deflector for Mowing Heads
3 Line Limiting Blade
4 Metal Mowing Tool
5 Deflector for Metal Mowing Tools
Definitions
1 Mowing Head
The cutting attachment, i. e.
mowing head, for different
purposes.
2 Deflector for Mowing Heads
Designed to reduce the risk of injury
from foreign objects flung
backwards toward the operator by
the cutting attachment and from
contact with the cutting attachment.
3 Line Limiting blade
Metal blade at the deflector in order
to keep the line of the mowing head
at the proper length.
4 Metal Mowing Tool
The cutting attachment, i. e. blade,
made from metal for different
purposes.
5 Deflector for Metal Mowing Tools
Designed to reduce the risk of injury
from foreign objects flung
backwards toward the operator by
the cutting attachment and from
contact with the cutting attachment.
