22

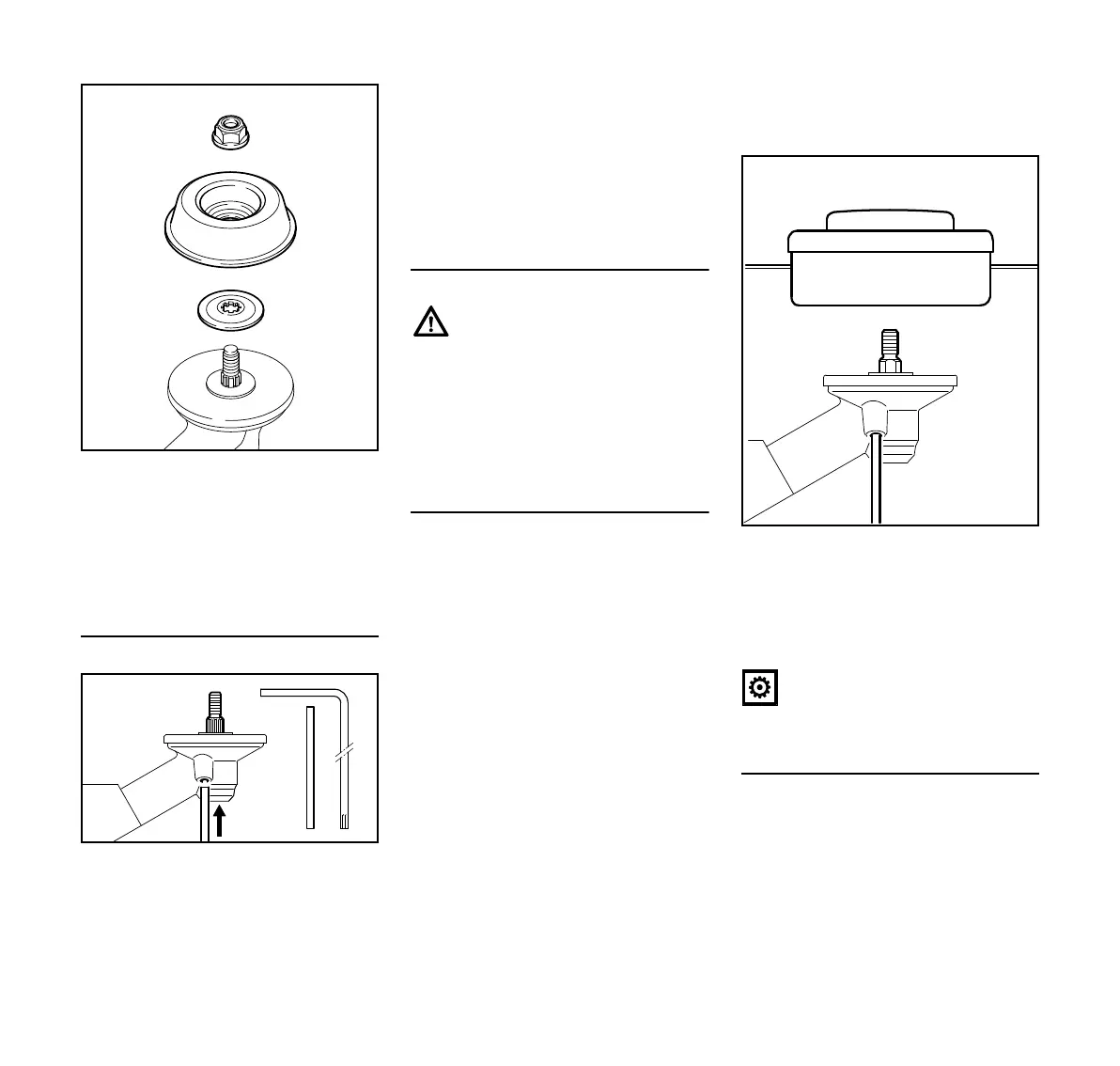

The nut (3), rider plate (4) and thrust
washer (5) are required to secure some
mowing heads.
These parts are included in a kit
supplied with the machine and are also
available as special accessories.
Block the drive shaft.
The output shaft (2) must be blocked
with the stop pin (7) or screwdriver (7) to
mount or remove cutting tools. These
parts come standard with the machine or
are available as special accessories.
N Insert the stop pin (7) or
screwdriver (7) in the hole (8) in the
gearbox as far as stop – and apply
slight pressure.
N Rotate nut or cutting tool on the
shaft until the stop pin slips into
position and blocks the shaft.
Mounting the cutting attachment
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
N Go to "Mounting the Mowing Head"
or "Mounting the Metal Cutting
Attachment".
Mounting the mowing head
Keep the instruction sheet for the
mowing head in a safe place.
STIHL SuperCut 20-2,
STIHL AutoCut 25-2,
STIHL AutoCut C 25-2,
STIHL TrimCut 31-2,
STIHL FixCut 25-2,
STIHL PolyCut 20-3
N Screw the mowing head
counterclockwise on to the shaft (1)
as far as stop.
N Block the shaft.
N Tighten down the mowing head.
Remove the tool used to block the shaft.
Removing the mowing head
N Block the shaft.
STIHL SuperCut 20-2,
STIHL AutoCut 25-2,
STIHL AutoCut C 25-2,
002BA267 KN
3
4
5
7
8
2
002BA166 KN
7
1
002BA081 KN
