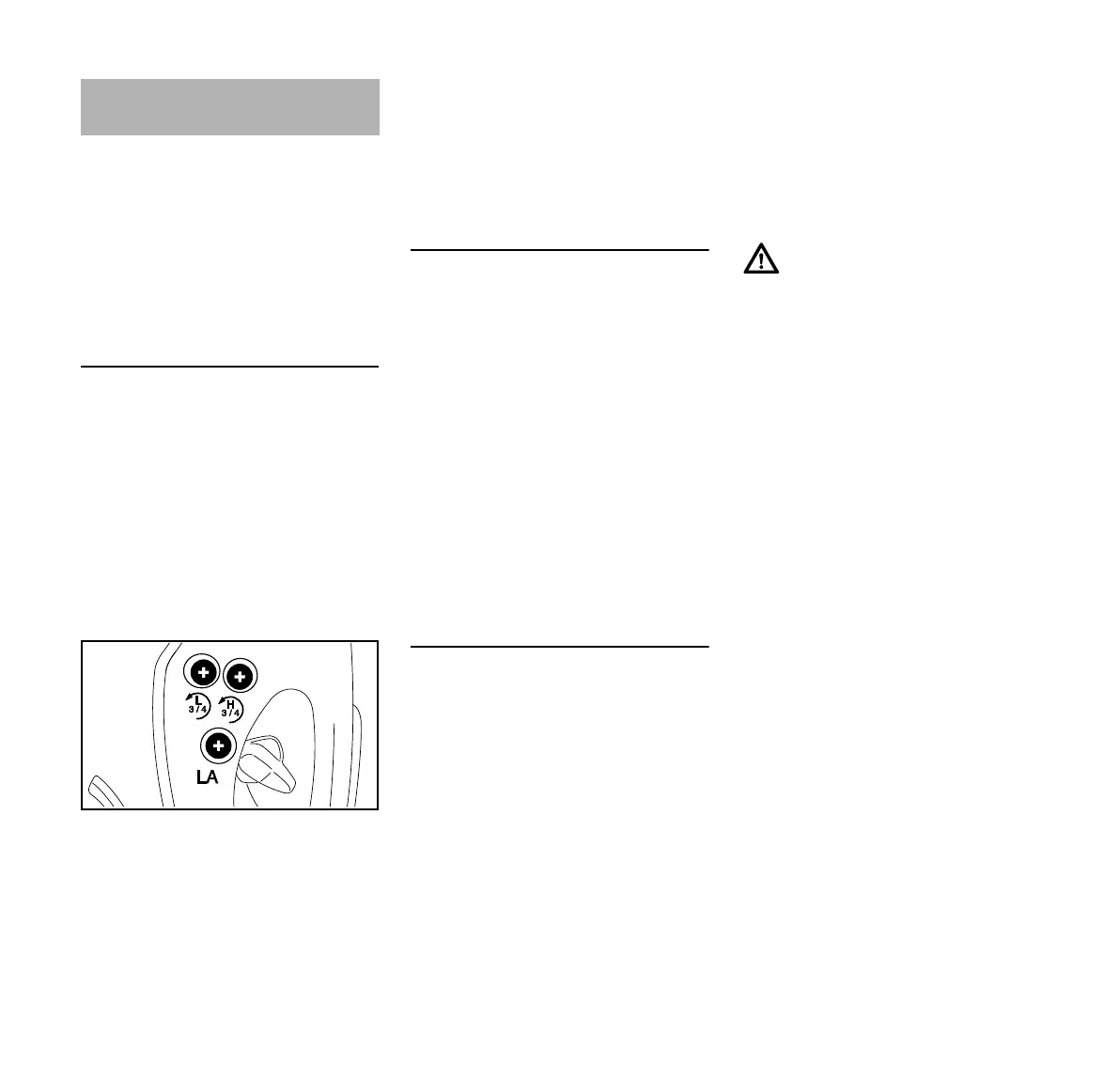

The carburetor comes from the factory
with a standard setting.
This setting provides an optimum fuel-air
mixture under most operating
conditions.
With this carburetor it is only possible to
make corrections with the adjusting
screws within fine limits.
Standard Setting
N Shut odd the engine.
N Mount a cutting tool – we
recommend you use a mowing
head.
N Check the air filter and replace the
element if necessary.
N Have the spark arresting screen
(not all markets) checked – see
“Inspection and Maintenance by
Dealer"
N Turn the high speed screw (H)
counterclockwise as far as stop
(max. 3/4 turn possible).
N Turn the low speed screw (L)
counterclockwise as far as stop
(max. 3/4 turn possible).
N Start and warm up the engine if
necessary.
N Adjust idle speed with the idle speed
screw (LA) so that the cutting tools
does not turn.
Fine Tuning for Operation in Mountains
or at Sea Level
A slight correction of the setting may be
necessary if engine power is not
satisfactory when operating at high
altitude or at sea level.
N Warm up the engine.
At high altitude
N Turn high speed screw (H)
clockwise (leaner) – no further than
stop.
At sea level
N Turn high speed screw (H)
counterclockwise (richer) – no
further than stop.
Adjusting Idle Speed
N Warm up the engine.
Engine stops while idling
N Turn the idle speed screw (LA)
slowly clockwise until the engine
runs smoothly – the cutting
attachment must not turn.
Cutting attachment rotates when engine
is idling
N Turn the idle speed screw (LA)
counterclockwise until the tool stops
moving and then turn the screw
another full turn in the same
direction.
If the cutting tool continues to rotate
when the engine is idling, have your
machine checked and repaired by your
servicing dealer.
Erratic idling behavior, engine stops
even though setting of LA-screw has
been corrected, poor acceleration
Idle setting is too lean
N Turn the low speed screw (L)
counterclockwise, no further than
stop, until the engine runs and
accelerates smoothly.
Erratic idling behavior, engine speed
drops when swinging the machine
Idle setting is too rich
N Turn the low speed screw (L)
clockwise (1/8 of a turn or 45° at a
time) until the engine runs smoothly
and accelerates well.
It is usually necessary to change the
setting of the idle speed screw (LA) after
corrections to the low speed screw (L).
Adjusting the Carburetor
547BA024 KN
