62 Series 4144 Components FC, FS, KM

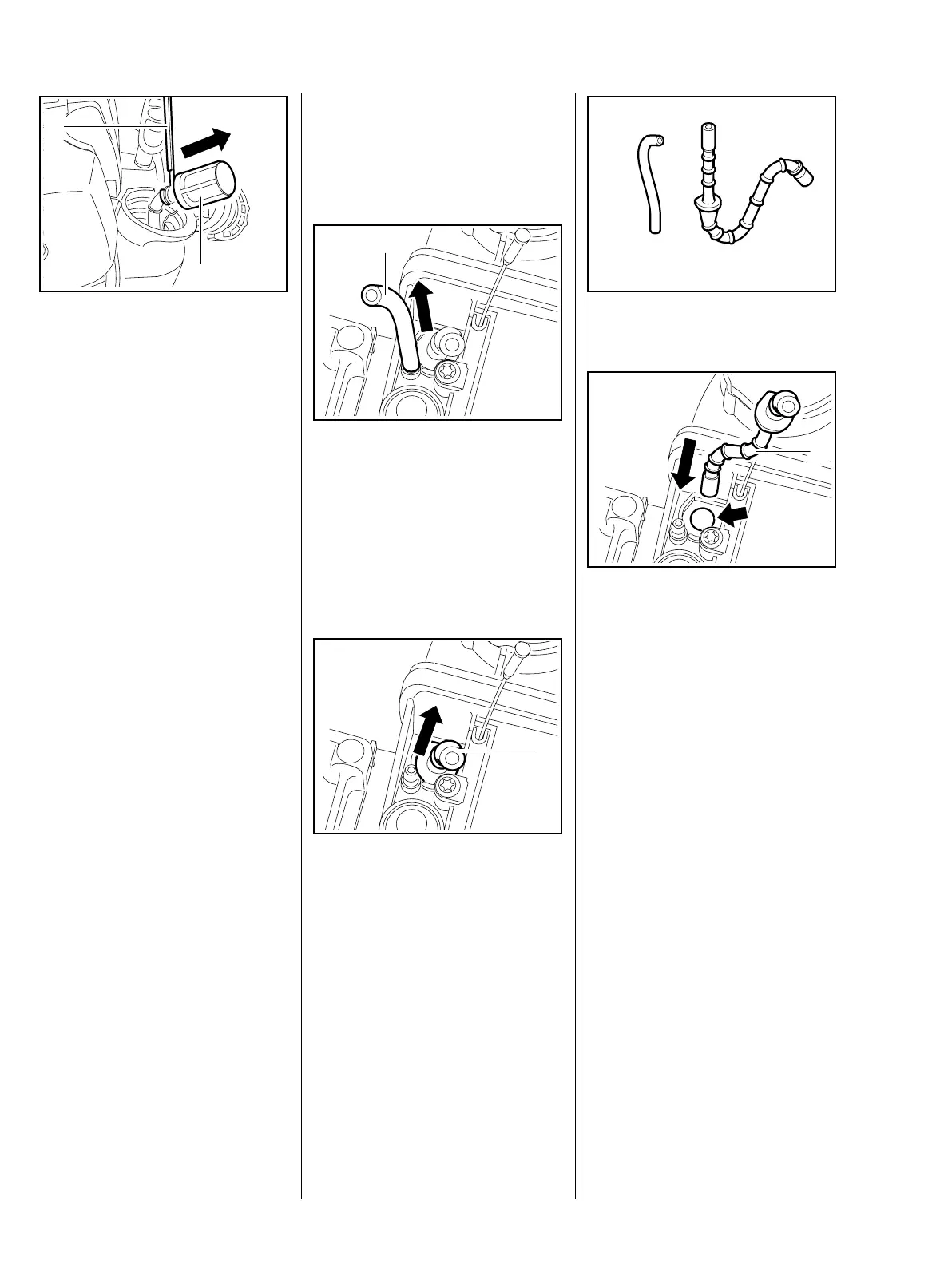

– Open the tank cap.
: Use hook (2) 5910 893 8800 to
remove the pickup body (1) from
the fuel tank.
Do not overstretch the fuel hose.
– Check the pickup body (1) and
replace if necessary
– Reassemble in the reverse
sequence.
8.9.2 Fuel Hoses
In order to guarantee tightness of
the fuel system, the fuel hoses must
be pushed firmly and fully on to the
stubs – always install new fuel
hoses after every repair.
To avoid damage to the fuel hoses
and stubs, fit the hoses by hand.
Do not use pointed or sharp-edged
tools and do not cut open the fuel
hoses at the stubs because they
could be damaged in this way.
1
545RA219 TG
2
To aid assembly, use STIHL press
fluid at the points recommended. Do
not use any other oil, fuel, grease or
press fluids since they may damage
the fuel hoses.
– Remove the pickup body,
b 8.9.1
– Remove the spacer flange,
b 8.7
: Pull the fuel return hose (1) off
the stub.
: Pull the fuel suction hose (1) out
of its seat.
1
545RA220 TG
1
545RA221 TG
– Always install new fuel hoses.
: Push the new fuel suction hose
(1) through the hole (arrow) in the
fuel tank.
– Coat the grommet on the new
fuel suction hose with STIHL
press fluid, b 11
545RA222 TG
1
545RA223 TG
