Stihl FS 56 - 9.1.1 Disassembling (KM 56)

66 Series 4144 Components FC, FS, KM
Machines with bike handle
: Tighten down the screws
(arrows) firmly.
– Install the control handle, b 7.4
– Check instruction label on drive
tube for damage and legibility,
replace if necessary.
– Tightening torques, b 3.4

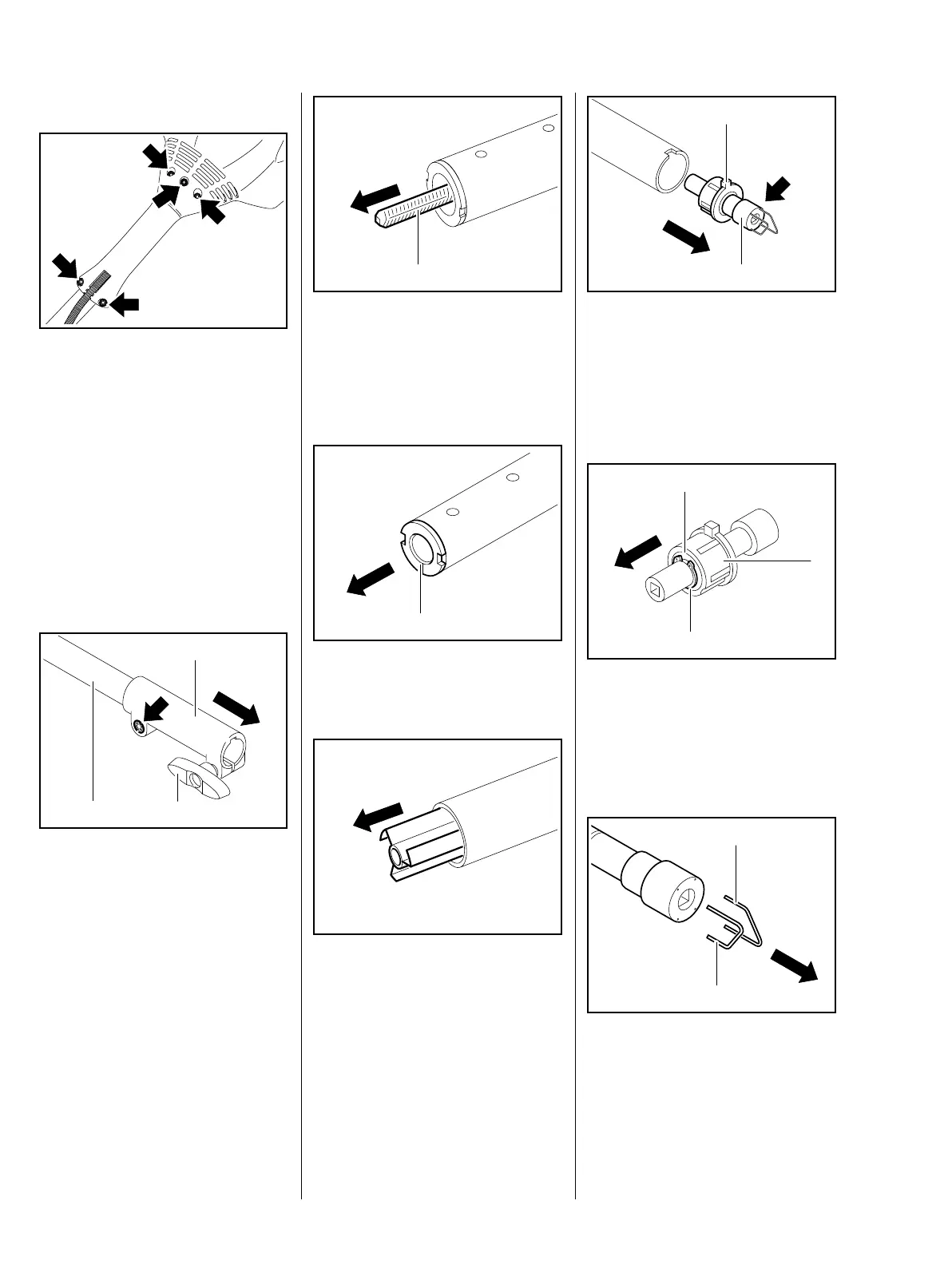

9.1.1 Disassembling (KM 56)
– Remove the drive tube, b 9.1
– Remove the loop handle if
necessary, b 9.1.7
– Remove the carrying ring if
necessary.
– Loosen the wing screw (1) and
pull out the attachment.
: Loosen the screw (arrow).
– Pull the coupling sleeve (2) off
the drive tube (3).
545RA007 TG
1
3
2
545RA232 TG
: Pull the drive shaft (1) out of the
drive tube.
If the drive shaft has turned blue,
install a new one.
: Pry the plug (1) out of the drive
tube.
: Pull the flexible liner out of the
drive tube.
1
545RA234 TG
1
545RA233 TG545RA235 TG
: Grip the collar (arrow) and pull
the complete driver (1) out of the
drive tube.
Do not apply tool to plastic lug (2)
since it might break.
: Remove the E-clip (1).
– Remove the washer (2) and
bushing ((3) and the second
washer.
: Pull out the wire clips (1).
– Check the individual parts and
replace if necessary.
1
545RA236 TG
2
3
1
545RA237 TG
2
1
545RA238 TG
1
