26
English / USA
FS 80, FS 80 R, FS 85, FS 85 R
: For position of carrying eye
1)
see
"Parts and Controls"

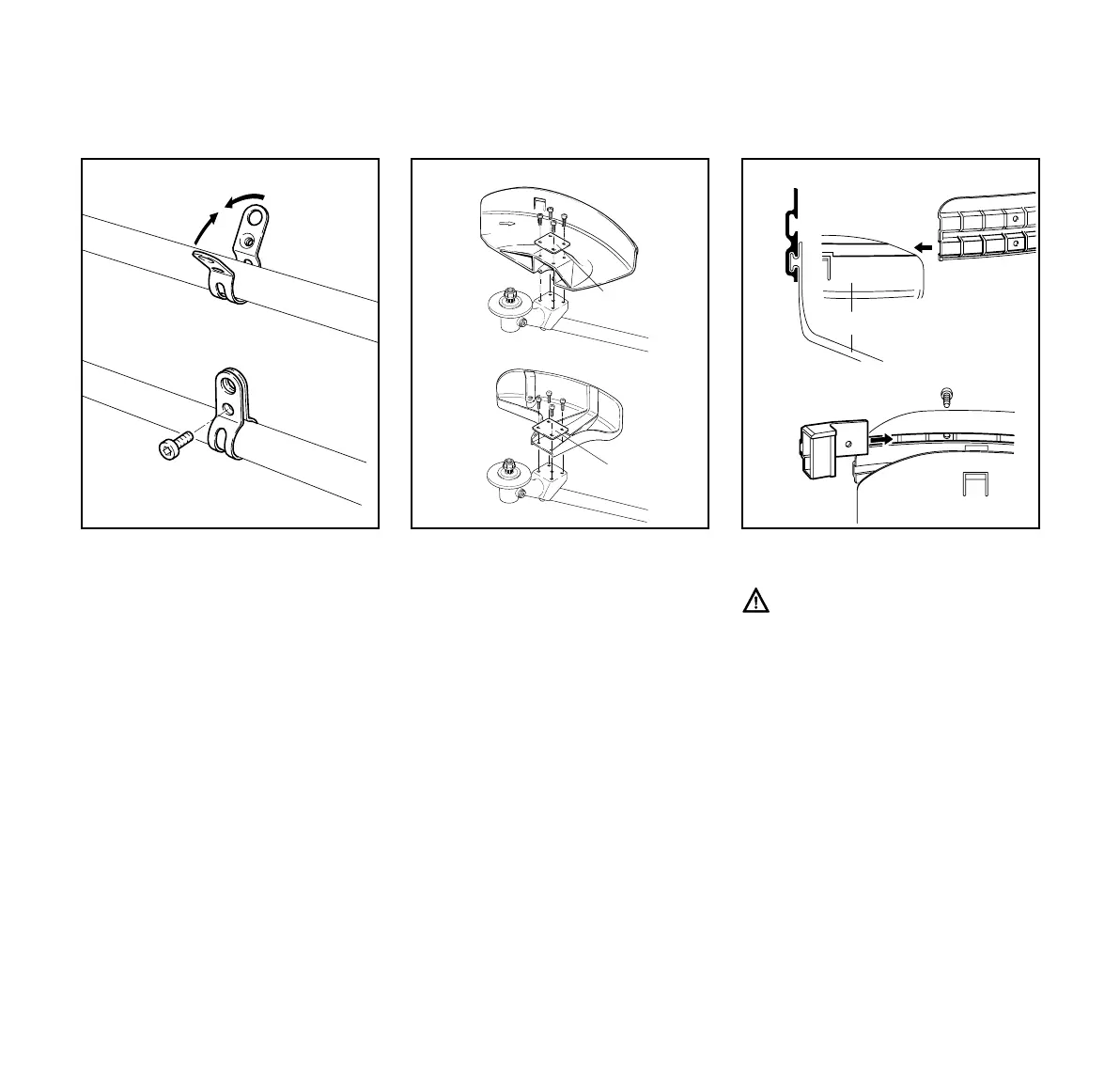

: Place the clamp (1) with the
tapped hole on the left-hand side
of the drive tube.
: Squeeze the two ends of the clamp
together and hold in that position.
: Insert M 6 x 14 screw (2).
: Line up the carrying eye.
: Tighten down the screw firmly.
1) Included as standard or available as
special accessory
Mounting the deflector
1 = Deflector approved for all cutting
tools
2 = Deflector approved for use with
mowing heads only
: Place the deflector on the
gearhead.
: Fit the plate (3) and line it up.
: Insert M 5 x 18 screws and tighten
down firmly.
Fitting skirt and blade
These parts must be fitted to the
deflector (1) when you use a
mowing head:
: Slide the lower guide slot of the
skirt (4) onto the deflector (1) – it
must snap into position.
: Push the blade (5) into the upper
guide slot on the skirt and line it up
with the first hole.
: Fit the screw and tighten it down
firmly.
Fitting the Carrying Eye
002BA142 KN
1
2
1
Mounting the Deflector
002BA102 KN
1
3
2
3
4
1
5
4
002BA103 KN
