27FS 80, FS 80 R, FS 85, FS 85 R
English / USA

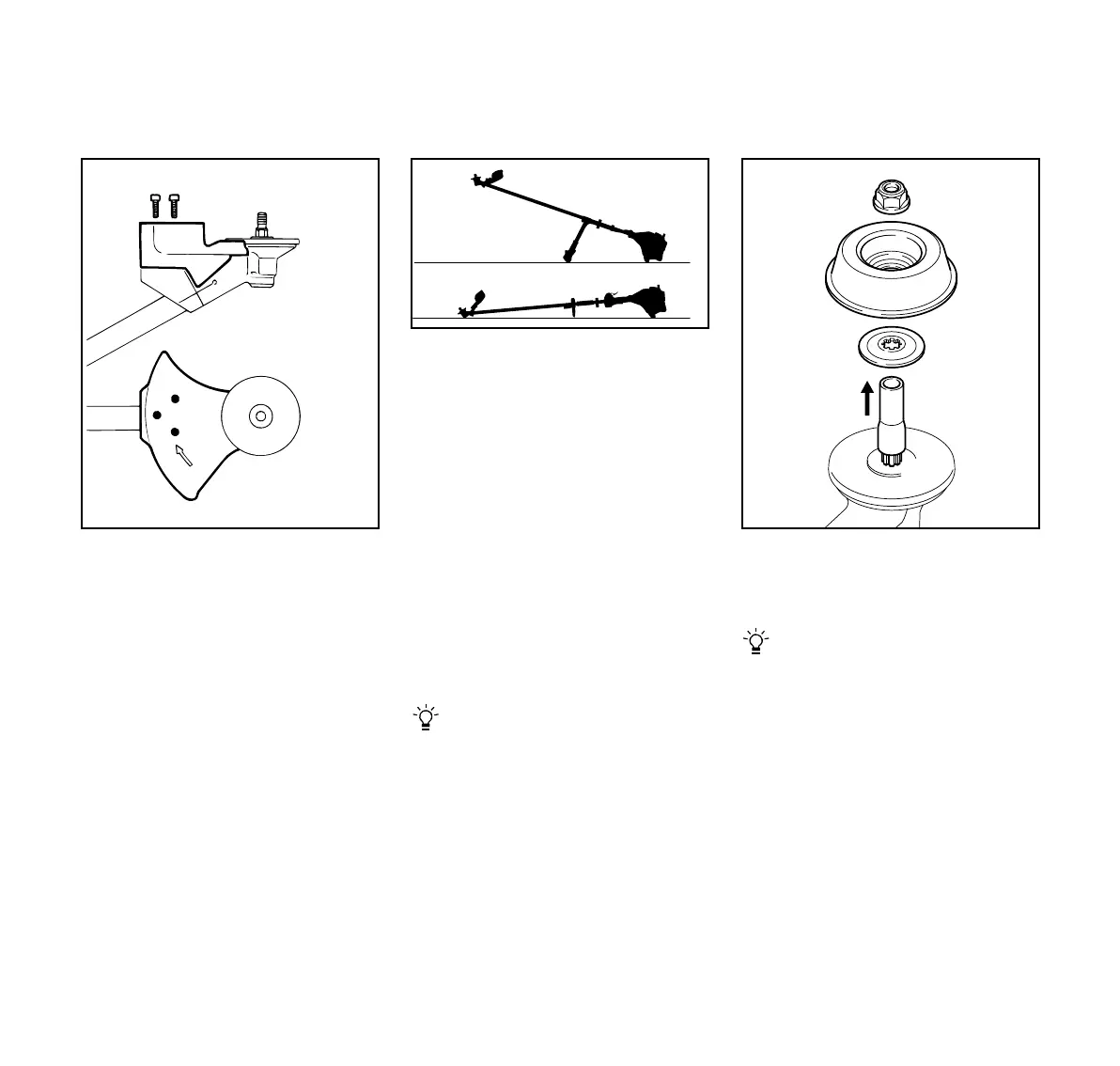

Mounting the stop
: Always fit stop (6) when you use a
circular saw blade.
: Place the stop on the gearhead
flange.
: Fit the three M 5 x 18 screws (7) and
tighten down securely.
Preparations
: Lay your brushcutter on its back
with the gearhead facing upward.
Mounting Hardware
for Cutting Tools
The mounting hardware supplied
depends on the cutting tool that comes
as original equipment with the new
brushcutter.
Mounting hardware is not packed
with the machine
Only mowing heads may be
mounted.
: Pull the hose (1) (protector for
shipping) off the shaft (2).
: Go to "Mounting the Mowing Head".
If you want to mount a metal cutting
tool in place of a mowing head, you
will need the following additional
parts: Nut (3), rider plate (4) and
thrust washer (5) (special
accessories).
7 7
7
6
002BA028 KN
Mounting the Cutting Tools
002BA104 KN
2
002BA164 KN
1
3
4
5
