Stihl FS 90 User Manual

36
English / USA
FS 90, FS 90 R

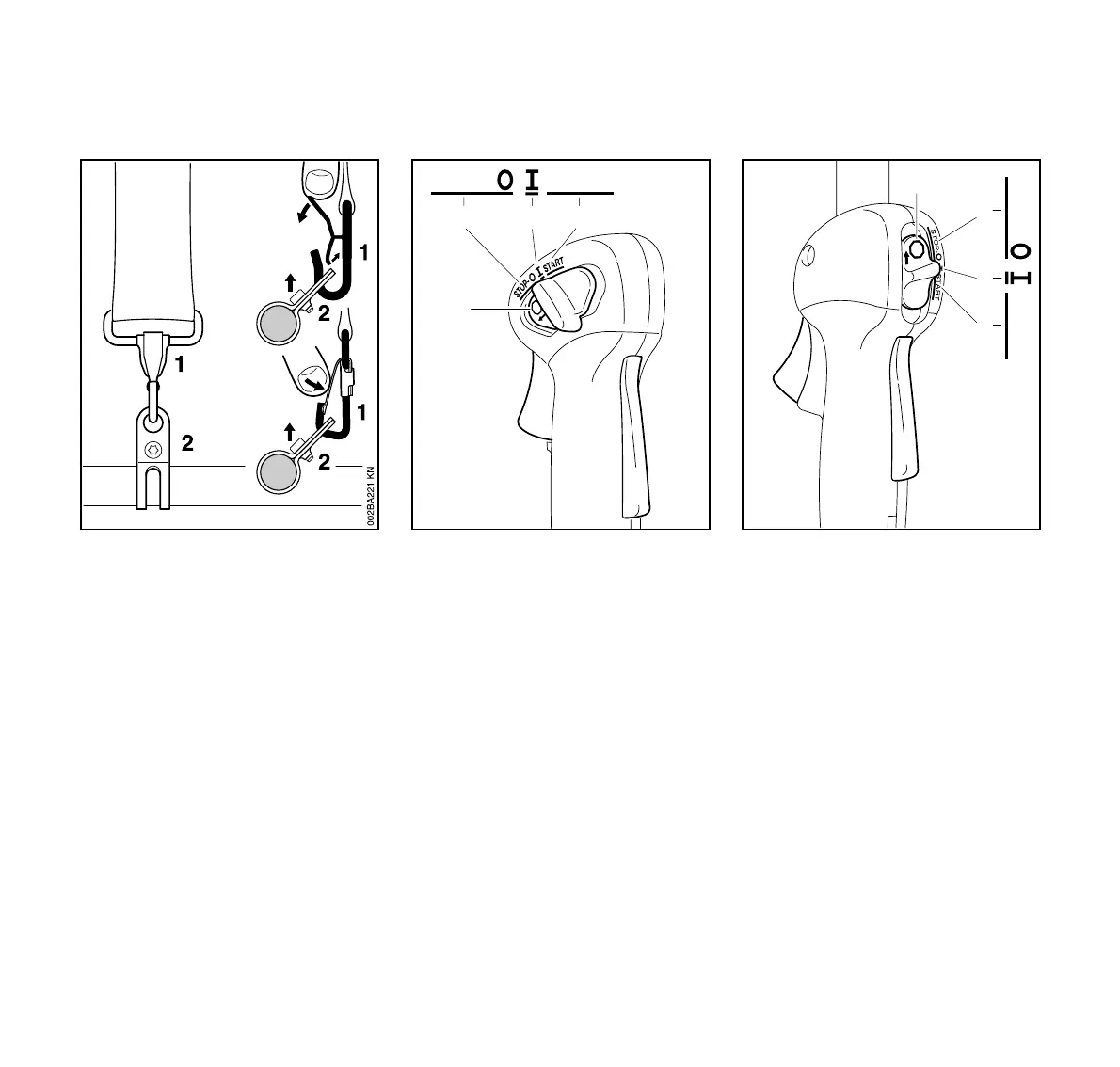

Detaching the Unit from the
Shoulder Strap
: Press the bar on the spring hook (1)
and pull the carrying ring (2) out of
the hook.
Controls
Control handle on bike handle
Throttle trigger interlock (1)
Throttle trigger (2)
Slide control (3)
Control handle on drive tube
Throttle trigger interlock (1)
Throttle trigger (2)
Slide control (3)
Positions of slide control
STOP-O (4) – engine off – the ignition is
switched off
# – normal run position (5) – the engine
is running or can start
START (6) - the ignition is switched on,
the engine can start
Starting / Stopping
the Engine
3
STOP
56
4
7
002BA182 KN
1
2
START
STOP-
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1

Stihl FS 90 Specifications

General

Engine Displacement	28.4 cc
Fuel Type	Gasoline
Handle Type	Loop handle
Shaft Type	Straight
Fuel Capacity	0.53 l
Weight	5.8 kg
Cutting Attachment	Autocut 25-2
Engine Power	0.95 kW (1.27 bhp)
