Stihl FSE 41 - Adjusting Angle of Shaft

FSE 31, FSE 41
English
12

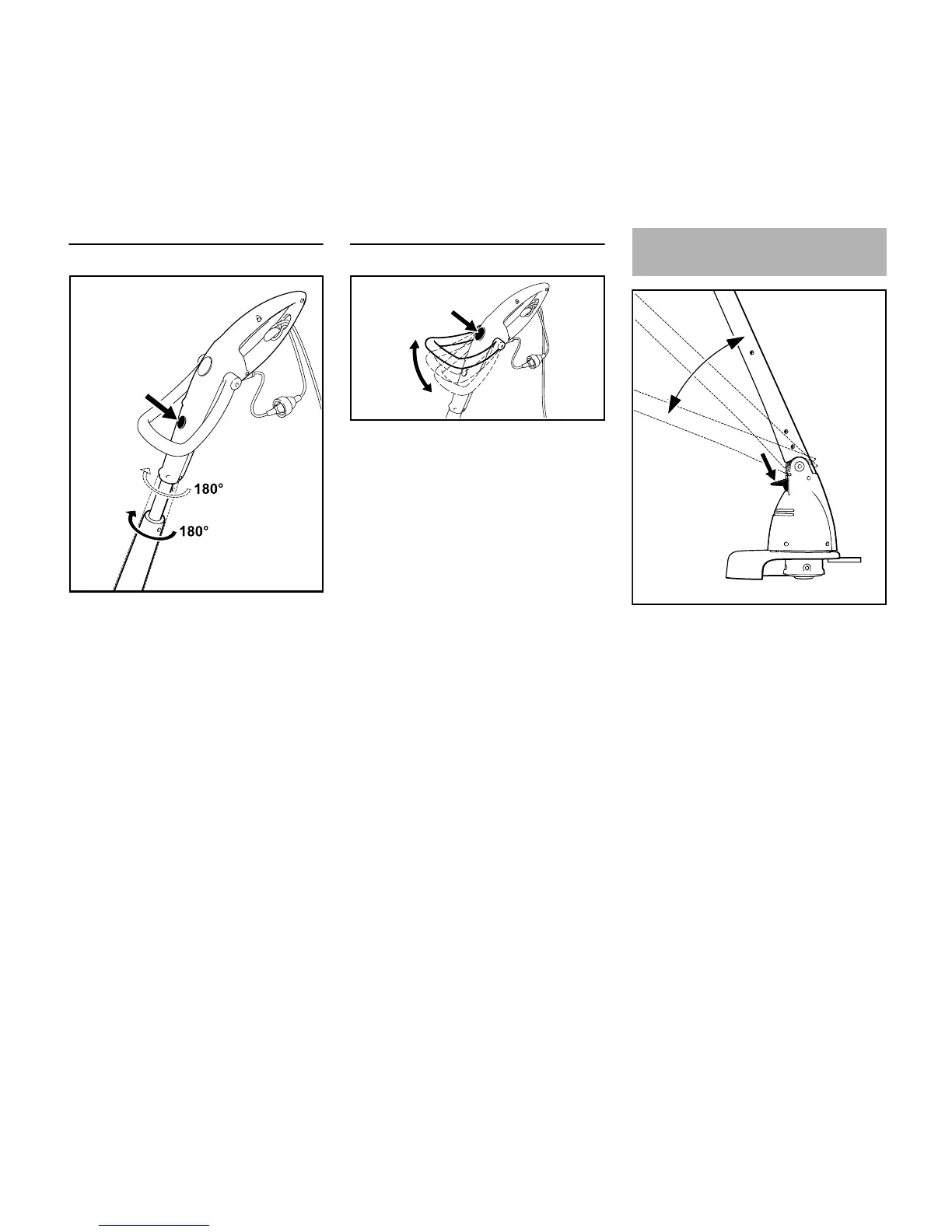

Adjusting Control Handle (FSE 41 only)
N Only possible in positions A and C.
N Press in the lock button (1).
N Rotate the control handle (2) 180°
on the shaft (3) and engage it in one
of the 2 positions: 0° or 180°
Adjusting the Assist Handle
N Press in the lock button (4).
N Adjust angle of the assist handle (5)
and engage it one of 3 positions: A,
B or C
N Press down the locking lever (1).
N Adjust angle of the shaft (2) and
engage it one of 3 positions: A, B
or C
