FT 250
English
14

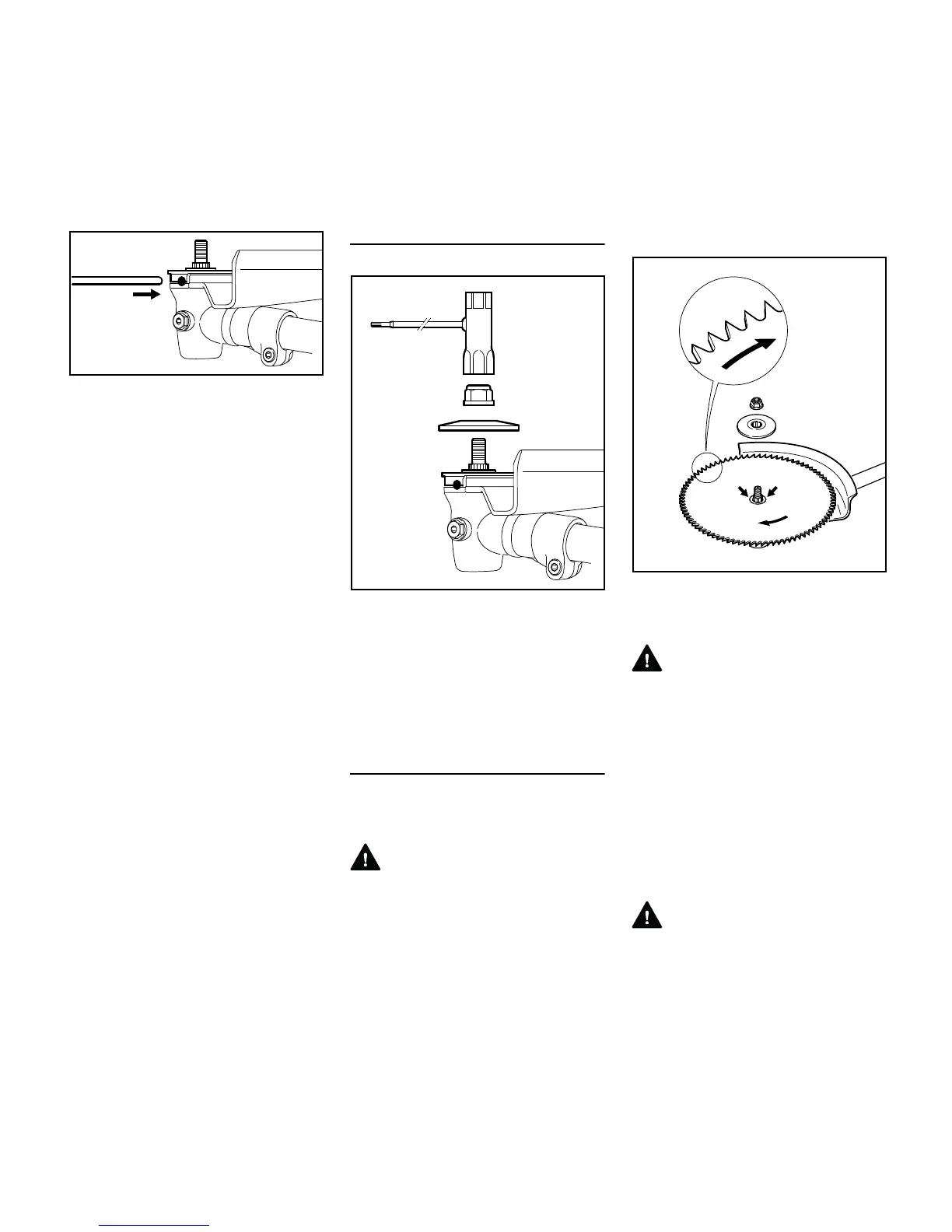

N Insert the stop pin (1) in the bore (2)
in the gearhead as far as stop, apply
slight pressure.
N Rotate the output shaft (3) until the
stop pin slips into position.
N Push it home as far as stop.
Removing the Mounting Hardware
N Block the shaft.
N Use the combination wrench (4) to
loosen and remove the nut (5)
clockwise (left-hand thread).
N Take the thrust washer (6) off the
shaft (3). Do not remove the thrust
plate (7).
Mounting Metal Cutting Attachment
Keep the leaflet and packaging of the
metal cutting attachment in a safe place.
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
Mount only one metal cutting
attachment.
Mounting the cutting attachment
N Place the circular saw blade (8) in
position – check direction of saw
teeth (magnified view).
WARNING
Collar of thrust plate (arrows) must
engage the cutting attachment's
mounting hole.
Securing the cutting attachment
N Fit the thrust washer (6) – convex
side must face up.
N Block the shaft.
N Screw on the nut (5)
counterclockwise and tighten it
down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
