HS 85

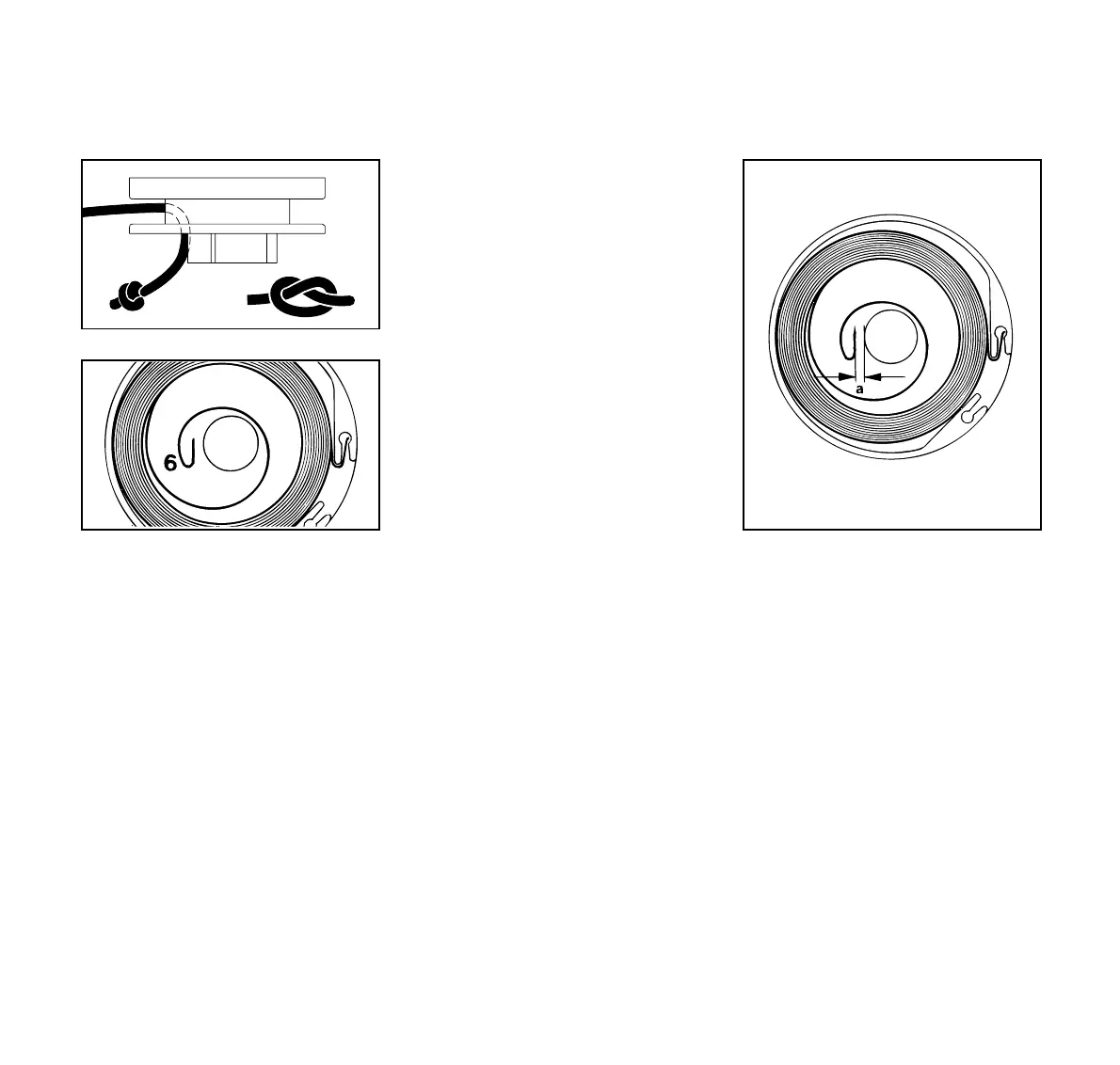

: Pull the rope through the rotor and
secure it with a simple overhand
knot.
: Lubricate rope rotor bore with
non-resinous oil.
: Push rotor onto the starter post –
turn back and forth until loop (6) of
rewind spring engages.
: Insert screw and tighten down
securely.
Go to “Tensioning rewind spring”.
Replacing a broken rewind spring
: Lubricate the new spring with a few
drops of non-resinous oil, do not
open the wire retainer
: Remove the rope rotor.
: Remove parts of old spring.
: Fit the new spring –
position outer spring loop in the
recess –
the wire retainer slips off in this
process.
If the spring has popped out:
Refit it in the counterclockwise
direction, starting outside and
working inward.
: Install the rope rotor.
: Check dimension "a" on inner
spring loop and bend it to size if
necessary.
: Go to "Tensioning the rewind
spring".
392BA024 KN
367BA014 LA
355BA022 KN
a = 2mm
(0.08in)
