Stihl HTA 135 Instruction Manual

0458-698-0121-A
16

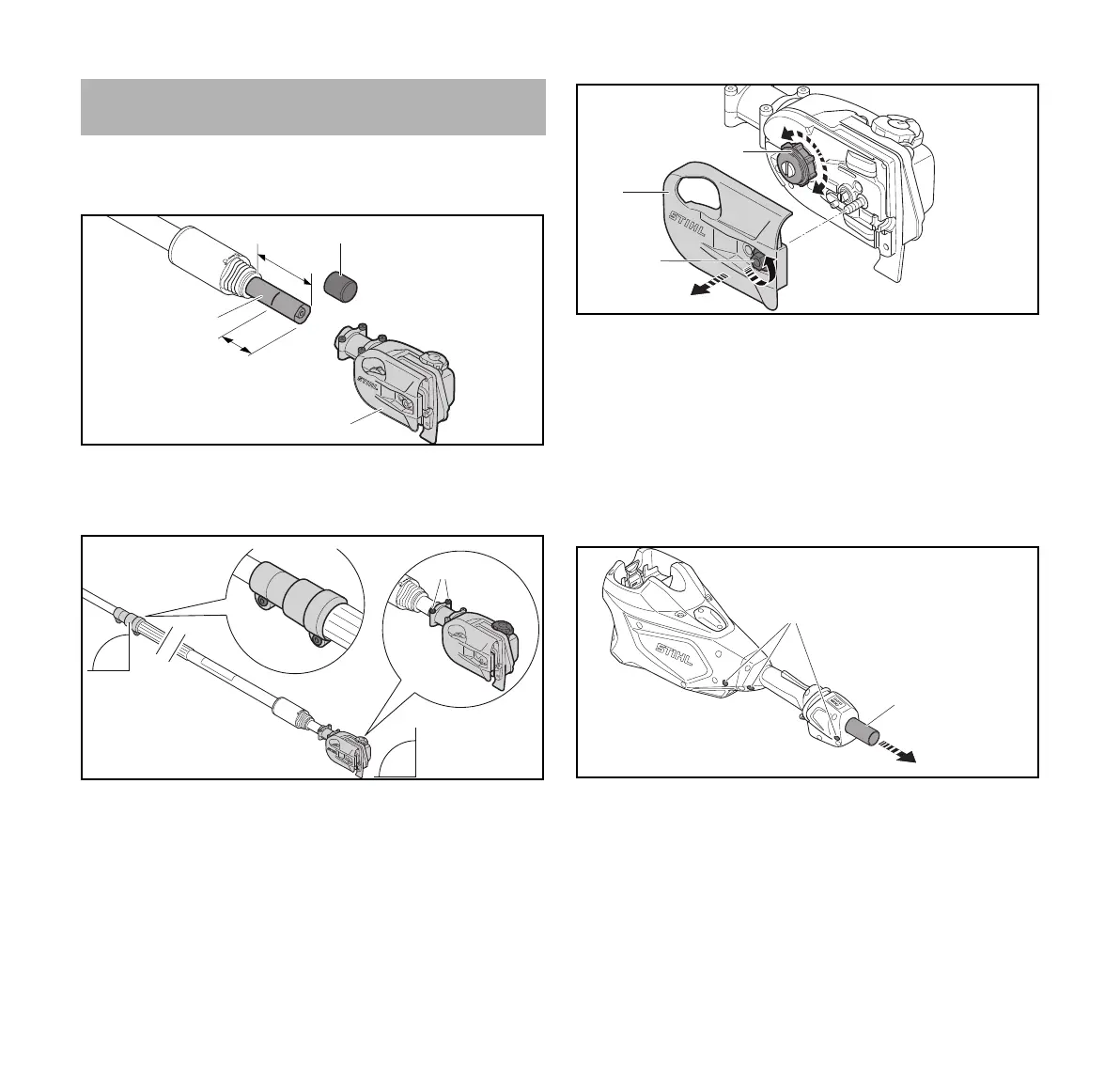

English 7 Assembling the Pole Pruner
7.1 Assembling the Pole Pruner
► Switch off the pole pruner and remove the battery.
► Remove the protective cap (1).
► Adjust the shaft length to a = 10 cm.
► Mark b = 6 cm on the shaft (2).
► Align the collet (4) and transmission (3) as shown.
► Slide the transmission (3) onto the shaft (2) up to mark b.
► Tighten down the screws (5) firmly.
► If you cannot push the transmission (3) onto the shaft (2)
up to mark b:
► Rotate the nut (7) counterclockwise until the chain
sprocket cover (6) can be removed.
► Remove the chain sprocket cover (6).
► Turn the chain sprocket (8) and push the transmission
(3) onto shaft (2) up to mark b.
► Fit the chain sprocket cover (6) so that it is flush with the
pole pruner.
► Fit the nut (7) and tighten it down firmly.
► Undo the screws (9).
► Pull out the protective tube (10).
7 Assembling the Pole Pruner
b
1
2
3
a
0000097972_001
90°
4
3
90°
5
0000098531_001
7
6
8
0000098623_001
10
9
0000097324_001

Stihl HTA 135 Specifications

General

Battery Type	Lithium-Ion
Bar Length	12 in.
Rated Voltage	36 V
Power Source	Battery
Maximum Cutting Diameter	10 in.
Chain Pitch	1/4"
Recommended Battery	AP 300 S
Run Time	Up to 45 minutes
Shaft Length	1.8 m
STIHL OILOMATIC® saw chain type	Picco Micro 3 (PM3)
Chain Oil Tank Capacity	100 ml
