12 After Finishing Work

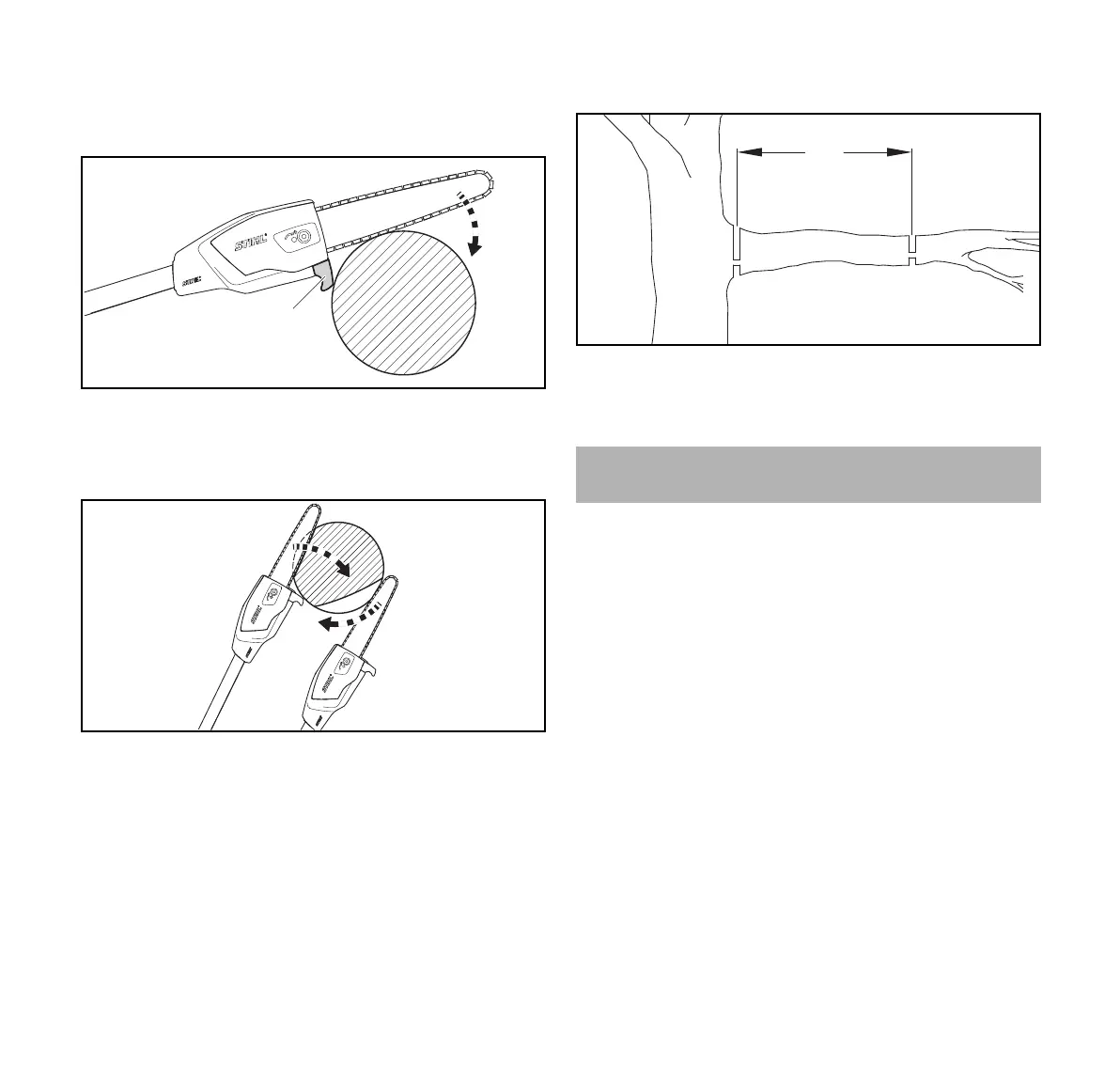

11.5 Limbing
Cross-cut
► Position the stop (1) against the branch.
► With the chain running a full speed, pivot the guide bar
downward against the limb.
► Cut through the limb with the bottom of the guide bar.
► If the limb is under tension: Make the relieving cut (1) at
the compression side and then perform the bucking cut (2)
from the tension side.
Cutting thick branches
► Perform a relieving cut (2) at cutting point (2) at a distance
a = 20 cm from the final cross cut (1).
► Perform a relieving cut and then finish with a cross-cut (1).
12.1 When Work is Finished
► Switch off the pole pruner and remove the battery.
► If the pole pruner is wet: Allow the pole pruner to dry.
► If the battery is wet: Allow the battery to dry.
► Clean the pole pruner.
► Clean the guide bar and saw chain.
► Loosen the nut on the chain sprocket cover.
► Back off the tensioning screw 2 turns counterclockwise.
The saw chain is now slack.
► Tighten down the nut on the chain sprocket cover.
► Fit the chain scabbard so that it completely covers the
guide bar.
► Clean the battery.
1
0000-GXX-4764-A1
1
2
0000-GXX-4765-A1
12 After Finishing Work
a
1 2
0000-GXX-4766-A0
