14 Using a Battery Harness
secure the connecting cord so that it will not interfere with
proper working technique or your ability to maintain control
of the power tool.
WARNING
Manage the cord to prevent it from contacting the
cutting/working attachment or catching on objects, which
could cause you to lose balance or control of the power tool,
resulting in serious personal injury and property damage.
WARNING
Never transport metallic, pointed or sharp objects in the
battery bag or battery backpack. They may bridge the
electrical contacts in the battery and cause a short circuit
once a battery is inserted.

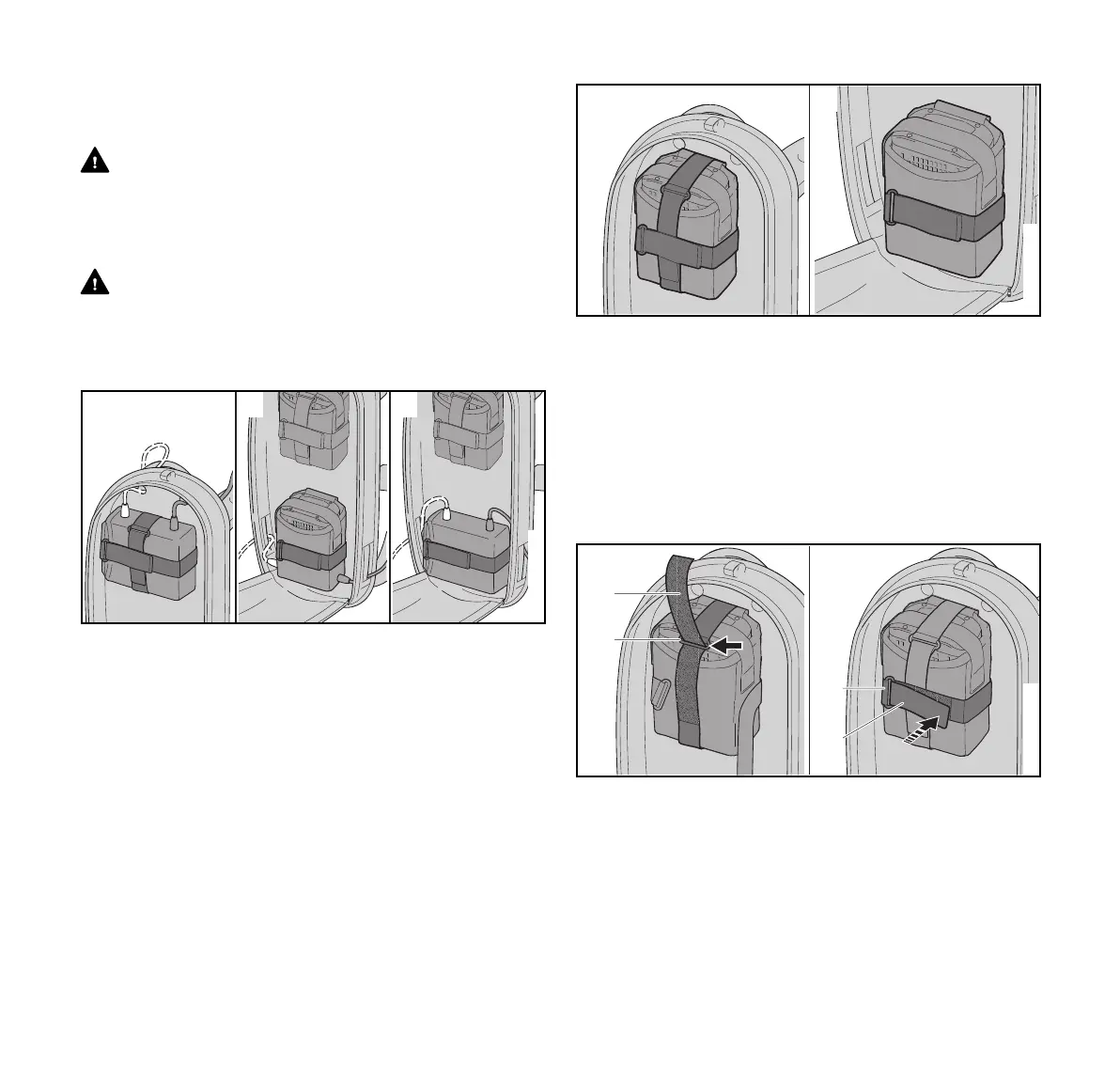

The AP Battery Bag with Connecting Cord can be mounted
at the top (Illustration A) or bottom (Illustrations B and C)
fastening points inside the STIHL Battery Backpack. Mount
so that the connecting cord exits the backpack on the side of
your body where the power tool will be held and controlled.
The STIHL Extra AP Battery Bag can be mounted at the
top (Illustration D) or bottom (Illustration E) fastening points
inside the STIHL Battery Backpack.
To attach the AP Battery Bag with Connecting Cord or Extra
AP Battery Bag to the STIHL Battery Backpack:
► Insert the AP battery into the AP Battery Bag with
Connecting Cord or Extra AP Battery Bag.
► Attach the AP Battery Bag with Connecting Cord or Extra
AP Battery Bag at one of the specified locations.
► If you attach the battery bag at the top position, pull the
vertical strap (2) through the ring (1) and close the hook
and eye fastener to secure it.
► Repeat the process with the horizontal strap (4) and its
ring (3).
A B
C
0000-GXX-4469-A1
D E
0000-GXX-4470-A1
1
2
3
4
0000-GXX-4846-A0
