11KW 85
english / USA
Adjusting loop handle to most
comfortable position:
: Loosen the wingnut (6).
: Turn or move loop handle (1) along
drive tube as required.
: Tighten down wingnut (6) firmly.
Two different versions are supplied at
the present time:

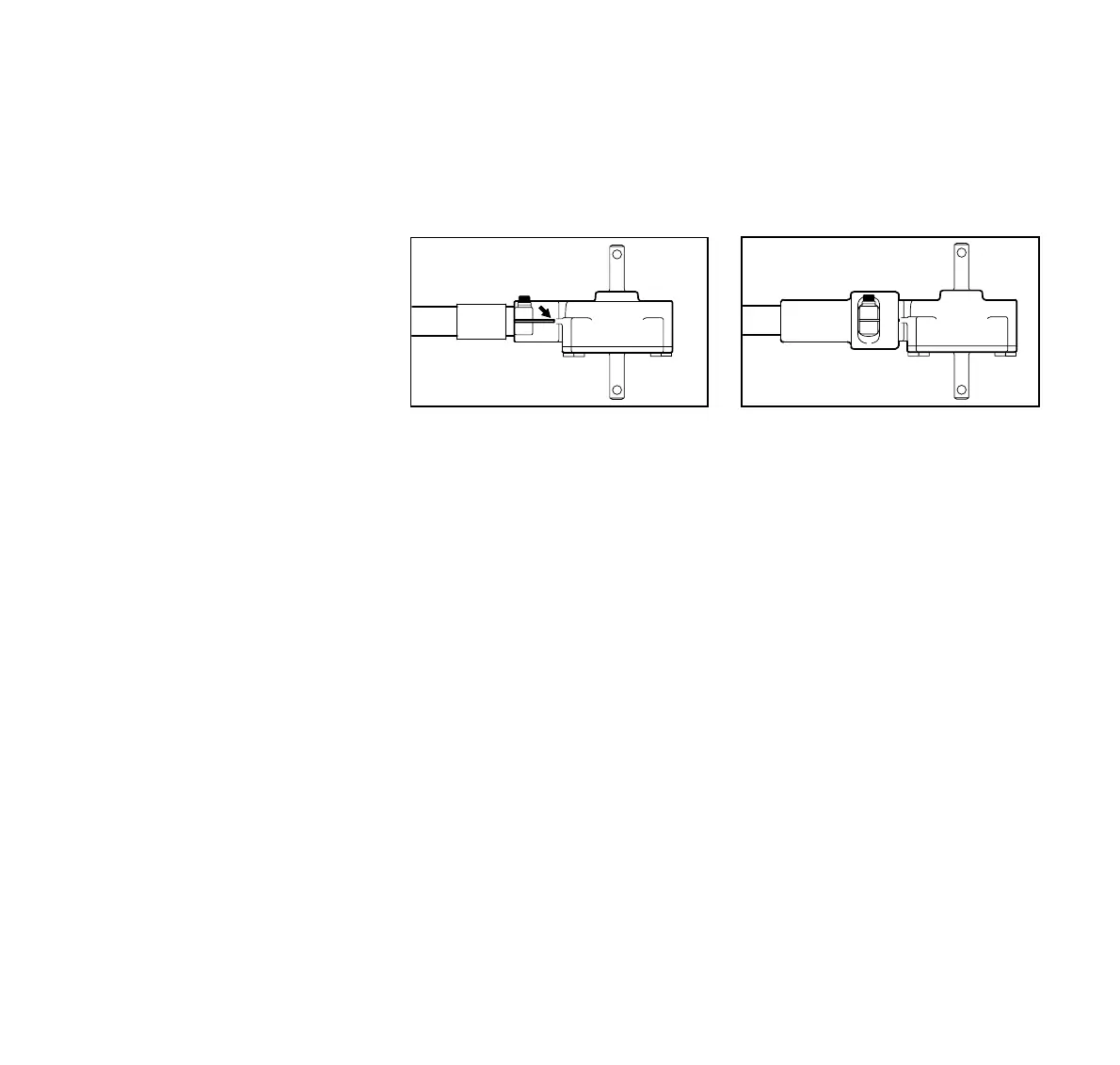

Sleeve on drive tube
: Release the clamp screw (1).
: Degrease the drive tube in the area
of the clamp.
: Slide the gearbox (2) onto the drive
tube (3) - turn the gearbox back and
forth at the same time until the end
of the tube is no longer visible in the
slot (arrow).
: Push gearbox on as far as stop.
Sleeve on gearbox
: Release the clamp screw (1).
: Degrease the drive tube in the area
of the clamp.
: Slide the gearbox with sleeve (2)
onto the drive tube (3) - turn the
gearbox back and forth at the same
time.
: Push gearbox on as far as stop.
Installing the Gearbox
223BA005 KN
2
1
3
223BA031 KN
2
1
3
