Stihl KW 85 - Mounting Sweeper Drums

12
english / USA
KW 85

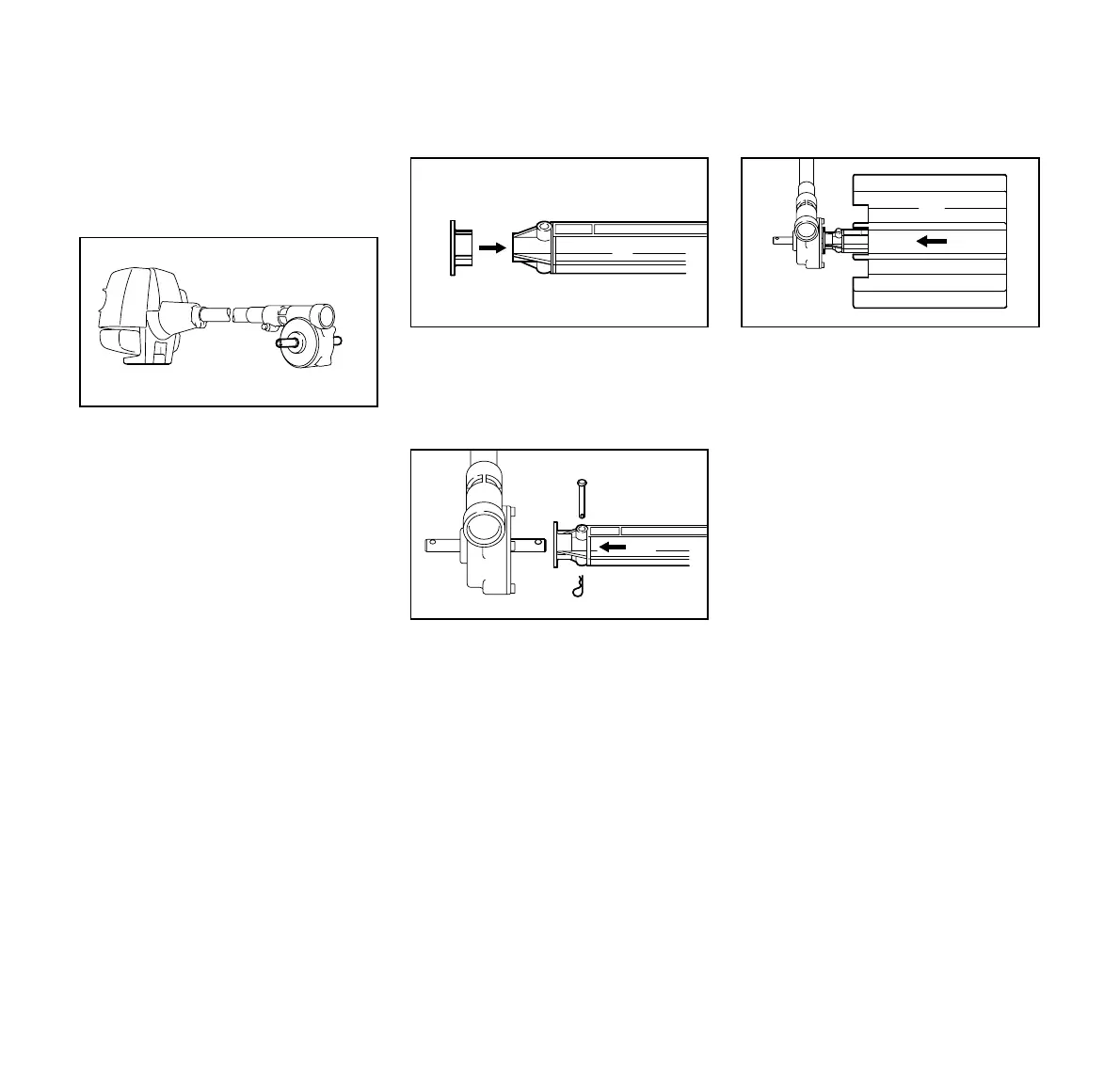

Aligning the gearbox
: Line up the gearbox on the drive
tube so that machine support (4)
faces down and the drive shafts (5)
are horizontal.
: Tighten down the clamp screw.
: Fit grass shield (1) on end of
axle (2) and press home as far as
stop.
: Push axle (2) onto the output
shaft (3).
: Insert pin (4) through axle and
output shaft. Secure pin with cotter
pin (5).
: Push sweeper drum assembly (6)
onto the axle (2) - note the installed
position (see illustration).
5
226BA006 KN
4
5
Mounting Sweeper Drums
1
223BA007 KN
2
2
223BA008 KN
3
4
5
223BA009 KN
6
2
