Stihl MS 360 - Parts and Controls

56
english
MS 360
1= Carburetor box cover twist lock
2= Spark plug boot
3= Handle heating switch
4= Chain sprocket cover
5= Chain sprocket
6= Chain brake
7= Chain catcher
8= Chain tensioner
9= Bumper spike
10= Guide bar
11= Oilomatic saw chain
12= Oil filler cap
13= Muffler
14= Front hand guard
15= Front handle (handlebar)
16= Decompression valve
17= Starter grip
18= Fuel filler cap
19= Master Control lever
20= Throttle trigger
21= Throttle trigger interlock
22= Rear handle
23= Rear hand guard

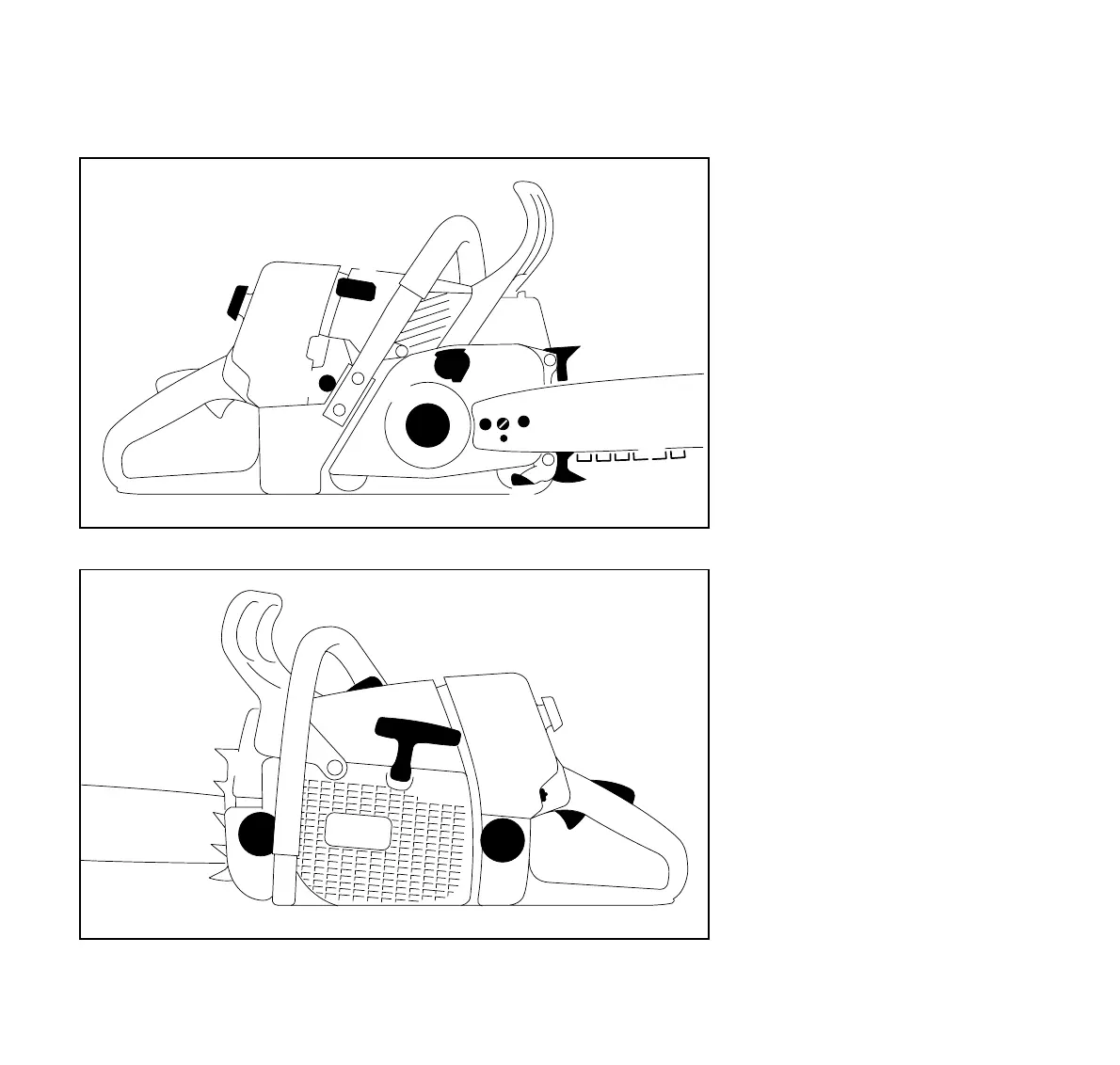

Parts and Controls
11
1
2
3
4
5
6
7
8
9
10
145BA025 KN
145BA026 K
12
13
14
15
16
17
18
19
20
21
22
23
