21MS 650, MS 660

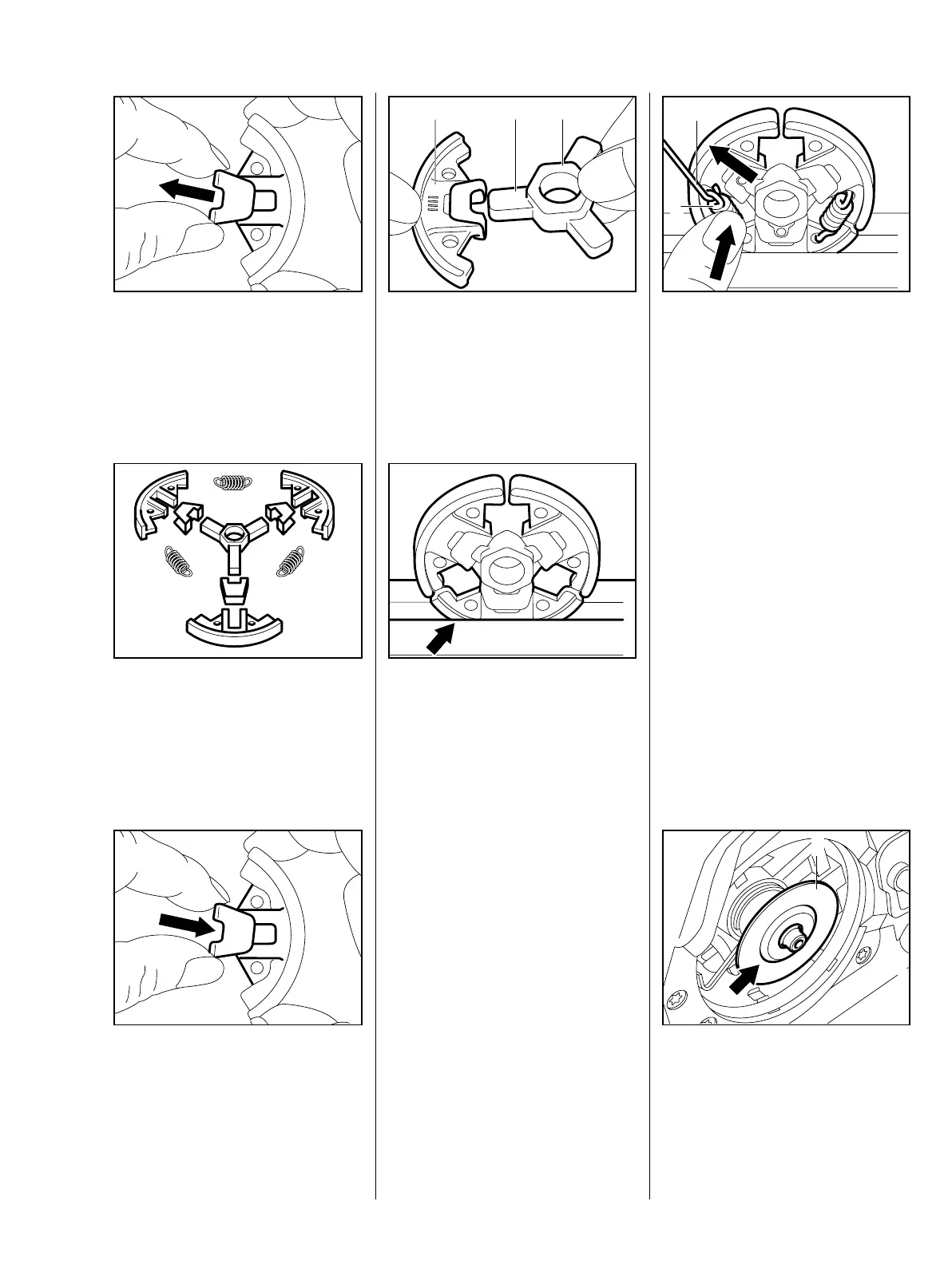

– Pull the clutch shoes off the
carrier.
: Pull the retainers off the clutch
shoes.
178RA018
VA
– Clean all parts – b 17.
– Replace any damaged parts.
Assembling the clutch
VA
208RA026
: Slip the retainers onto the clutch
shoes.
178RA019
VA
: Fit the clutch shoes over the
arms (1) of the clutch carrier so
that the series number (2) is on
the same side as the longer
hexagon (3).
178RA020
VA
2 1 3
: Clamp the clutch in a vise.
178RA021
VA
: Attach one end of each spring (1)
to the clutch shoes.
: Use the hook (2) 5910 890 2800
to attach other end of the spring
and press it firmly into the clutch
shoe.
78RA2022
VA
2
1
: Fit the cover washer (1) on the
crankshaft so that its raised
center (arrow) faces outwards.
178RA023
VA
1
