Stihl MS 650

66 MS 650, MS 660

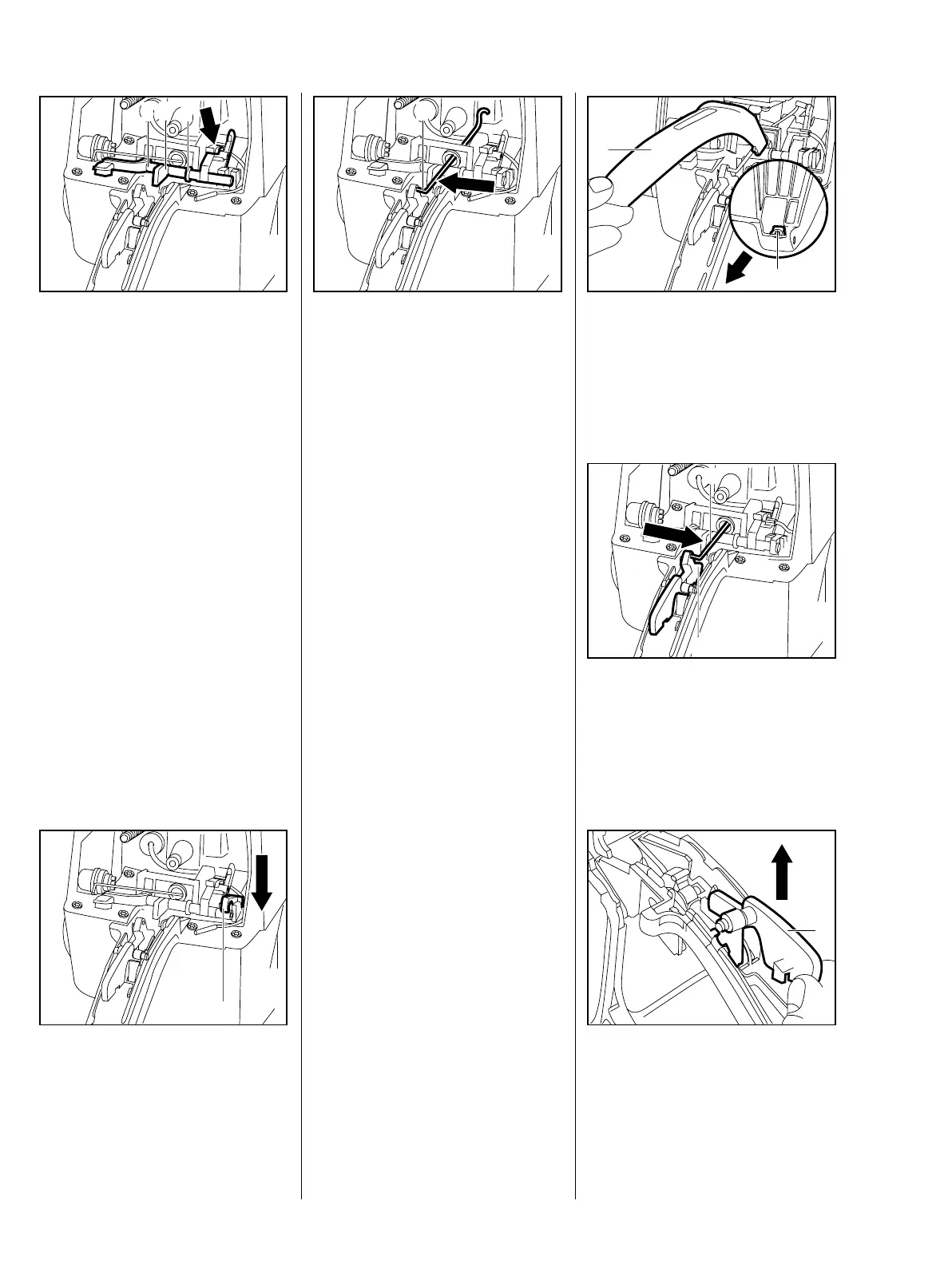

Installing
: Fit the switch shaft (1) in the
“STOP“ position, the contact
spring (arrow) on top.
: Push the switch shaft into the
mounts (2) on the housing.
178RA098
VA
1
2
2
: Engine the retainer (1).
178RA099
VA
1
: Attach the throttle rod (1) to the
throttle trigger.
– Fit the handle molding.
– Connect short circuit wire to
switch shaft.
178RA100
VA
1
– Install the carburetor – b 12.2.1
– Check operation.
Reassemble all other parts in the
reverse sequence.
– Remove the air filter – b 12.1
: Take out the screw (1).
: Remove the handle molding (2).
178RA101
2
VA
1
: Pull the throttle rod (1) sideways
out of the trigger (2).
– Move the Master Control to the
“RUN“ position.
178RA102
VA
2
1
: Remove the interlock lever (1).
1
VA
178RA103
10.2 Throttle Trigger /
Interlock Lever
