72 MS 650, MS 660

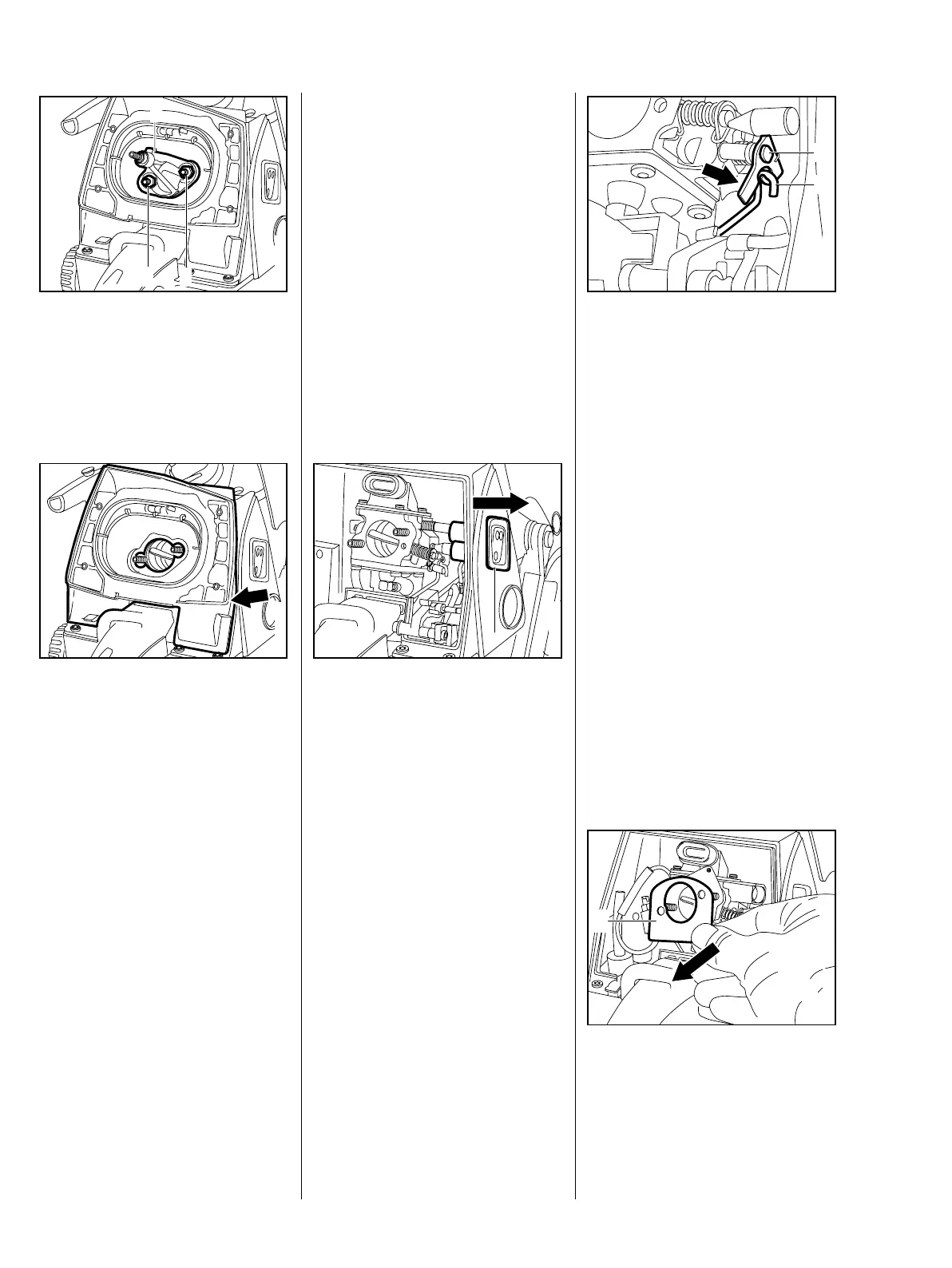

: Unscrew the nuts (arrows).
: Pull off the flange (1).
178RA121
VA
11
2
: Remove the filter base (arrow).
– Wash the filter mesh in the filter
base thoroughly in a fresh, non-
flammable cleaning solution and
blow out with compressed air.
If filter mesh is damaged, install a
178RA122
VA
new filter base.
Reassemble in the reverse
sequence.
The following servicing procedures
show a carburetor without limiter
caps. The procedures are exactly
the same on carburetors with limiter
caps.
– Remove filter base – b 12.1
: Pull the grommet (1) off the
adjusting screws and out of the
housing.
1
178RA123
VA
– Open the throttle wide.
: Hold the throttle shaft (1) steady
(arrow).
: Release the throttle trigger and
take the rod (2) out of the throttle
shaft.
178RA124
VA
1
2
Machines with carburetor heating
: Remove the baffle plate (1).
1
178RA125
VA
12.2 Carburetor
12.2.1 Removing and Installing
