Stihl MS 650

38 MS 650, MS 660

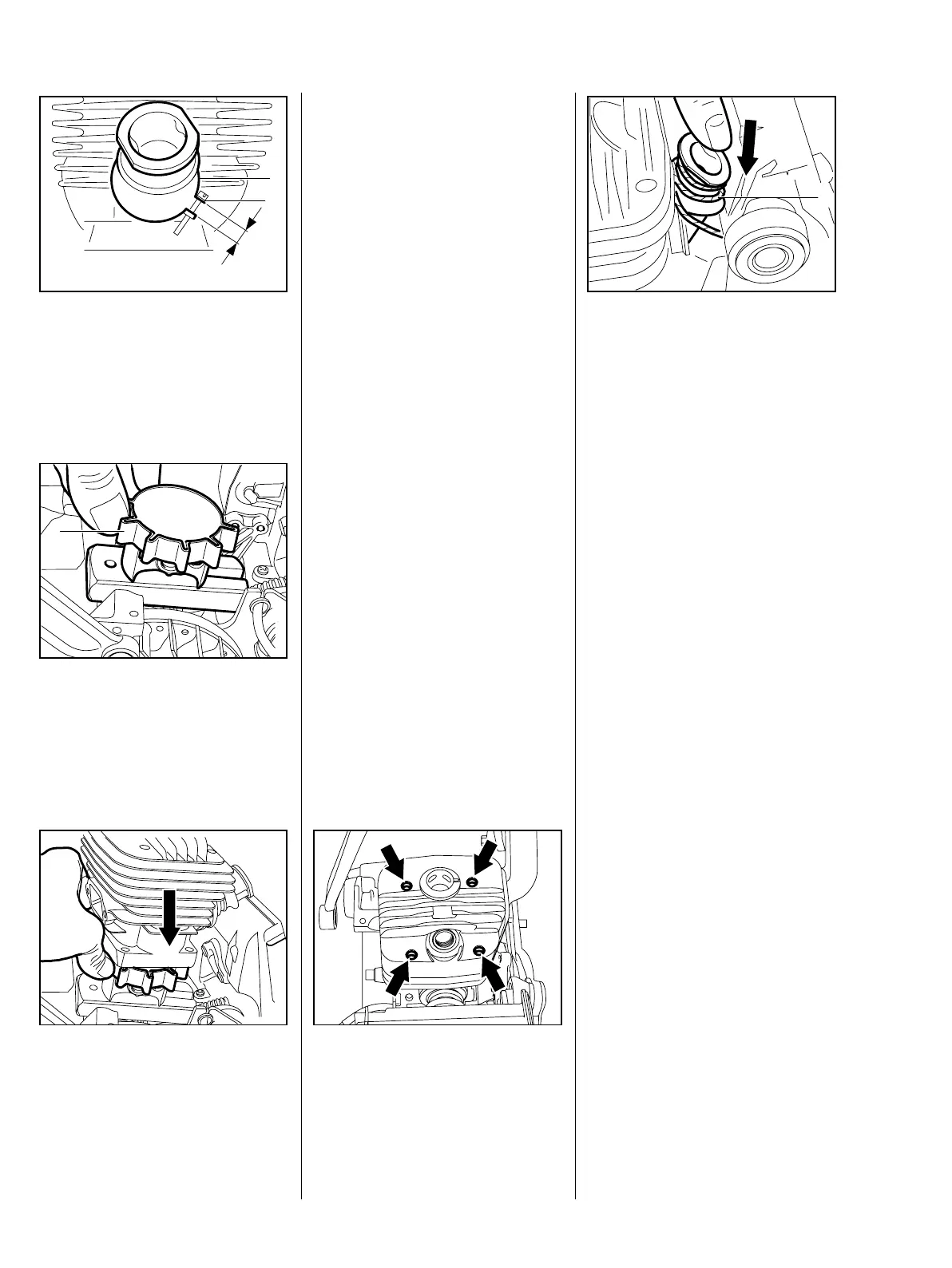

: Position the clamp (1) at an angle
of 45° with the screw head (2) on
the right.
: Tighten down the screw until the
gap “a” between the two ends of
the clamp is 5 – 6 mm.
a
178RA200
VA
2
1
– Check correct installed position
of piston rings.
: Use the clamping strap (1)
0000 893 2600 to compress the
rings around the piston.
178RA201
VA
1
– Lubricate the inside of the
cylinder with oil.
: Line up cylinder as it will be in the
installed condition. It is important
to observe this point as the piston
rings might otherwise break.
178RA202
VA
: Slide the cylinder over the piston,
the clamping strap moves
downwards at the same time.
– Remove the clamping strap and
wooden assembly block.
– Line up the cylinder and cylinder
gasket.
: Insert the cylinder base screws
(arrows), but do not tighten them
down yet.
178RA193
VA
: To pull the manifold flange
through the intake opening in the
tank housing, wind a piece of
string (1) (about 15 cm long)
around the back of the flange and
pass the ends of the string
through the intake opening.
178RA203
1
VA
: Press the manifold down.
