89MS 650, MS 660

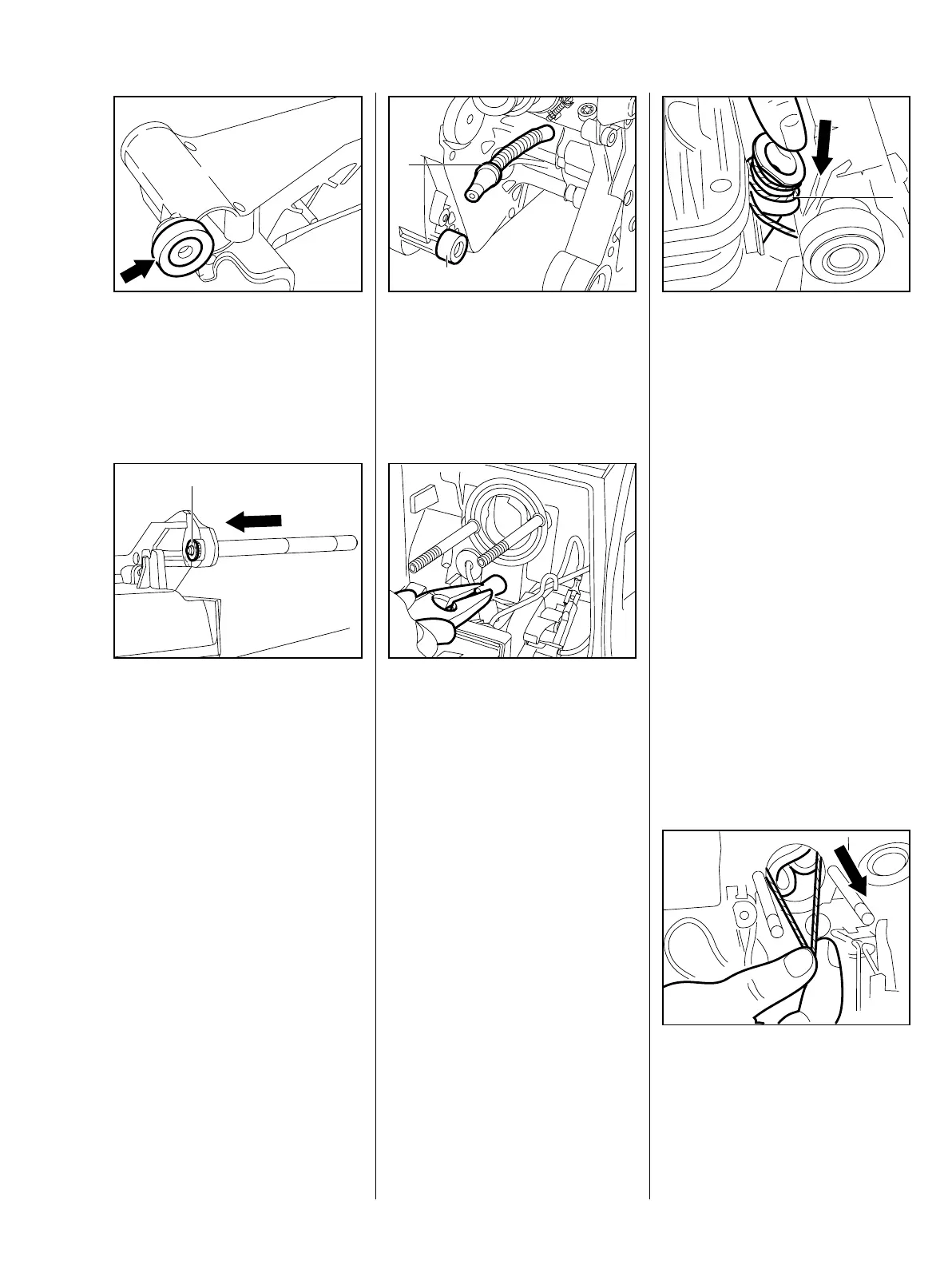

: Make sure ring (arrow) is in
position and not damaged.
178RA170
VA
: Check the sleeve (1) for wear.
: If necessary, use 7 mm punch to
drive out the sleeve, from the
outside inwards.
– Drive home the sleeve with drift
1114 893 4700.
1
178RA175
VA
– Connect impulse hose (1) to
engine housing.
– Examine rubber buffer (2) for
damage.
2
1
178RA171
VA
– Impulse hose must not be twisted
or kinked.
: Thread the impulse hose through
the bore and pull it in until its
groove engages.
– Wiring in carburetor housing –
178RA172
VA
b 15
: To pull the manifold flange
through the intake opening in the
tank housing, wind a piece of
string (1) (about 15 cm long)
around the back of the flange.
– Pass the ends of the string
through the intake opening.
178RA203
VA
– Press the manifold down.
: Pull the ends of string outwards.
Check that flange is properly seated
in the tank housing.
Reassemble all other parts in the
reverse sequence.
VA
176RA089
