Four light emitting diodes show the
battery's state of charge and any
problems that occur with the battery or
power tool.
N Press button (1) to activate the
display – the display goes off
automatically after 5 seconds.

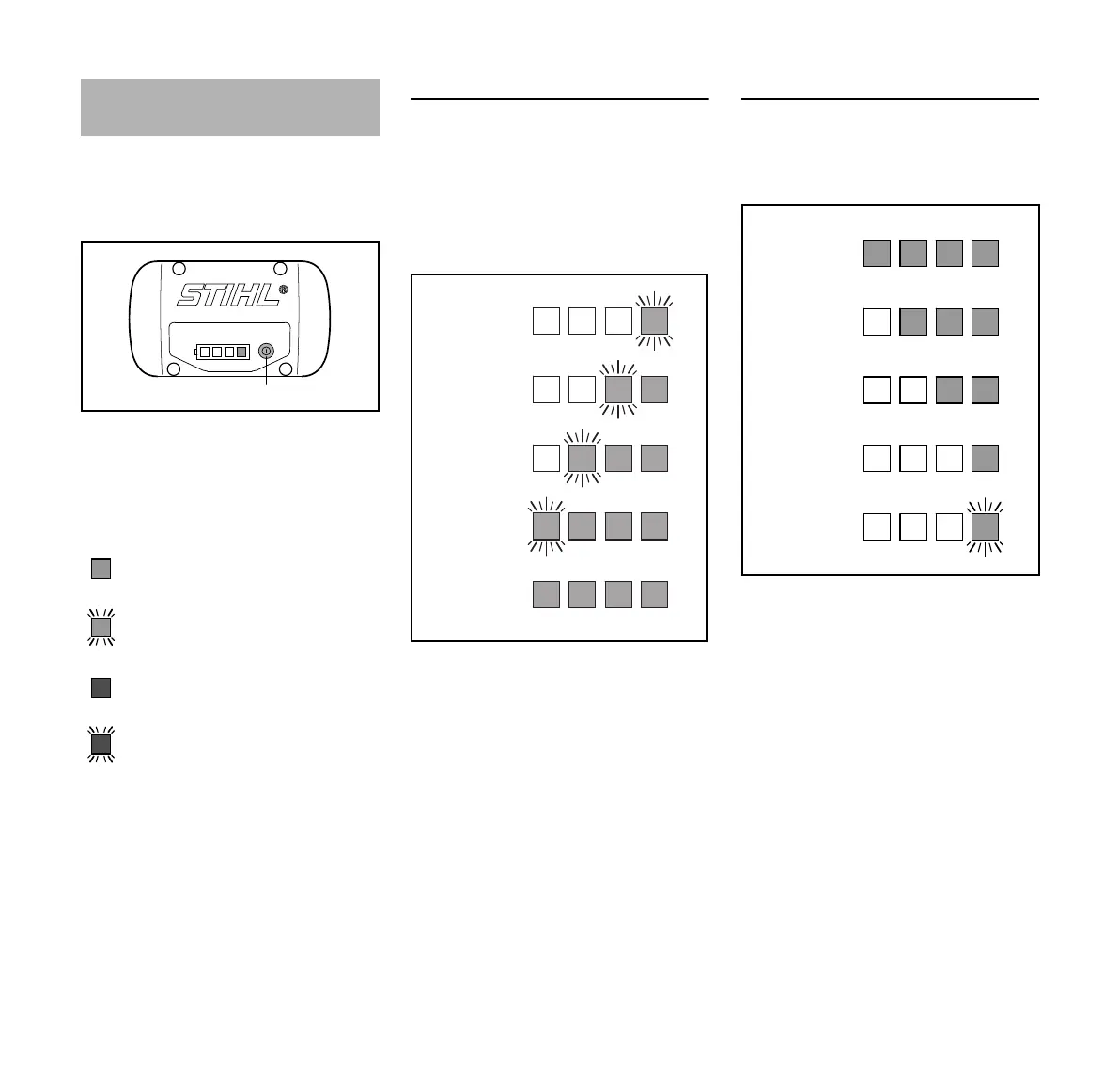

The light emitting diodes can glow or
flash green or red.
During Charging Process
The light emitting diodes glow
continuously or flash to indicate the
progress of charge.
A green flashing light emitting diode
indicates the capacity that is currently
being charged.
The light emitting diodes on the battery
turn off automatically when the charge
process is completed.
If the light emitting diodes on the battery
flash or glow red – see "If the red light
emitting diodes glow continuously /
flash".
During Operation
The green light emitting diodes glow
continuously or flash to indicate the state
of charge.
If the light emitting diodes on the battery
flash or glow red – see "If the red light
emitting diodes glow continuously /
flash".
Light Emitting Diodes (LED)
on Battery
Light emitting diode glows con-
tinuously green.
Light emitting diode flashes
green.
Light emitting diode glows con-
tinuously red.
Light emitting diode flashes red.
1
3901BA010 KN
3901BA018 KN
80 - 100 %
60 - 80 %
40 - 60 %
20 - 40 %
0 - 20 %
3901BA016 KN
80 - 100 %
60 - 80 %
40 - 60 %
20 - 40 %
0 - 20 %
