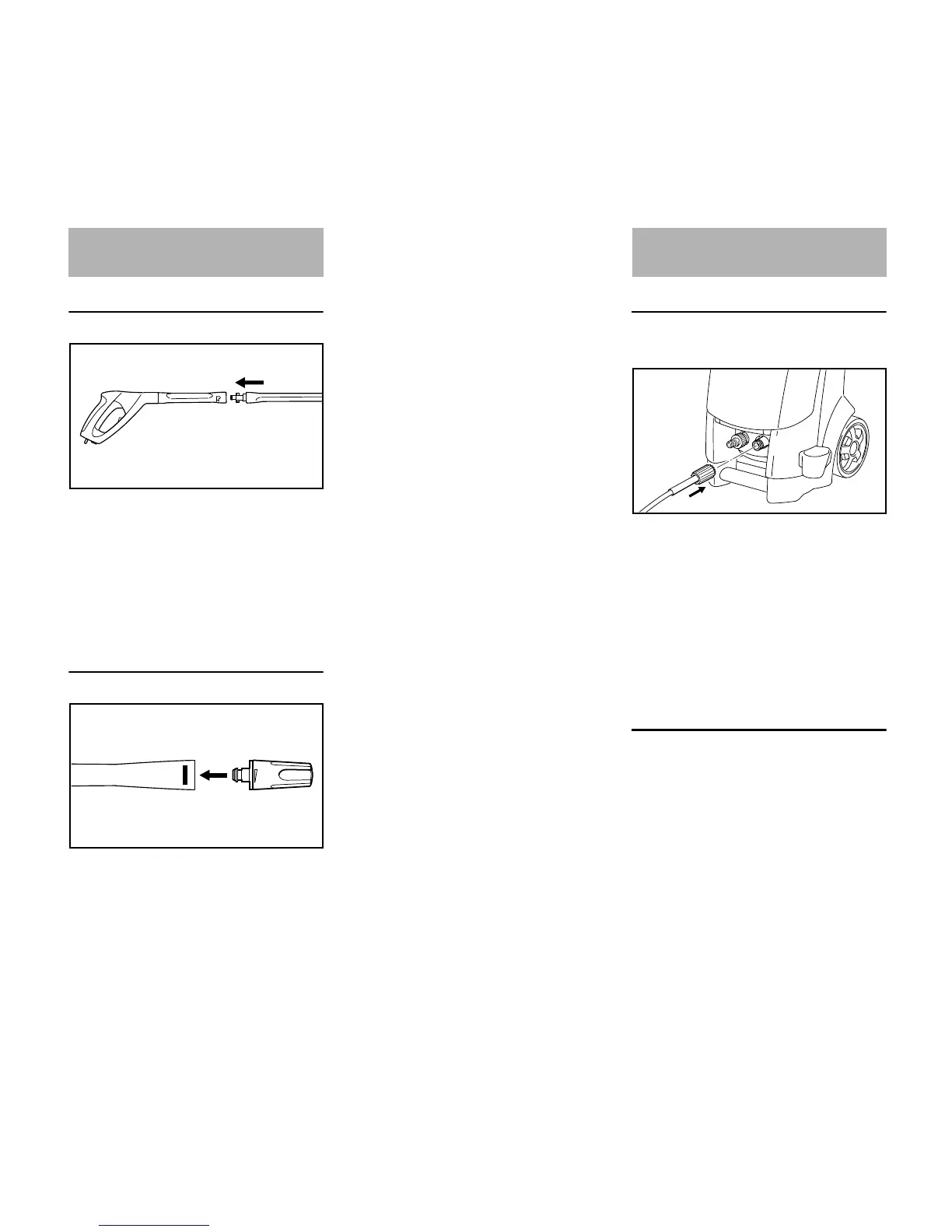

RE 108, RE 118, RE 128 PLUS
italiano
115
Lancia
N Spingere la lancia (1) nella sede
della pistola (2), girarla di 90° e farla
innestare a scatto
Smontaggio
N Spingere la lancia (1) nella sede
della pistola (2), girarla di 90° ed
estrarla dalla sede
Ugello
N infilare l’ugello (3) nella lancia
finché il bloccaggio (4) si chiude a
scatto – il pulsante del bloccaggio
scatta di nuovo fuori – l’ugello a
getto piatto regolabile ha un
meccanismo antitorsione: allinearlo
alla scanalatura della lancia
Smontaggio
N Premere il bloccaggio (4) ed
estrarre l’ugello (3)
RE 108, RE 118
Montaggio del flessibile AP
N Calzare il flessibile AP sul
tronchetto (2)
N piazzare il dado a risvolto (1),
avvitarlo e serrarlo a mano
Smontare il flessibile AP
N svitare il dado a risvolto (1)
N sfilare il flessibile AP dal
tronchetto (2)
RE 128 PLUS
Il flessibile AP è già collegato.
Montaggio, smontaggio
lancia
650BA012 KN
12
666BA014 KN
3
4
-
+
Montaggio, smontaggio
flessibile AP
2
650BA024 KN
1
