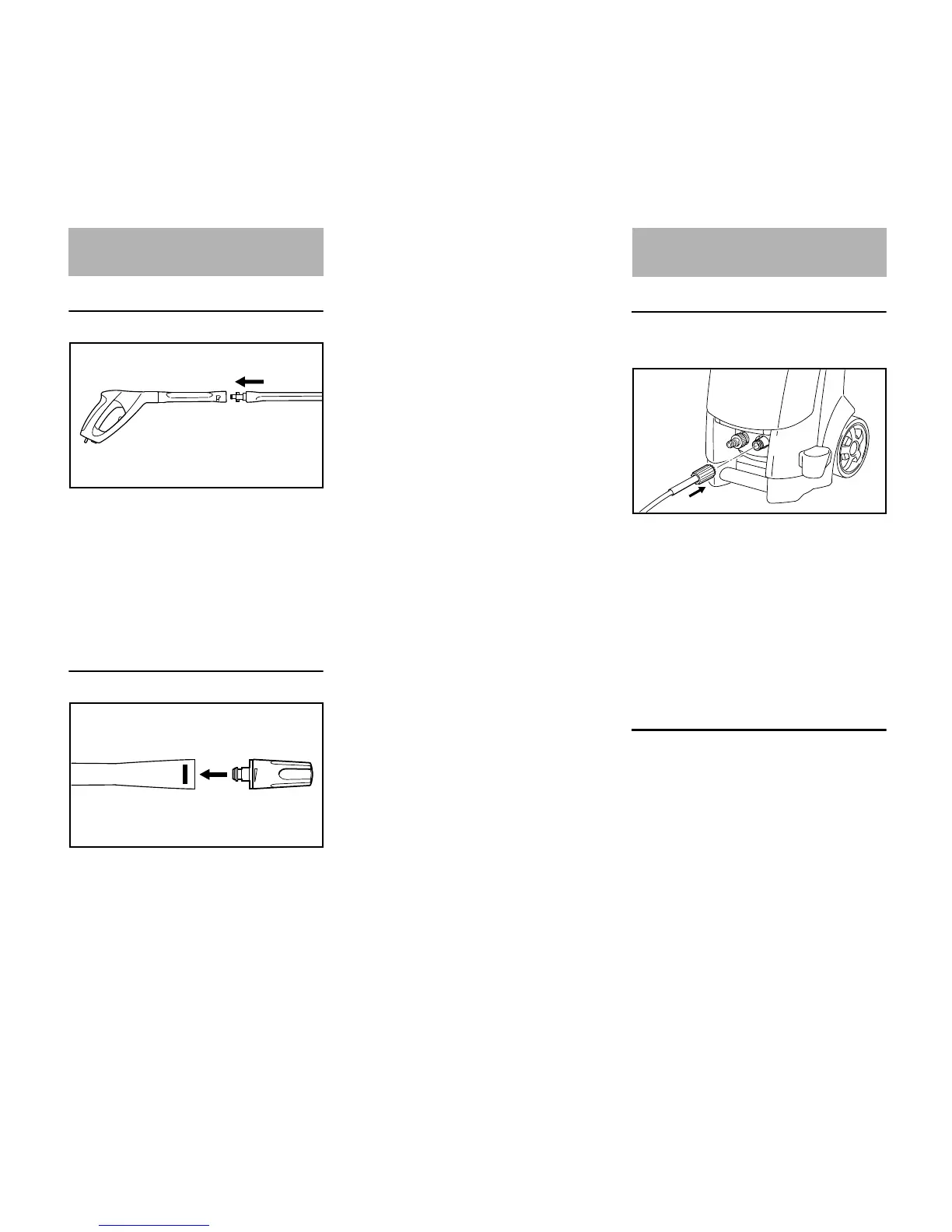

RE 108, RE 118, RE 128 PLUS
English
34
Spray lance
N Press the spray lance (1) into the
mount on the spray gun (2), turn it
by 90° so that it engages
Removing
N Press the spray lance (1) into the
mount on the spray gun (2), turn it
by 90° and pull it out of the mount
Nozzle
N Insert nozzle (3) in spray lance until
the safety latch (4) engages – at
which point the safety latch button
will spring out again the adjustable
fan jet nozzle has an anti-twist
device; orient this according to the
groove on the spray lance
Removing
N Press the safety latch (4) and pull
out the nozzle (3)
RE 108, RE 118
Connecting the high-pressure hose
N Push high-pressure hose onto the
connector (2)
N Attach union nut (1) and screw it on
and tighten by hand
Disconnecting the high-pressure hose
N Unscrew the union nut (1)
N Pull high-pressure hose off of
connector (2)
RE 128 PLUS
The high-pressure hose is already
connected.
Fitting, removing spray lance
650BA012 KN
12
666BA014 KN
3
4
-
+
Fitting, removing high-
pressure hose
2
650BA024 KN
1
