English 8 Adjusting the Lawn Mower for the User

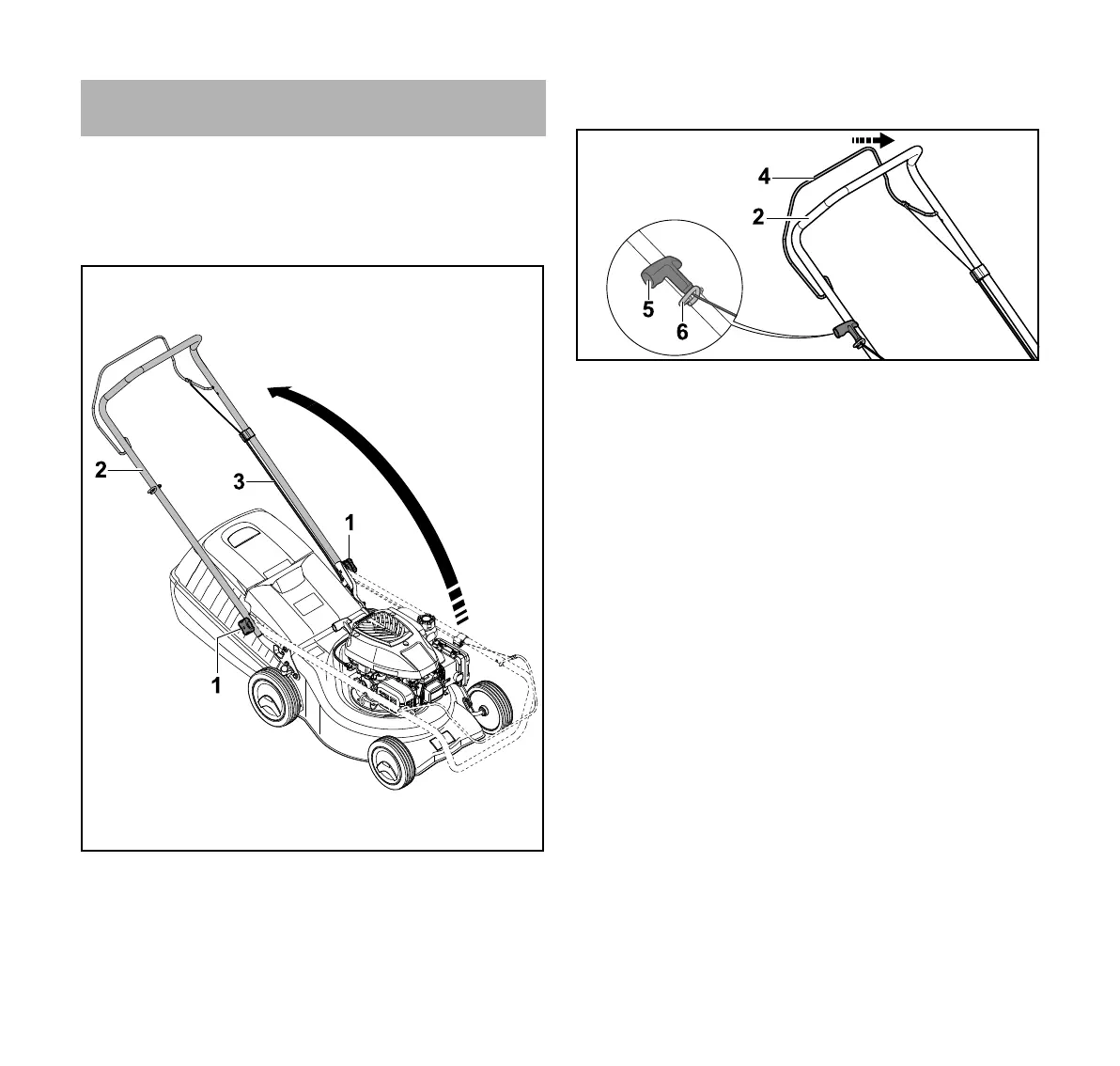

8.1 Folding Up the Handlebar
► Stop the engine.
► Detach the spark plug socket.
► Place the lawn mower on a level surface.
► Loosen star grips nuts (1) if they are tightened.
► Fold up handlebar (2), ensuring that cable (3) is not
trapped.
► Firmly tighten star grip nuts (1).
Handlebar (2) is firmly attached to the lawn mower.
► Press control bar for mowing (4) to handlebar (2) and
hold.
► Slowly pull starter handle (5) in the direction of starter
rope guide (6).
► Hook starter handle (5) into starter rope guide (6).
► Release control bar for mowing (4).
► Re-attach the spark plug socket.
8.2 Folding the Handlebar
The handlebar can be folded for space-saving transport or
storage.
► Stop the engine.
► Detach the spark plug socket.
► Place the lawn mower on a level surface.
► Press the control bar for mowing to the handlebar and
hold.
► Detach the starter handle from the starter rope guide and
slowly guide back towards the engine.
► Release the control bar for mowing.
► Hold the handlebar and loosen the star grip nuts.
► Fold down the handlebar forwards.
