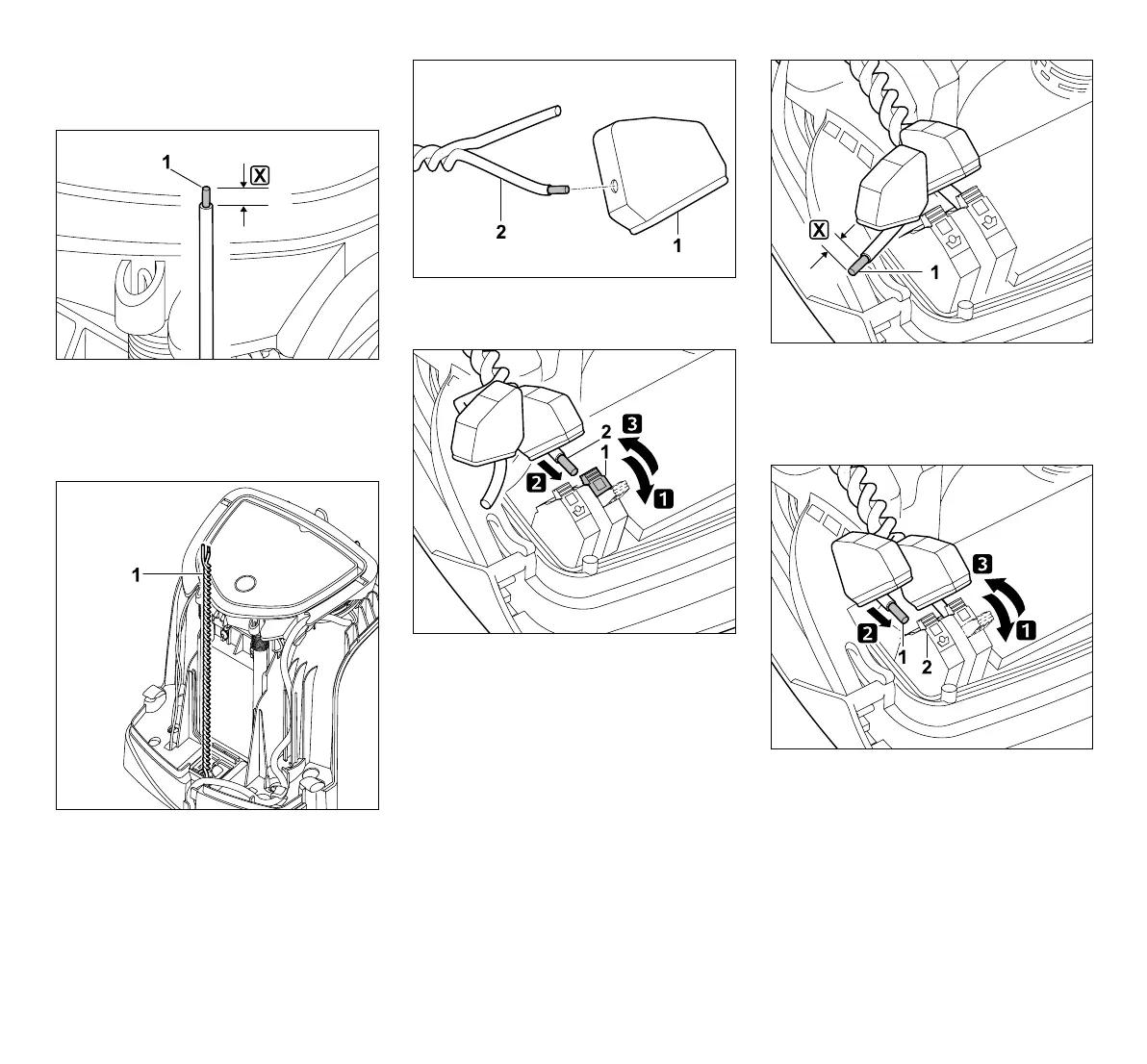

Shorten the left wire end (1) and right wire
end (2) to the same length. Length from
the wire outlet to the wire end: 40 cm
Strip the left wire end (1) to the specified
length X using a suitable tool and twist the
wire strands.
X = 10-12 mm
Twist the free wire ends (1) together as
illustrated.
● Open the panel and hold. (Ö 9.2)
Thread a grommet (1) onto each of the two
wire ends (2).
1 Fold open the left clamping lever (1).
2 Insert the stripped wire end (2) into the
terminal block as far as it will go.
3 Close the clamping lever (1).
Strip the right wire end (1) to the specified
length X using a suitable tool and twist the
wire strands.
X = 10-12 mm
1 Fold open the right clamping lever (1).
2 Insert the stripped wire end (2) into the
terminal block as far as it will go.
3 Close the clamping lever (1).
