Stihl SG 31 User Manual

SG 31
English
7
Make yourself familiar with how the
controls function before using your
sprayer for the first time.
Pump

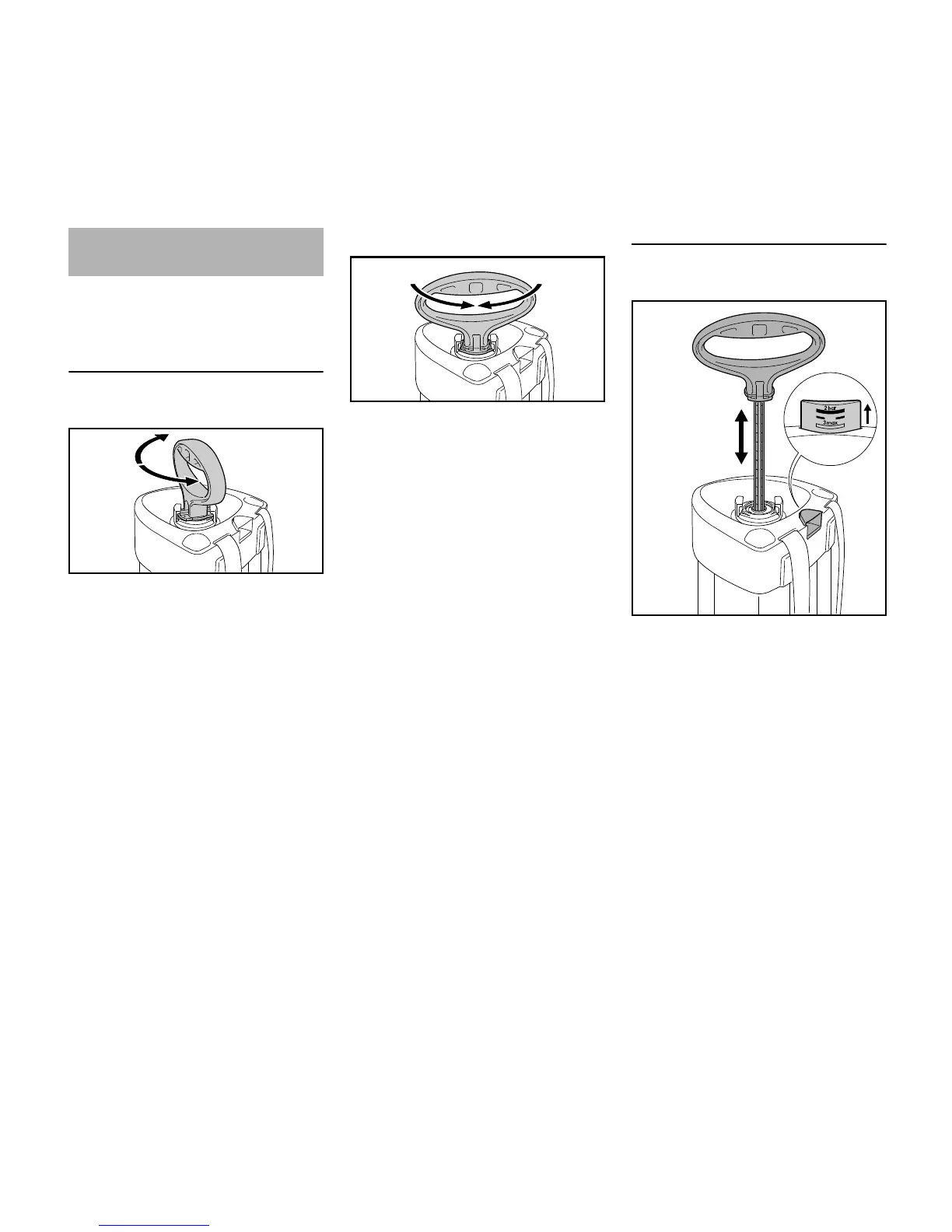

Locking the pump handle
N Push the pump handle downwards
and turn it until it engages.
Lock the pump handle:
– during operation
– when screwing the pump into the
solution container – rotate clockwise
– to unscrew the pump from the
solution container – rotate
counterclockwise
Unlocking the pump handle
N Rotate the pump handle about a
quarter turn until it disengages and
can be moved up and down freely.
Unlock the pump handle:
– to pressurize the solution container
Solution Container
Pressurizng the solution container
N Move the pump handle up and down
several times – the pressure in the
solution container rises.
The scale on the piston manometer (1)
shows the pressure in the container.
The higher the pressure in the container,
the higher the piston manometer rises –
maximum operating pressure is 3 bar.
If the maximum operating pressure is
exceeded, the relief valve in the piston
manometer releases the excess
pressure.
Controls
6159BA006 KN
6159BA007 KN
1
6159BA008 KN
