37SR 430, SR 450

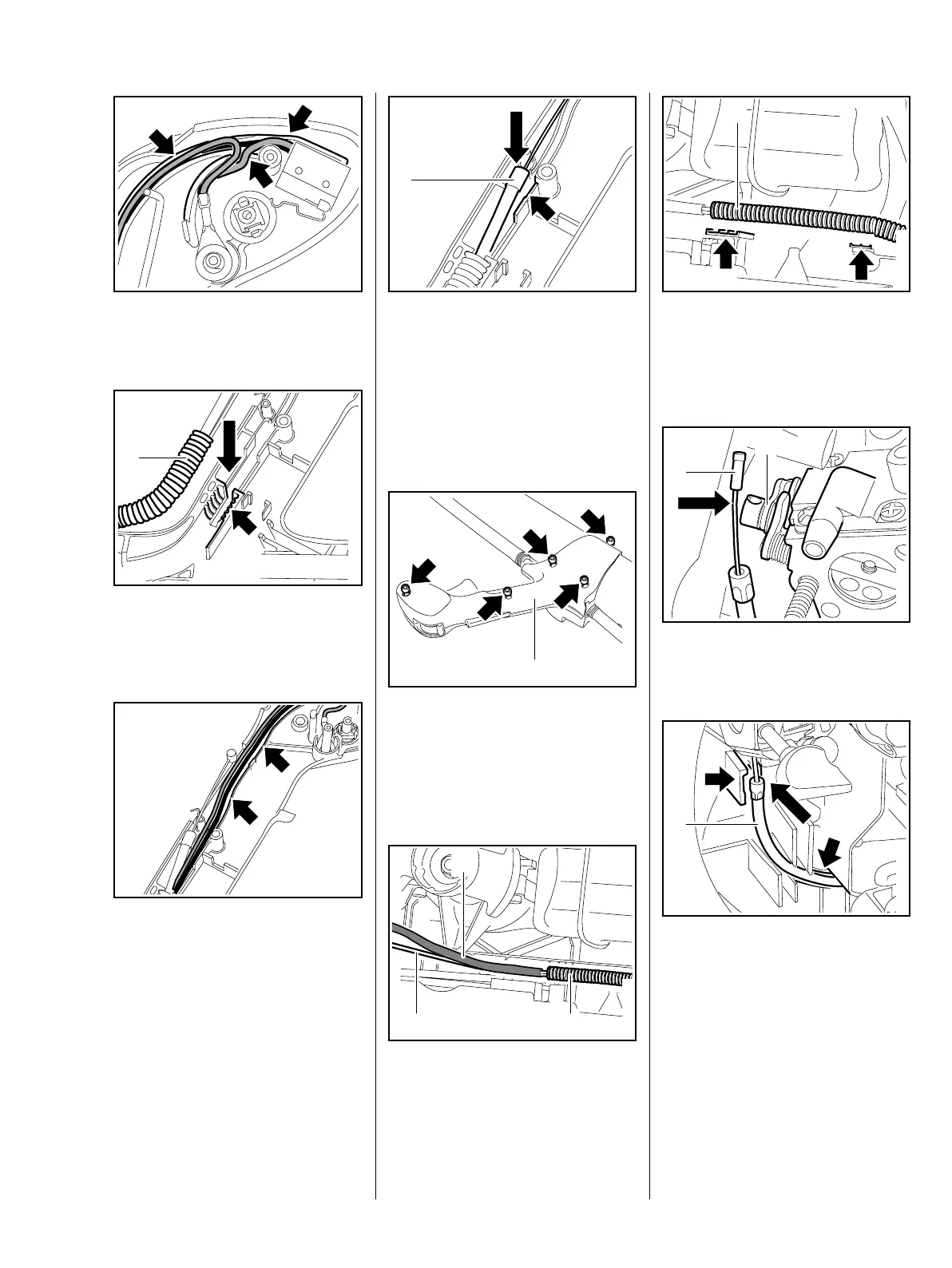

: Fit the ground and short circuit
wires in the guides (arrows).
: Push the protective tube (1) into
its seat (arrow) in the handle
molding.
: Push the wires (short circuit wire
first) into the guide (arrows)
– position the wires parallel
without loops.
0002RA474 TG0002RA094 TG
1
0002RA095 TG
: Push the throttle cable (1) into its
seat (arrow).
– Install the valve, b 10.9.2
– Install the control levers and cam,
b 8
– Fit the handle molding (1) in
position.
: Insert the screws (arrows) and
tighten them down firmly.
– Position the protective tube (1)
so that the throttle cable (2) is
under the wiring harness (3) in
the direction of the blower
housing.
0002RA096 TG
1
0002RA097 TG
1
0002RA098 TG
12
3
: Push the protective tube (1) into
its guides (arrows) as far as stop.
– The protective tube is now held
in position.
: Attach the throttle cable (1) to the
carburetor (2).
: Push the throttle cable (1) into
the guides (arrows).
– Check operation of throttle cable
and readjust if necessary,
b 9.8.1
0002RA099 TG
1
1
2
0002RA100 TG0002RA101 TG
1
