TS 410, TS 420
English
26

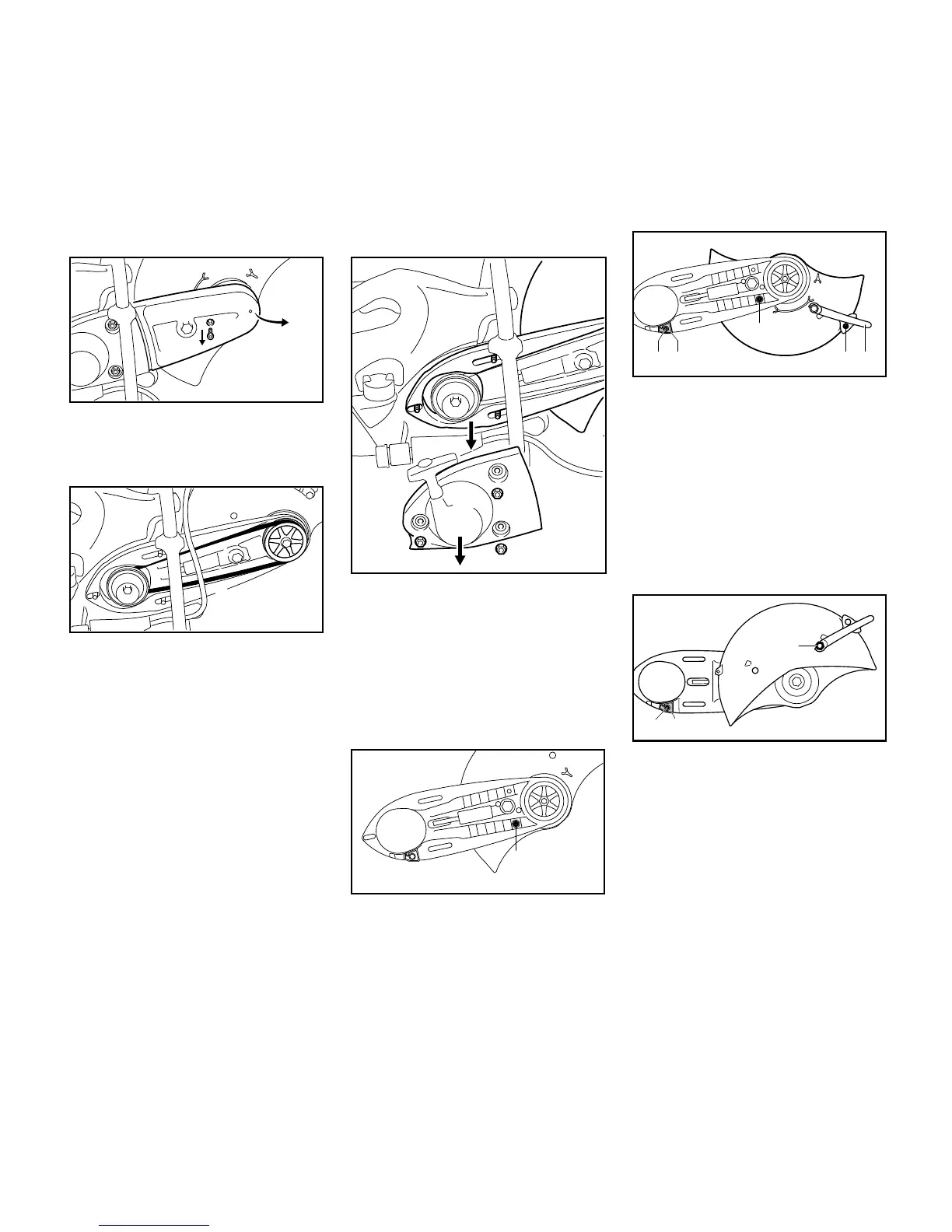

Removing the V-belt guard
N Remove screw (1)
N Raise the V-belt guard (2) slightly
and pull it off to the front
N Remove the V-belt (3) from the front
pulley (4)
Remove the "cast arm with guard"
N Unscrew the nuts (1)
N Remove the "starter cover with
rewind starter" (2)
N Remove the "cast arm with
guard" (3) from the studs
Preparing the "cast arm with guard" for
outboard mounting
N Unscrew stop pin (1)
N Turn the guard so that it is in the
position shown (see picture)
N Screw in and tighten the stop pin (1)
N Move the adjusting lever (2) to
position A
N Screw in the bolt (3) and tighten up
N Unscrew the bolt (4) of the limit
stop (5)
N Remove the limit stop (5)
N Turn the "cast arm with guard" so
that the guard is on the outboard
side
N Insert limit stop (5) – align the hole
in the limit stop with the hole in the
cast arm
N Screw in the bolt (4) and tighten up
2
1
370BA071 KN
3
370BA079 KN
4
370BA072 KN
1
2
3
1
1
1
370BA073 KN
1
370BA074 KN
4 5
3
2
A
4
5
370BA075 KN
