Leave small sections of uncut material to
hold the part being severed in position.
These sections can later be broken
through manually, using a hammer or
other appropriate tool. Always continue
to wear appropriate eye protection when
finishing a cut by breaking it manually.
A number of points must be decided
before the part is finally severed:
– How heavy is the part?
– In which direction can it move or fall
after being severed?
– Is it under tension?
– Is it properly supported to prevent
pinching or binding of the wheel?
The operator, co-workers and
bystanders must not be put at risk of
injury when the part is broken off or falls.

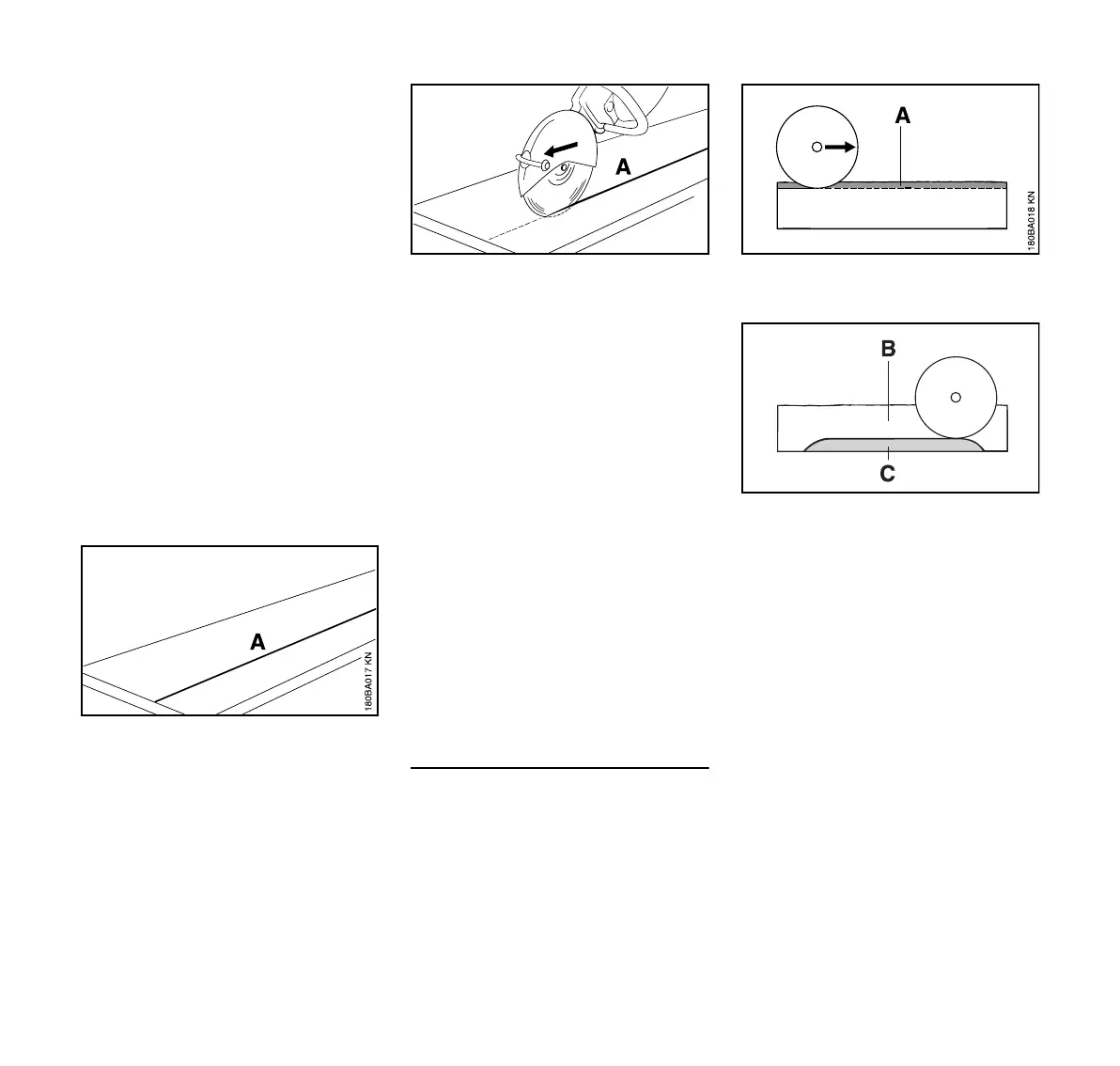

Cutting in several passes
N Mark cutting line (A).
N Work along the cutting line. If
corrections are necessary, always
lift the machine and reposition the
cutting wheel, taking care to ensure
that it is not wedged, tilted, twisted
or side loaded. Attempting to
change the position or direction of a
cut while the wheel is in the cut can
bind the wheel. This can lead to
kickback, other reactive forces or a
shattered composite cutting wheel,
which could result in severe or fatal
personal injury.The cutting depth
per pass should not exceed 2" to
2 1/2" (5 to 6 cm). Thicker material
must be cut in several passes.
The maximum cutting depth for abrasive
cutting wheels with a 12" diameter is
3.9 in. (100 mm).
The maximum cutting depth for abrasive
cutting wheels with a 14" diameter is
4.9 in. (125 mm).
Cutting Slabs
N Secure the slab (e. g. on a non-slip
surface, sandbed) and mark the
cutting line.
N Cut a shallow guiding groove (A)
along the marked line.
N Cut deeper into the parting cut (B).
N Leave a section (C) of uncut
material.
N Cut through the slab at the ends so
the material does not chip.
N Break the slab manually using a
hammer or other appropriate tool.
Always continue to wear
appropriate eye protection when
finishing any cut by breaking it
manually.
