UM2516 Rev 4 13/29

UM2516 Hardware layout and configuration

5.2 Board dimensions

The total dimension of the B-G431B-ESC1 Discovery kit (PCB) is 30 mm x 41 mm as shown

Figure 8.

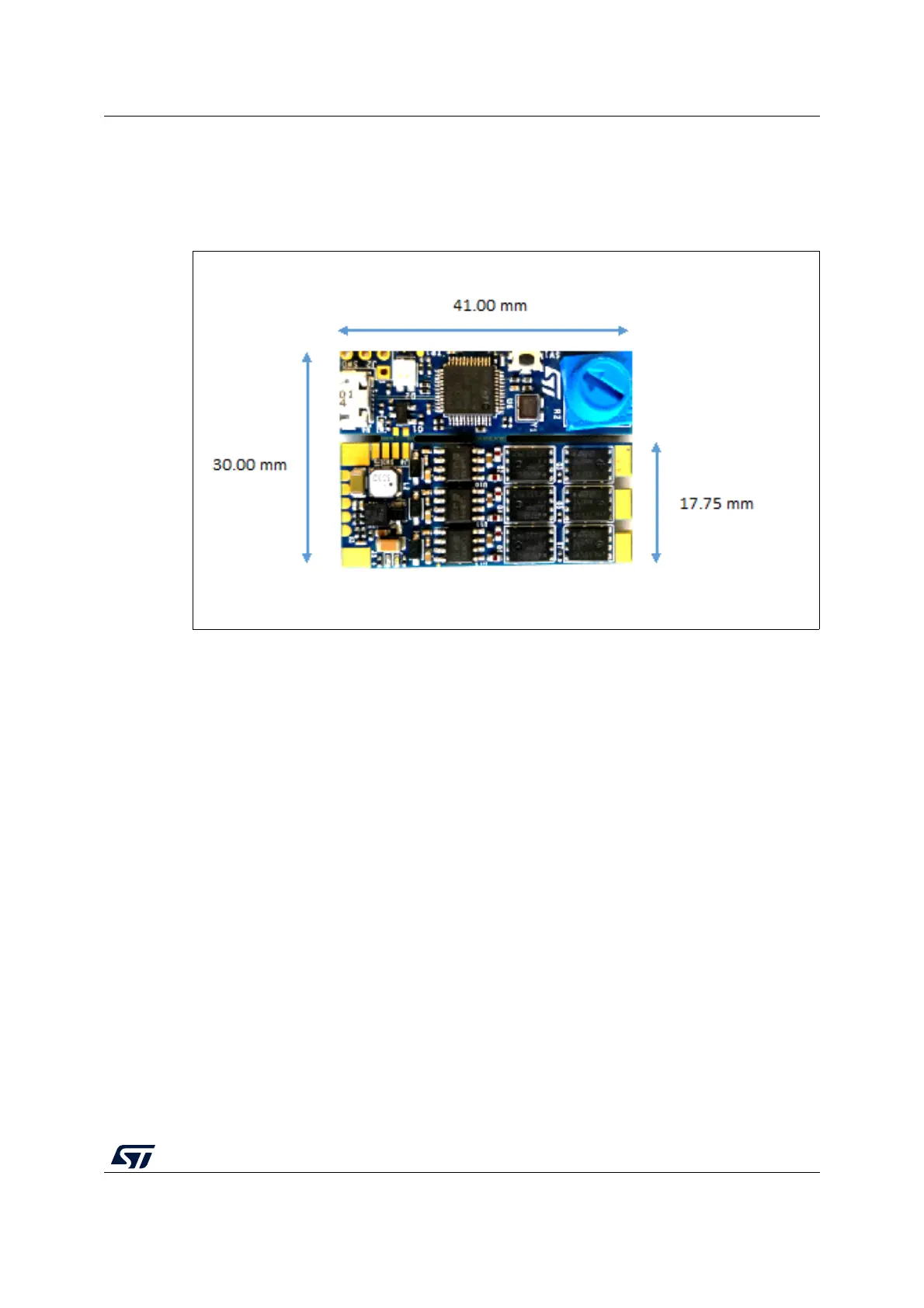

Figure 8. B-G431B-ESC1 board mechanical dimensions (top view)
