StoneL Quartz QN Series User Manual

StoneL publication 105406revA
7 QZ 70 en Quartz | 5
Specications
Materials of construction
Housing & cover Epoxy-coated anodized marine grade aluminum or
CF3M stainless steel
Clear cover & indicator Lexan® polycarbonate
Elastomer seals Buna-N; optional EPDM
Drive shaft Stainless steel
Drive bushing Bronze, oil impregnated
Fasteners Stainless steel
Enclosure protection Type 4, 4X, 6 and IP67
Unit weights
Aluminum cover Short
Medium
Tall
1.27 kg / 2.80 lb
1.55 kg / 3.42 lb
1.75 kg / 2.85 lb
Clear cover Short
Medium
Tall
1.20 kg / 2.64 lb
1.27 kg / 2.79 lb
1.39 kg / 3.06 lb
Stainless steel cover Short
Medium
Tall
3.84 kg / 6.25 lb
3.00 kg / 6.80 lb
3.50 kg / 7.70 lb
Unit dimensions for Output option “S” - Short visual indicator
(Consult factory for cover sizes on specic models)
Short cover Unit height
Cover removal clearance
102 mm [4.00 in]
143 mm [5.62 in]
Medium cover Unit height
Cover removal clearance
123 mm [4.86 in]
184 mm [7.24 in]
Tall cover Unit height
Cover removal clearance
155 mm [6.10 in]
241 mm [9.48 in]
Unit dimensions for Output option “N” - Extended visual indicator
(Consult factory for cover sizes on specic models)
Short cover Unit height
Cover removal clearance
127 mm [5.03 in]
143 mm [5.62 in]
Medium cover Unit height
Cover removal clearance
148 mm [5.86 in]
184 mm [7.24 in]
Tall cover Unit height
Cover removal clearance
186 mm [7.10 in]
241 mm [9.48 in]
Ratings and approvals*
See page47 or StoneL.com/approvals
* Only models listed on StoneL’s ocial website are approved per specic rating.
1.7 Specications for all models
See page10 for function specic details.
1
2
4
6
5
13
14
3
9
8
10
12
7
11
13
14
16

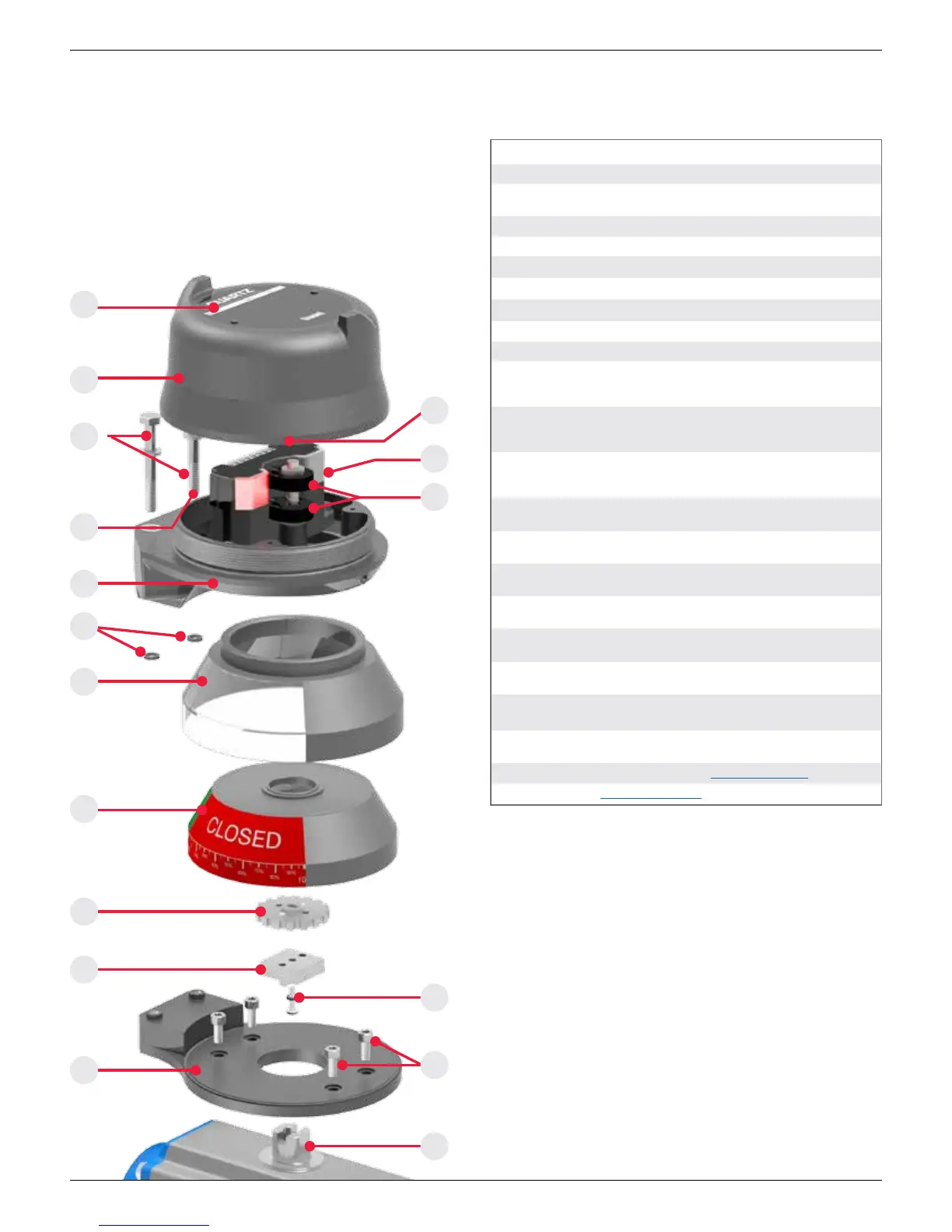

1.6 Assembly drawing
1. Title plate
2. Cover
3. Thru-bolt mounting bolt
4. Cover lock (cast cover model only)
5. Internal ground lug
6. Cams
7. Function
8. Housing
9. Thru-bolt retaining o-rings
10. Visual indicator cover
11. Visual indicator drum
12. Coupler spacer
13. Drive block
14. Drive block retaining screw
15. Mounting plate retaining
screws
16. Extended visual indicator
mounting plate
17. Actuator shaft
