Chapter 2: Getting Started
2.1 Parts of the S7 Series Handheld
The following diagrams show the main parts of the handheld.

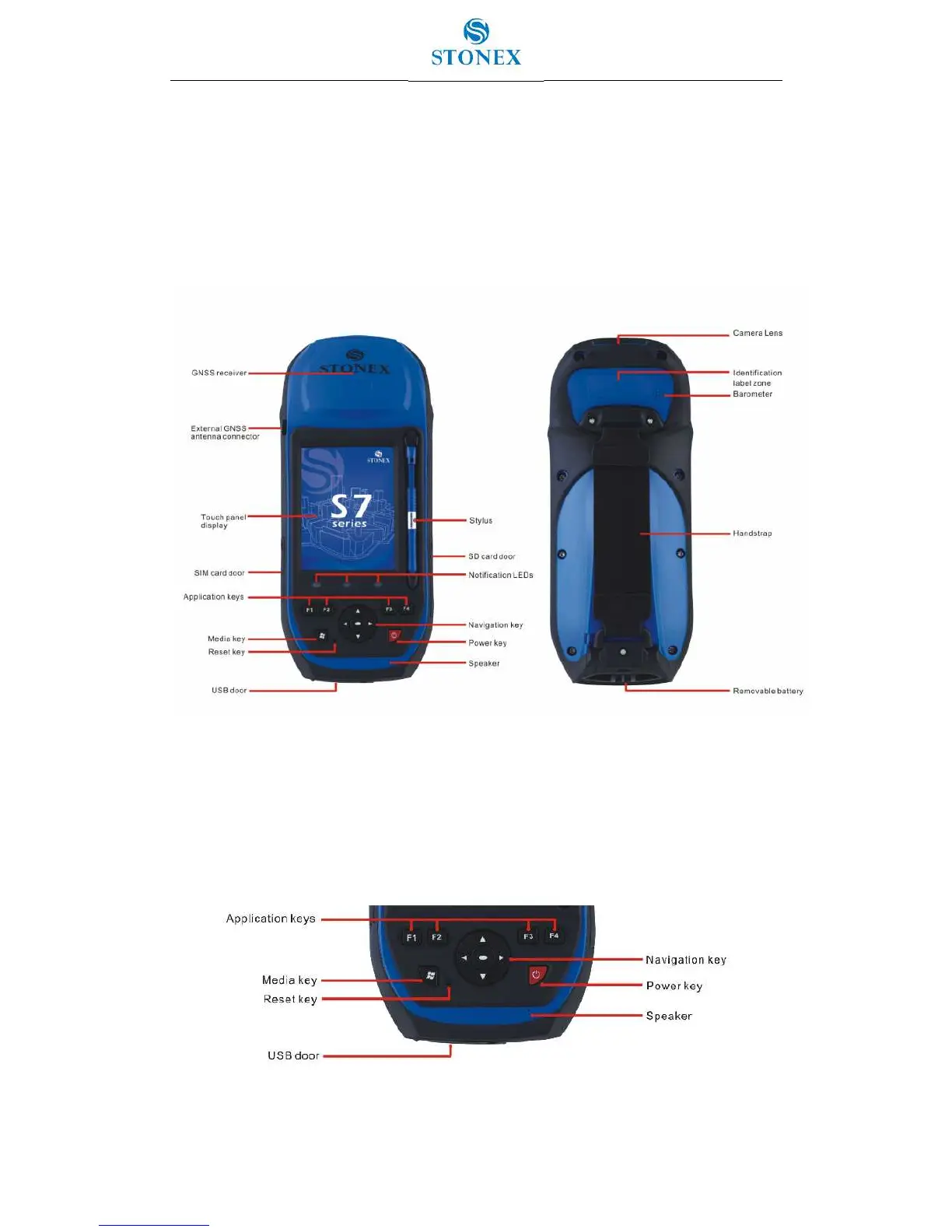

Figure 2.1.1 - Parts of S7 series handheld
Key Buttons
The S7 series handheld has a keypad for fast and easy access to common actions.
LEDs provide visual notification of system events.
Figure 2.1.2 - S7 series handheld keypad area
