Stonex S9i GNSS Receiver – User Manual 23
Figure 5 - 4 Rover mode (Network datalink)
External: to connect an external radio. Set the external serial port baude rate
equal to the one programmed on the external radio.

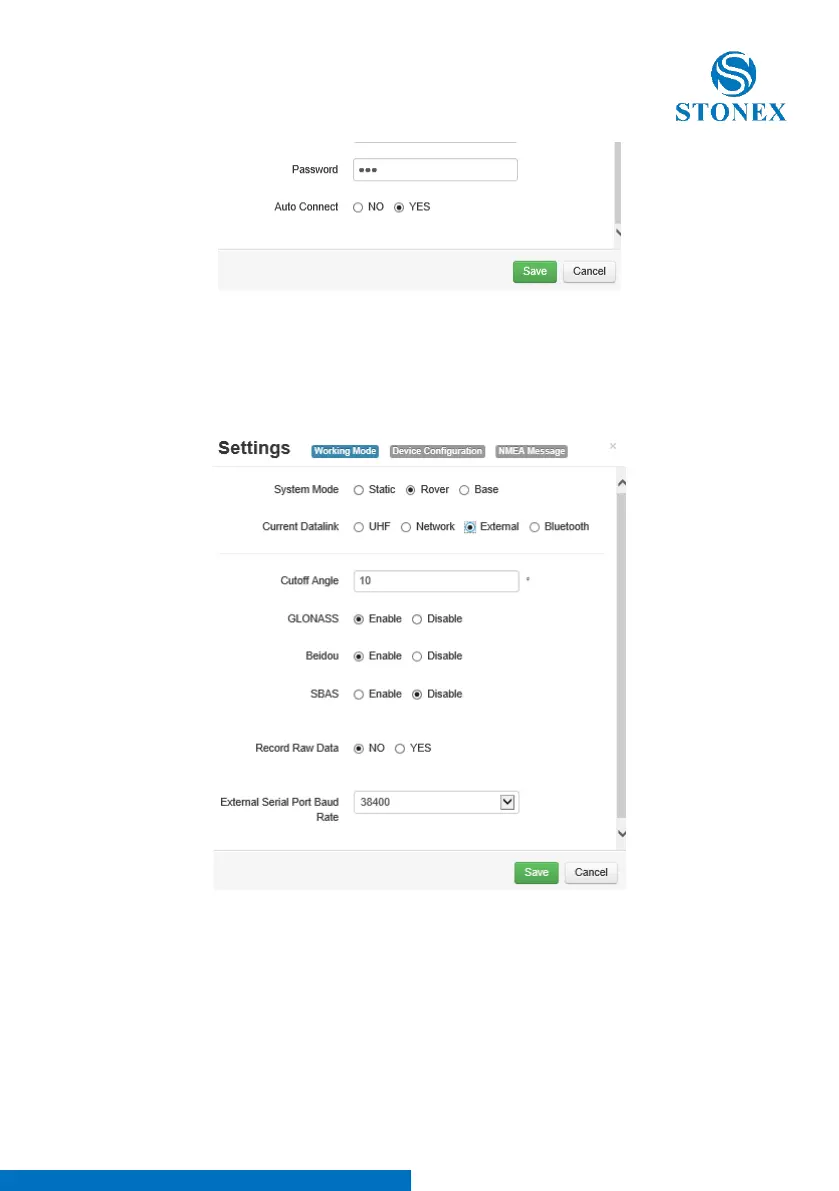

Figure 5 - 9 Rover mode (External datalink)
Bluetooth: to set datalink to Bluetooth. You can configure, the cutoff angle,
satellites system and enable record of raw data.
