STONEX S9III GNSS User Manual

57
Chapter V: Stonex Assistant for S9III
DefRadSettings
Click on “ Enter” to confirm.

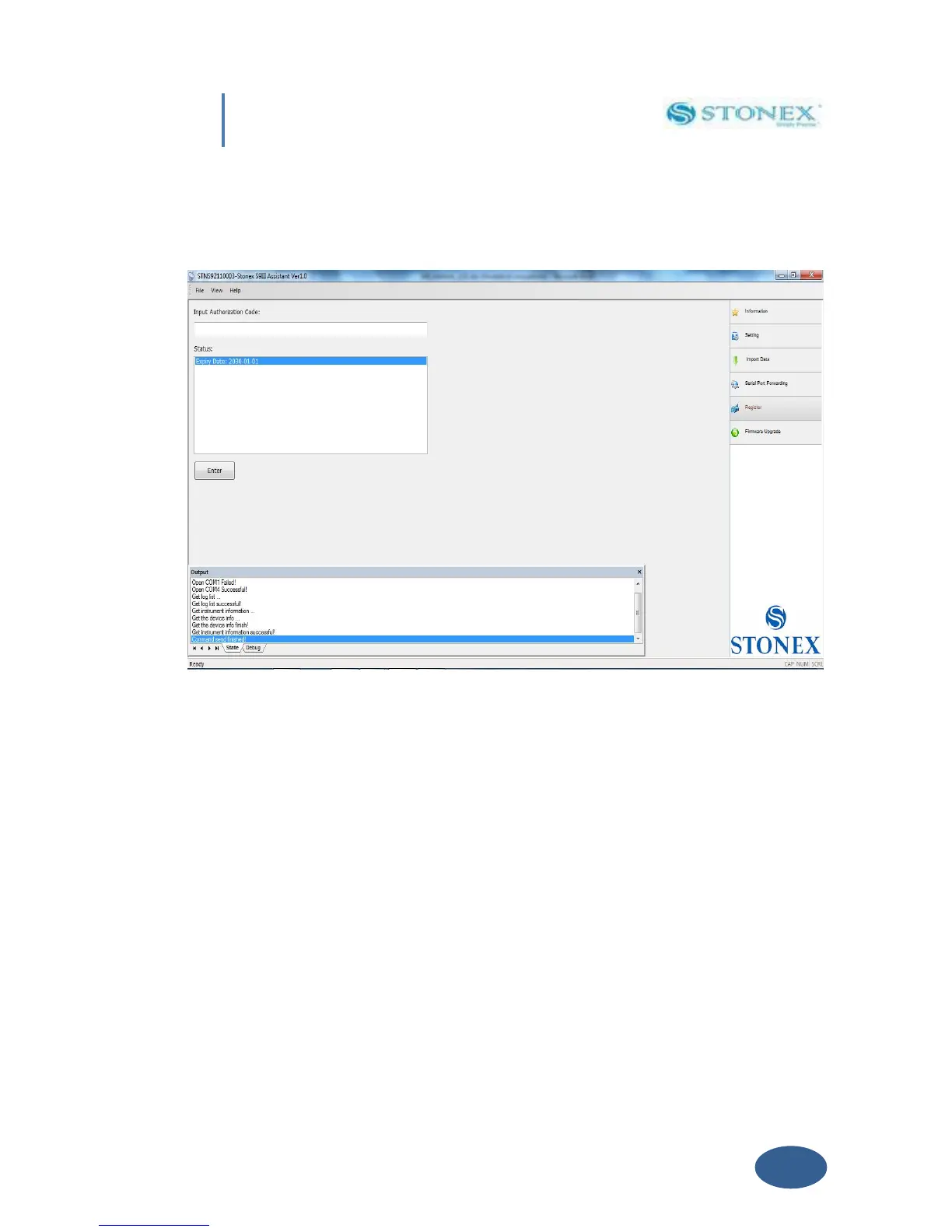

Fig. 5.18 –Register the receiver
V.6 Firmware update
Click the” Upgrade” button to select the location of the folder where the update firmware is
located. Then select the firmware file and automatically it will be downloaded into the receiver.

STONEX S9III GNSS Specifications

General

Type	GNSS Receiver
GPS	Yes
GLONASS	Yes
Galileo	Yes
BeiDou	Yes
QZSS	Yes
SBAS	Yes
RTK Accuracy Horizontal	8 mm + 1 ppm
RTK Accuracy Vertical	15 mm + 1 ppm
Static Accuracy Horizontal	3 mm + 0.5 ppm
Static Accuracy Vertical	5 mm + 0.5 ppm
Data Recording Rate	Up to 20 Hz
Battery Life	Up to 10 hours
IP Rating	IP67
Communication	Bluetooth
Operating Temperature	-40°C to +65°C
Initialization Time	< 10 s
