INSTALLATION INSTRUCTIONS

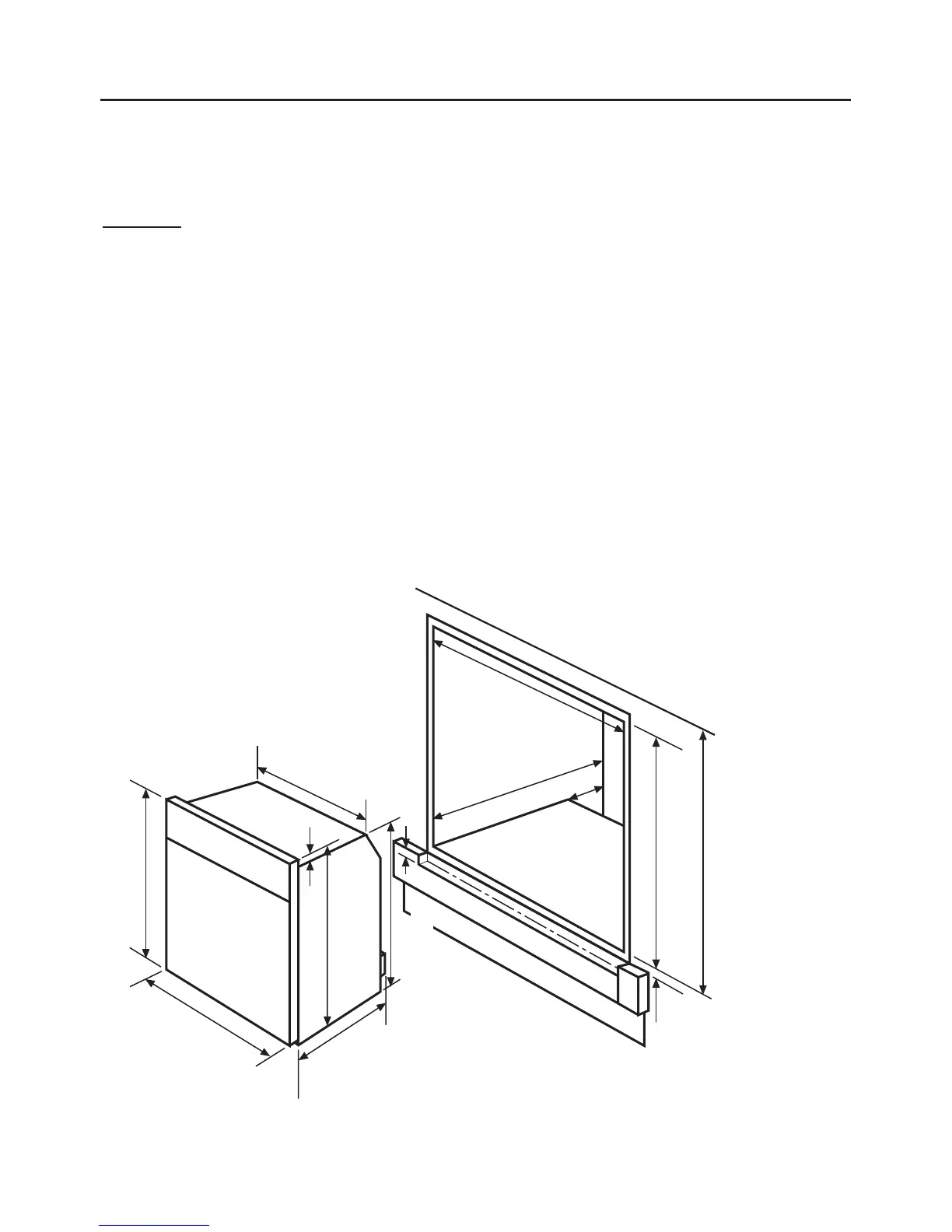

Housing dimensions
The appliance is designed to fit into a
standard 600mm wide housing unit with
minimum internal dimensions as shown.
591mm is to the underside of the
worktop when the appliance is built
under, or to the underside of the panel
above, when the appliance is installed
into a tall housing unit.
Please note that all dimensions are
nominal - some variation is to be
expected.
Ensure that you route all mains
electrical cables and flexible tubing
well clear of any adjacent heat source,
such as an oven, grill or hob.
Ensure that all pipe work is of the
correct rating for both size and
temperature.
Installing a hob above the oven
Where the appliance is installed under
a worktop, with a hob installed above
it, the installation instructions for the
hob must be read in conjunction with
these instructions.
