STOVES Q720GRF DO - Method 3: Installation in High Height Housing Units

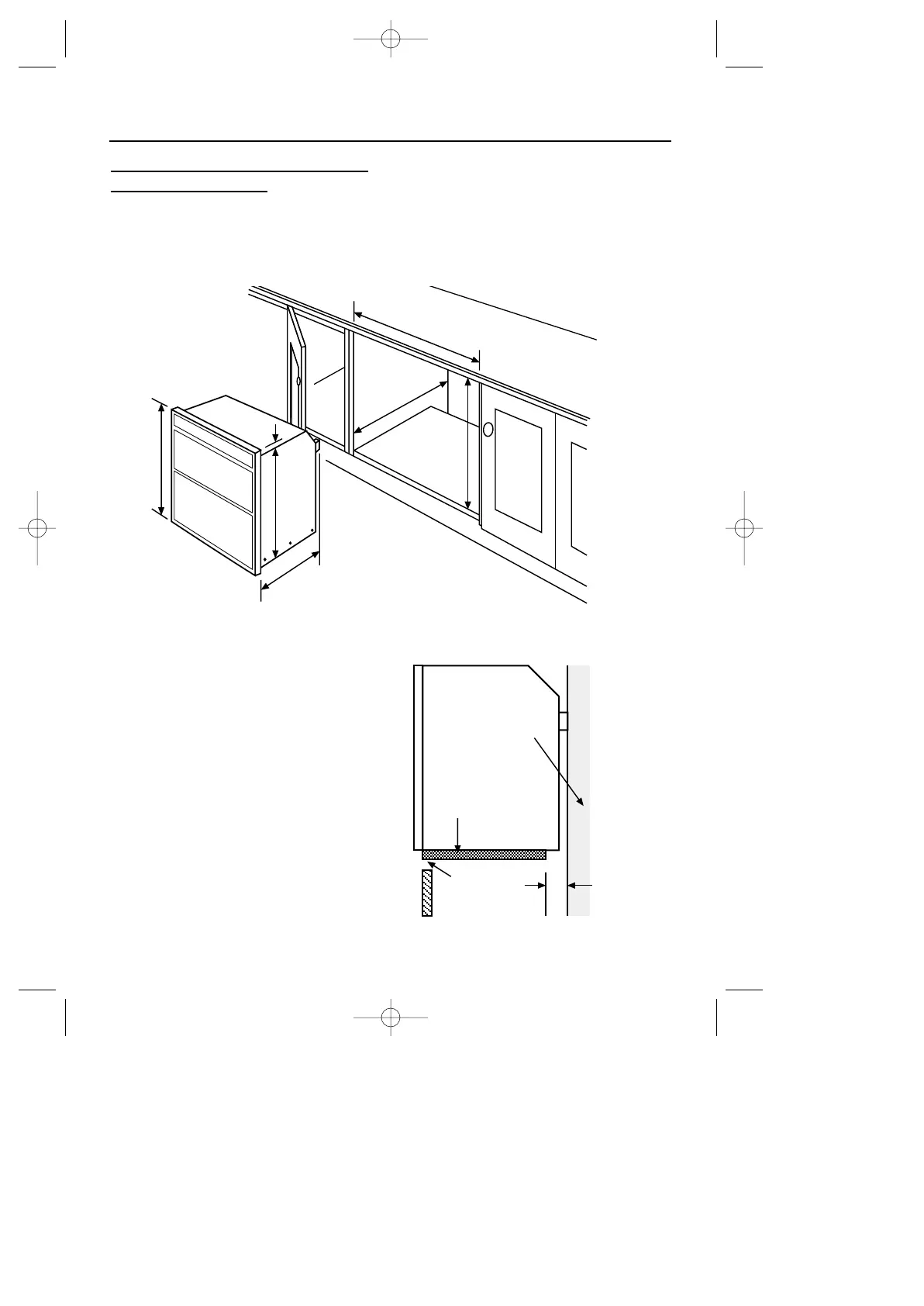

Method 3: Housing unit with internal
height 710mm or more
Note: You will not need the 4 runners
and 2 trims that are packed with the
oven for this installation.
Remove any fixings that may prevent
entry of the oven into housing, or
obstruct the gas inlet pipe. The
cabinetry should be kept structurally
sound by fixing to adjacent cabinets,
floor or worktop.
22
560 - 570 mm
min
570 mm
min
710
mm
550 mm
697
mm
9 mm
712
mm
support
shelf
Min 30 mm gap required
at back of support shelf
This space behind
the appliance to
be kept clear
Rear wall
12 mm air
gap in top
of plinth
1. When installed in a typical
600mm deep built in housing unit,
the false back should be removed
from the housing unit to provide
the necessary depth for installation.
2. When the false back is removed,
it is normally the case that the
support shelf for the appliance
leaves a gap between the back edge
and the wall of approximately
80mm.
3. If no gap occurs between the back
edge of the shelf and the wall
behind the unit, you must create a
gap of at least 30mm by
shortening the shelf.
INSTALLATION INSTRUCTIONS
