15.Programmer / clock
a. Remove appliance from housing.
b. Remove top panel.
c. Remove facia glass.
d. The clock can now be disconnected
and disengaged by cutting through
the adhesive tape.
16.Solenoid block
a. Remove appliance from housing.
b. Remove top, rear and right side panels.
c. Disconnect three compression pipe
connections.
d. Disconnect electric socket from the
control board.
e. Remove 4 screws from side of appli-
ance securing the block.
17.Pressure switch
a. Remove appliance from housing.
b. Remove top and rear panels.
c. The pressure switch can now be
disconnected and the two securing
screws removed.
Note: Ensure that the pressure tubing
is pushed securely through the hole
into the side cavity when replacing.
19.Door seal
a. Pull off the old seal.
b. Slacken screws in the stainless steel
flue cover at the front of the oven/grill
roof to ease insertion of the seal.
c. Partly open the door to obtain best
access for the seal all around the
oven/grill.
d. Locate the middle of the new seal and
start to push into place at the middle of
the bottom edge of the oven/grill cavity.
e. Make sure the narrow gap goes to the
inside, and locates onto the oven cavity.
f. Do not stretch the seal.

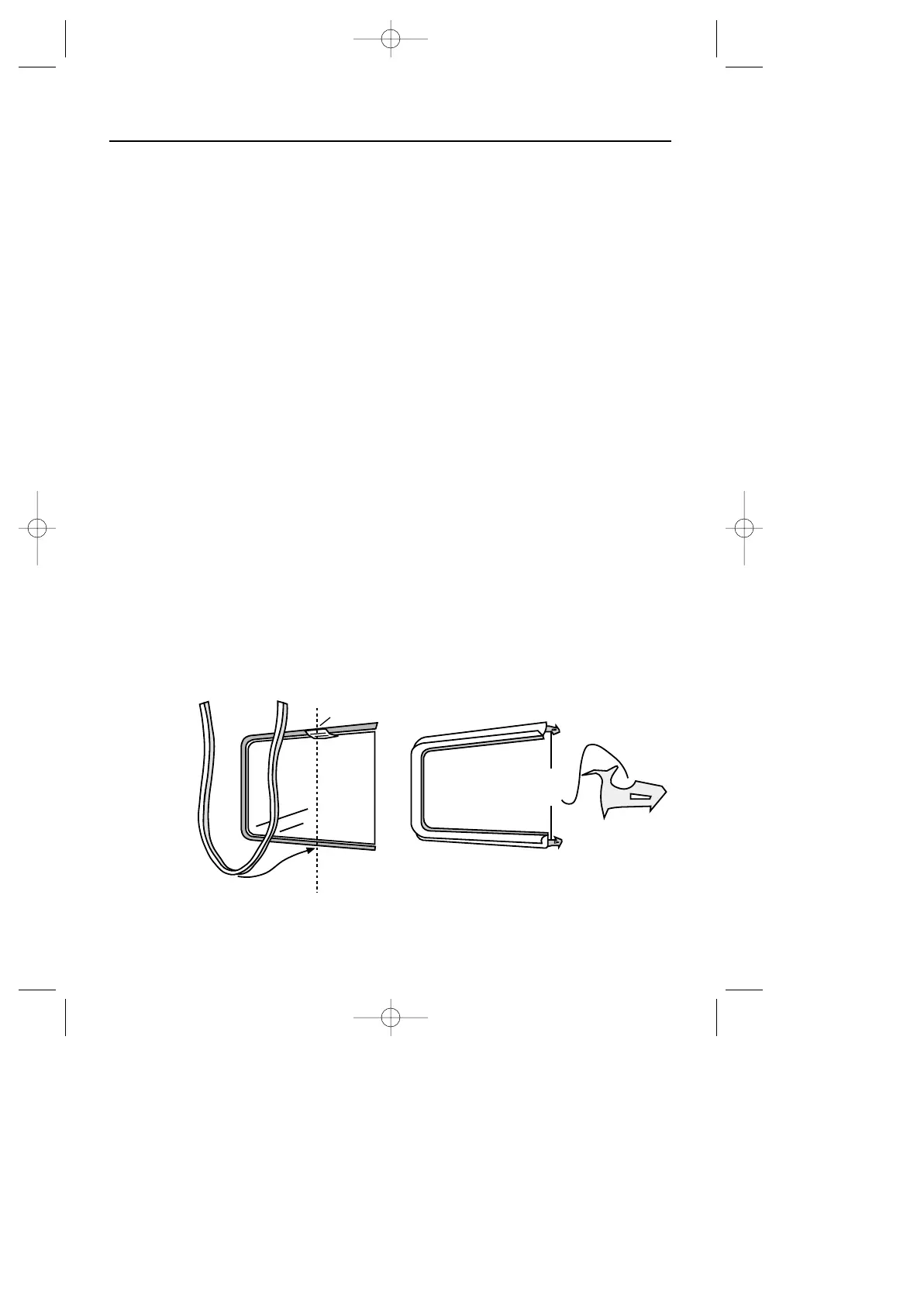

g. Make sure the seal is fitted correctly as
shown, and cut to fit.
h. Re-tighten the screws in the flue cover.
35
