Appendix A
Control Input
The DMX512 input will accept a multiplexed digital control signal which conforms to
USITT specification DMX512 (1990). Details of this specification are available from
USITT on request.

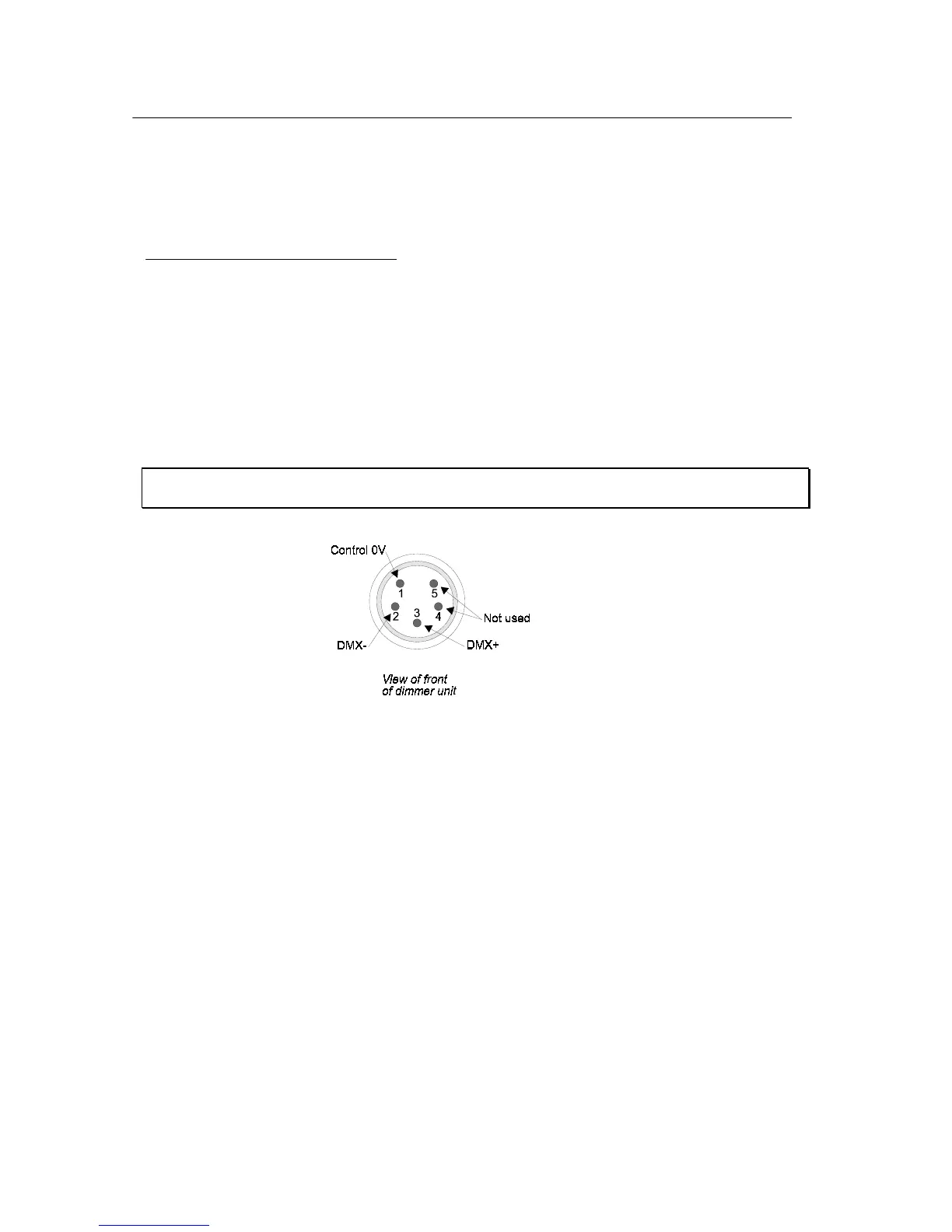

The control input is via a five-pin male XLR type connector. Pin connections are
shown in Figure 9. A five-pin female XLR connector is also fitted to allow a series of
SD 6 packs (or other DMX equipment) to be connected together in ‘daisy chain’
fashion.
It is recommended that Control connections are not plugged or unplugged when power is applied to
the dimmer pack as this may cause any connected loads to flash up momentarily.
