Strapex STB 65
4.4 BATTERY CHARGER
The battery charger (IFC1702dx) is a special device
with both charging and discharging functions for maxi-
mum battery power and life.
– When a battery is placed in the charger, the remai-
ning charge level is tested fi rst. If the battery is not
completely discharged, the charger will fi rst empty it.
– After discharging, the battery charger switches auto-
matically to charge. The battery will be fully charged
in four steps by the pulse charging technique.
Battery discharging time: approximately 15 minutes
with discharged battery from
strapping machine
Battery charging time: 14.4 V/2.4 Ah
> +/- 60 minutes
No indicator
illuminated
Continuous
orange light
Flashing
orange light
Flashing
green light
Continuous
green light

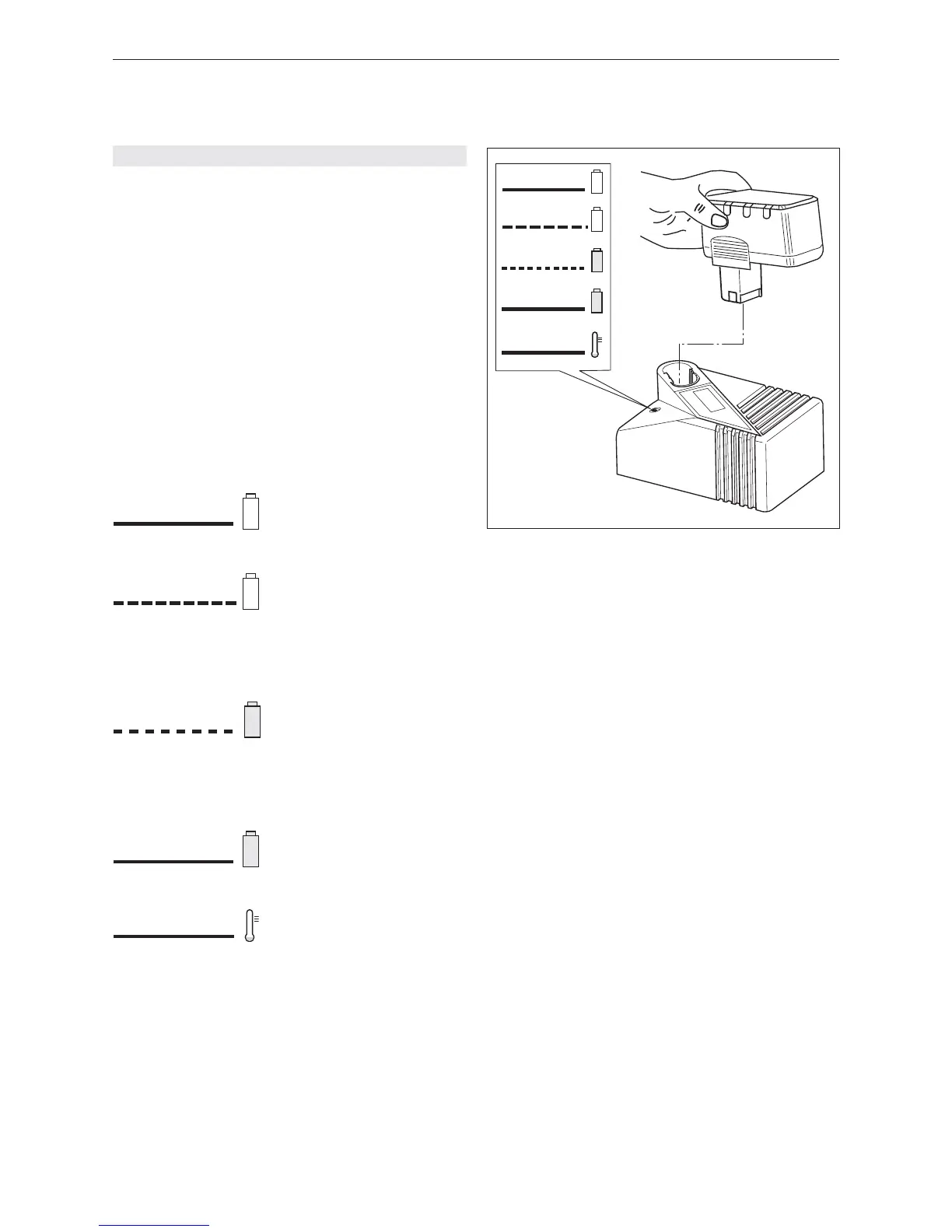

Battery charger indicators:
Ready for charging
Mains supply is connected.
Battery not inserted or inter-
rupted (defective).
Discharging
Discharging runs until the
minimal Cell-voltage has
been achieved. The appli-
ance then automatically
switches to th charching
state.
Rapid charging
Rapid charging operates
until the battery is fully re-
charged. The battery char-
ger then switches automati-
cally to toppic- and trickle
charging.
Trickle charging
Battery is fully charged.
The battery charger is deli-
vering only a trickle charge.
Temperature
Warning: the battery is too
hot (or too cold). Trickle
charging only.
The battery charger swit-
ches automatically to rapid
charging when the tempera-
ture is within the permitted
range again.
Mains supply not connected:
electrical plug, cable or
battery charger defective.
Continuous
orange light
Fig. 4
