User Manual for X7-E1608
For more information, please visit our website www.en.streamaxtech.com
17

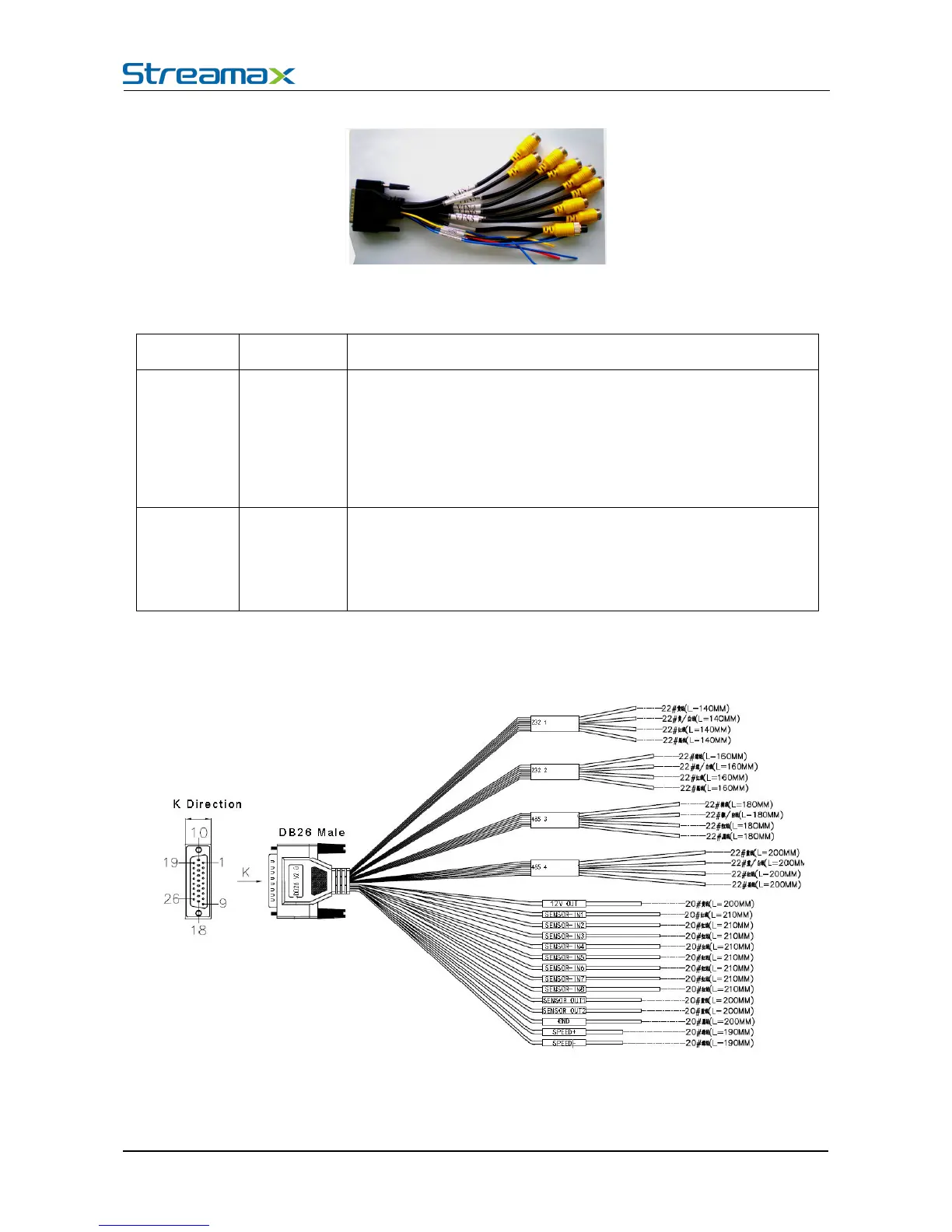

Definition and interface of DB44
DB44
Definition of DB44
Interface Name Description
Audio/Video
Input
VIN1~VIN8
The port is Aviation Male. There are 4 audio/video inputs of a
4-channel MDVR, while there are 8 audio/video inputs of a
8-channel MDVR, Pin1 with 12V power output, pin2 with GND, pin3
with audio input, pin4 with video input.
Audio/Video
Output
AV OUT
The port is Aviation Female, audio/video output, pin1 with 12V
power output, pin2 with GND, pin3 with audio input, pin4 with video
input.
2.4.2. DB26 CABLE
