User Manual for X7-E1608
For more information, please visit our website www.en.streamaxtech.com

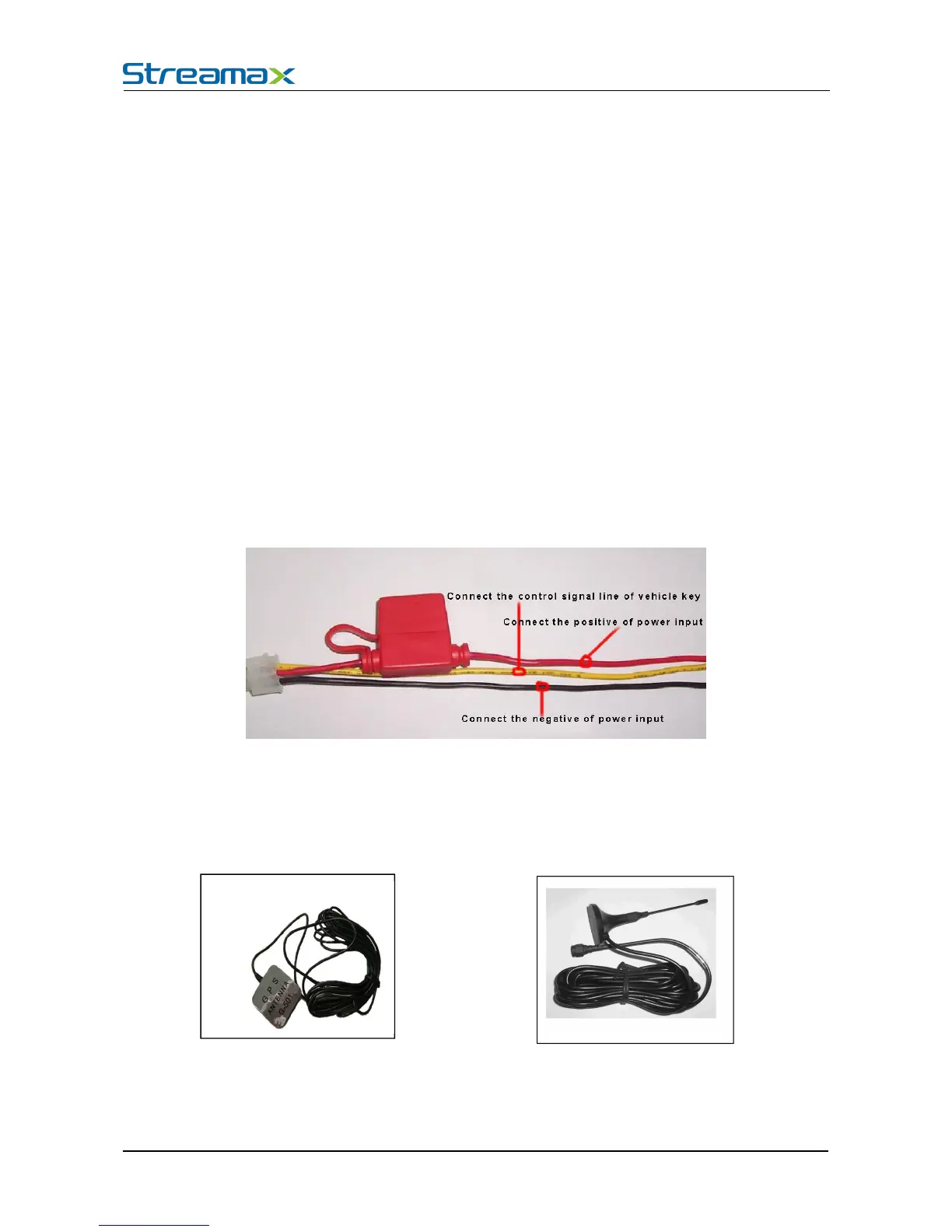

Below is a power cable, one end is 4PIN white connector which can be insert into the back panel
of MDVR. Red cable and black cable can be connected with the battery of vehicle; red cable is “+”, black
is “–”, yellow is ignition. MDVR will start to work automatically when you turn on the engine, it switches
off when you turn off the engine. The yellow cable should be connected with the key which is related with
the dash board.
Attention：
1) Make sure the voltage is 12V to 36 V before you connect the MDVR to the battery, otherwise, the
MDVR will be damaged by the power which is higher than 36V.
2) Pay attention to the insulation of the wires to avoid short circuit.
3) Yellow cable much be connected with the engine, otherwise, the MDVR will not support the feature
for shut-down delay, which will result in video loss.
Power cable
2.4.4. GPS AND GPRS ANTENNA
