Streamax X7-E1608 - Main Stream Settings; Dual Stream Settings; Sub-stream Settings

User Manual for X7-E1608
For more information, please visit our website www.en.streamaxtech.com
40
supports 720P

Frame Rate: Frame Rate of the record

Picture Quality: Picture Quality of the record

Record Type: Ignition, Time, Event optional. Each channel can be set separately. The
sub-stream and mirror record are the same

Audio: Enable the audio. Note: Audio can not be record separately

I frame only without alarm: Enable to let the frame rate invalid, record file is I frame only


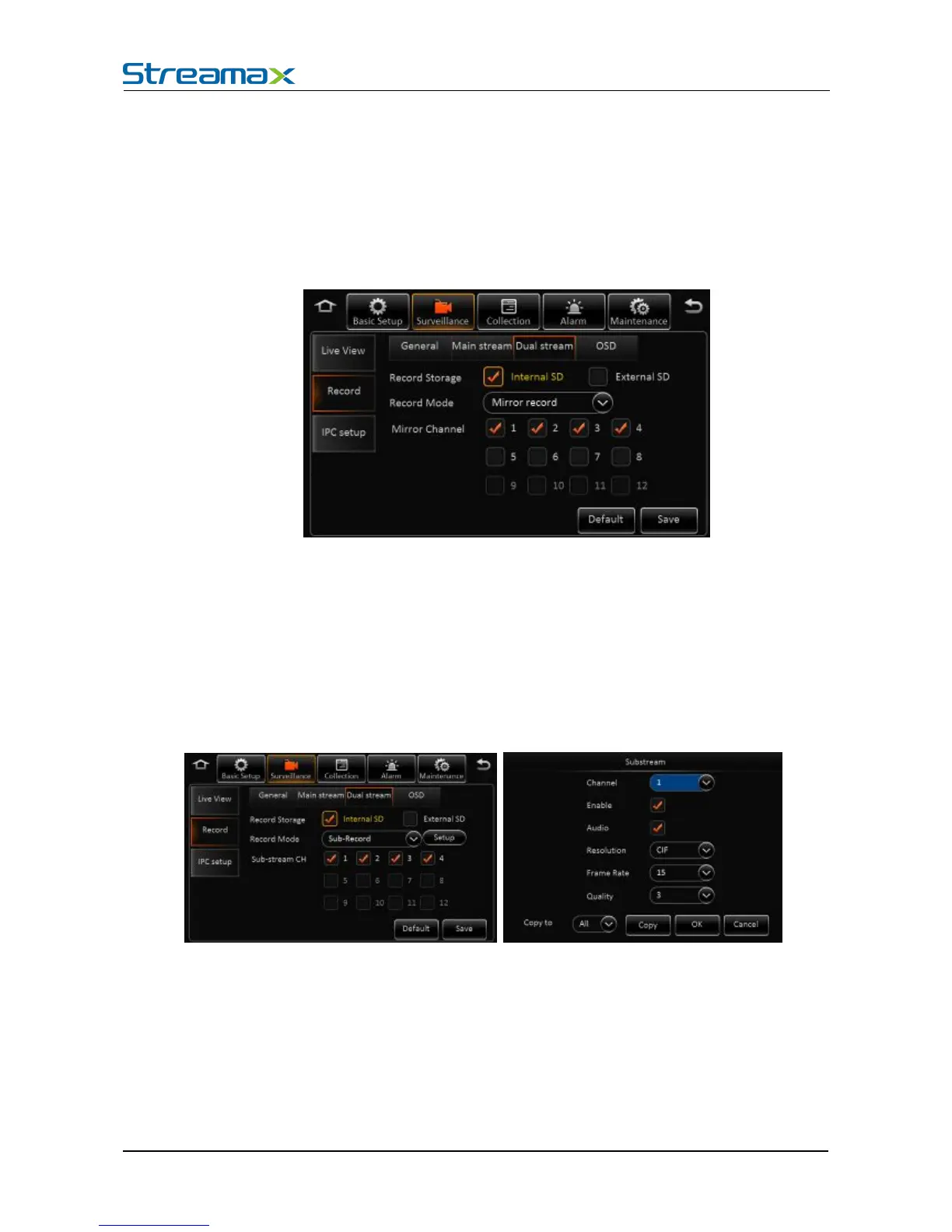

Record- Dual stream

Storage: The storage type for second stream, internal SD, or external SD

Record mode:Mirror record, alarm back-up, and sub stream
Mirror record: Channel is selectable. Video resolution and frame rate are the same with main
stream.
Alarm backup: Channel is selectable. The parameters are the same with main stream
Sub-stream: Channel is selectable. Recording parameters are configurable

Mirror channel: It is selectable according record mode

Dual stream-Sub-stream
Parameters includes channel number, enable or not, audio, resolution, frame rate and image quality
Can’t record I frame only, record parameters is completely separated from main stream.
Remark:
Main stream +sub-stream total resource can’t over 12M
